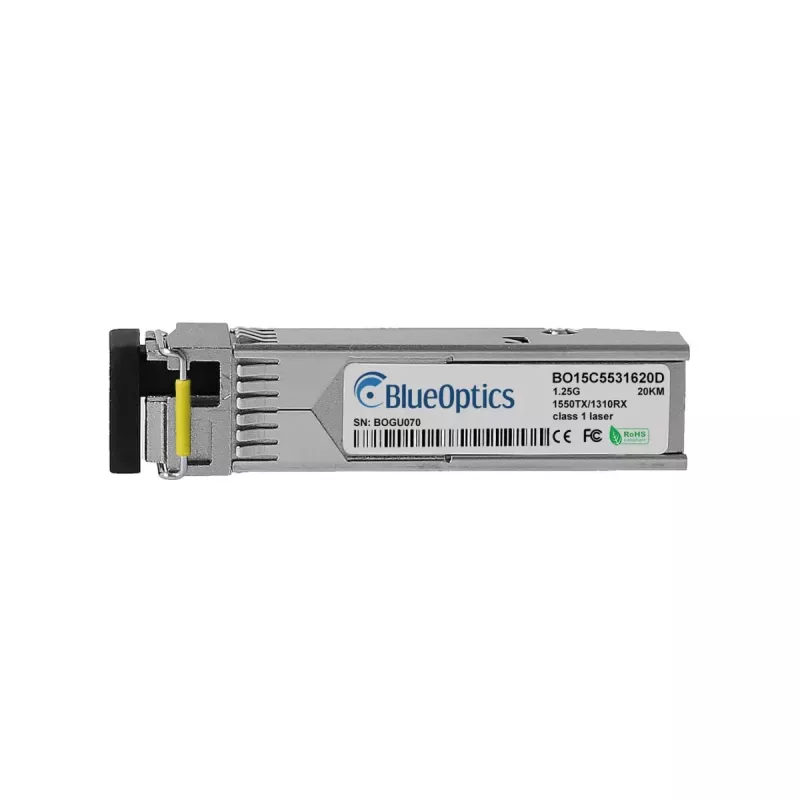

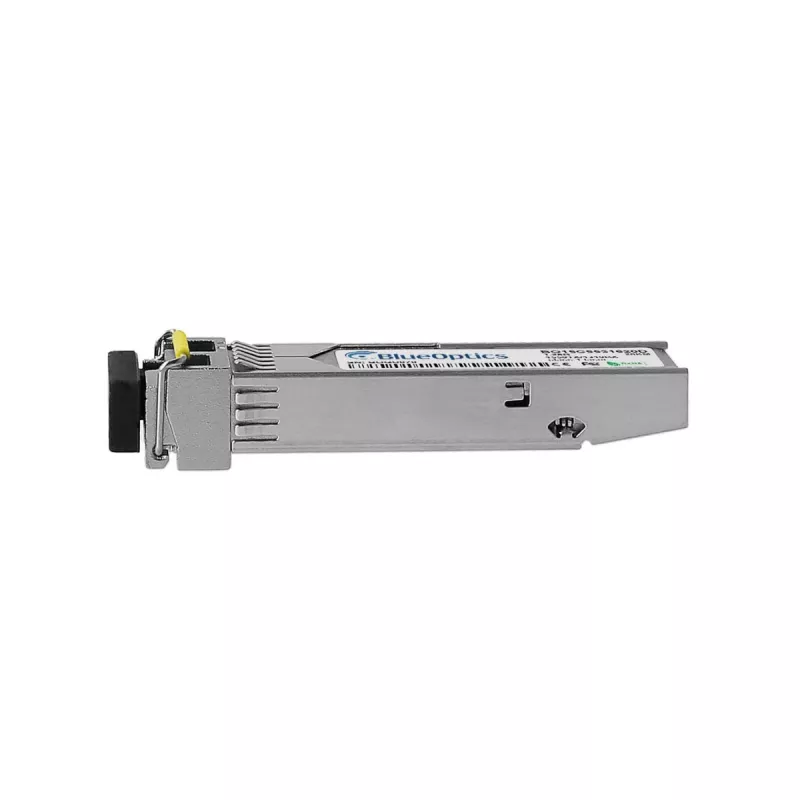

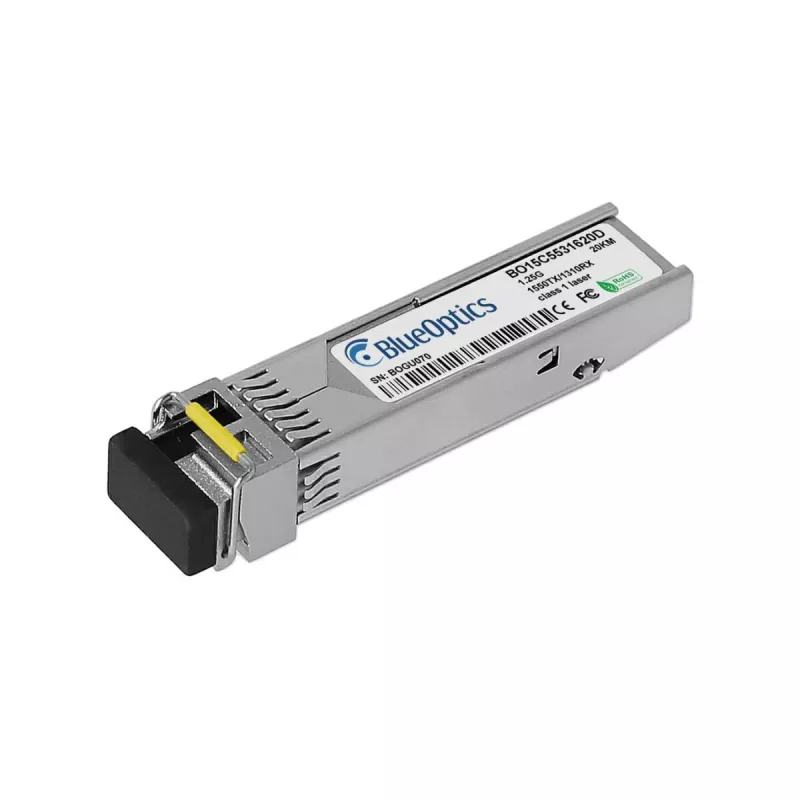

BlueOptics TP-Link ISM321A-20 Transceptor SFP Compatible, 1000BASE-BX-D, LC-Simplex, SMF, TX1550nm/RX1310nm, 20 km

The BlueOptics ISM321A-20 compatible SFP transceiver is a high-performance, cost-effective solution designed for Gigabit Ethernet applications. It operates on single-mode fiber (SMF) with a BiDi (Bi-directional) LC-Simplex connector, transmitting at 1550nm and receiving at 1310nm, supporting distances up to 20km. This module is fully MSA compliant and hot-pluggable, ensuring seamless integration with TP-Link ISM321A-20 and other MSA-compliant SFP ports.

Advantages

This transceiver offers reliable, high-speed data transmission with low power consumption and digital diagnostic monitoring (DDM) for real-time performance tracking. Its BiDi technology reduces fiber infrastructure costs by using a single fiber strand for both transmit and receive. The commercial temperature range (0°C to 70°C) makes it suitable for most indoor environments.

Suitable for

• Gigabit Ethernet networks requiring long-distance single-mode fiber connections
• ISP and enterprise network upgrades
• Point-to-point and passive optical network (PON) applications
• Replacing or expanding existing TP-Link ISM321A-20 deployments

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-BX-D
• Connector: LC-Simplex
• Fiber Type: Single-mode (OS2)
• Wavelength: TX 1550nm / RX 1310nm
• Maximum Distance: 20 km
• BiDi: Yes
• DDM: Yes
• Hot-Pluggable: Yes
• MSA Compliant: Yes
• Operating Temperature: 0°C to 70°C
• Power Supply: 3.3V
• Laser Type: DFB Laser
• Receiver Type: PIN Photodiode

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is compatible with any MSA-compliant SFP slot, including TP-Link, Cisco, Juniper, and other major brands.
