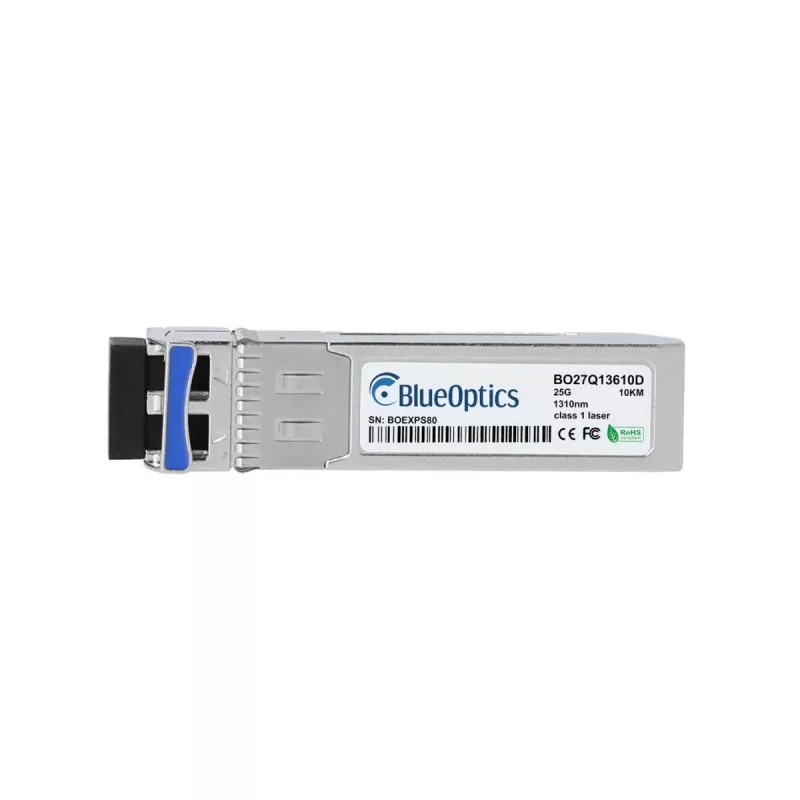

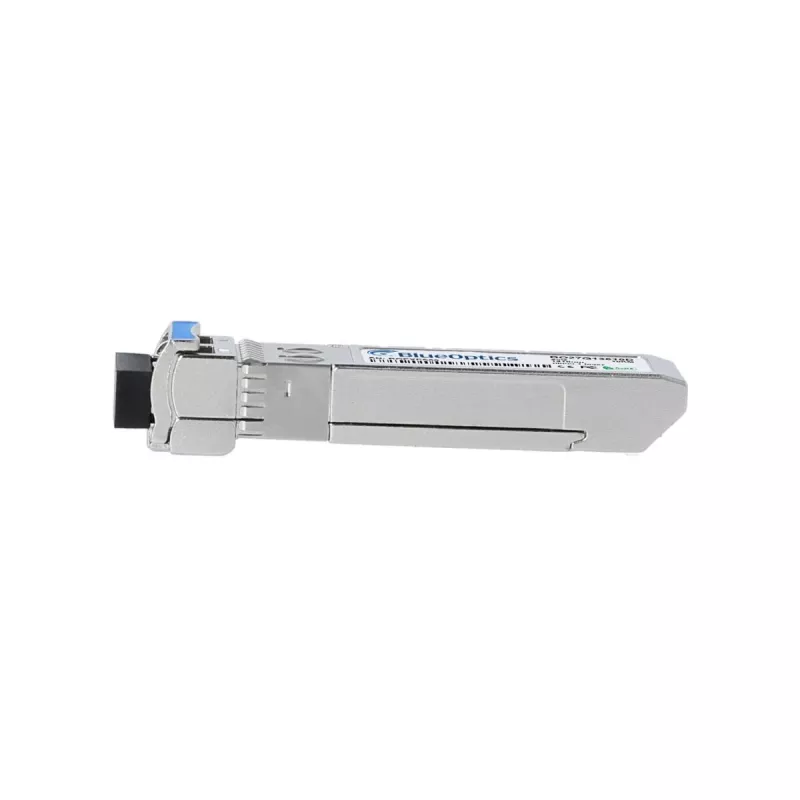

BlueOptics TP-Link SM6110-LR BlueOptics transceptor SFP28, 25GBASE-LR, fibra monomodo, 1310nm, 10KM

The BlueOptics SM6110-LR is a high-performance SFP28 transceiver designed for 25 Gigabit Ethernet applications. It provides reliable connectivity over singlemode fiber at distances up to 10 km, making it ideal for data center and enterprise network deployments.

Advantages

This transceiver offers low power consumption (<1.5 W), hot-pluggable design, and full MSA compliance, ensuring seamless integration with TP-Link SM6110-LR compatible equipment. It supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• 25GBASE-LR compliant applications
• Singlemode fiber optic networks

Key specifications

• Transceiver Type: SFP28
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-LR
• Wavelength: 1310 nm
• Fiber Type: Singlemode (OS2)
• Max Distance: 10 km
• Connector: LC Duplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.5 W
• Laser Type: DFB
• Receiver Type: PIN
• Supply Voltage: 3.3 V

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure compatibility with your network equipment. This transceiver is a cost-effective alternative to OEM modules.
