Transceptor de fibra óptica CBO 3CSFP92-BO LC LX 1000 Mbit/s 10000 m

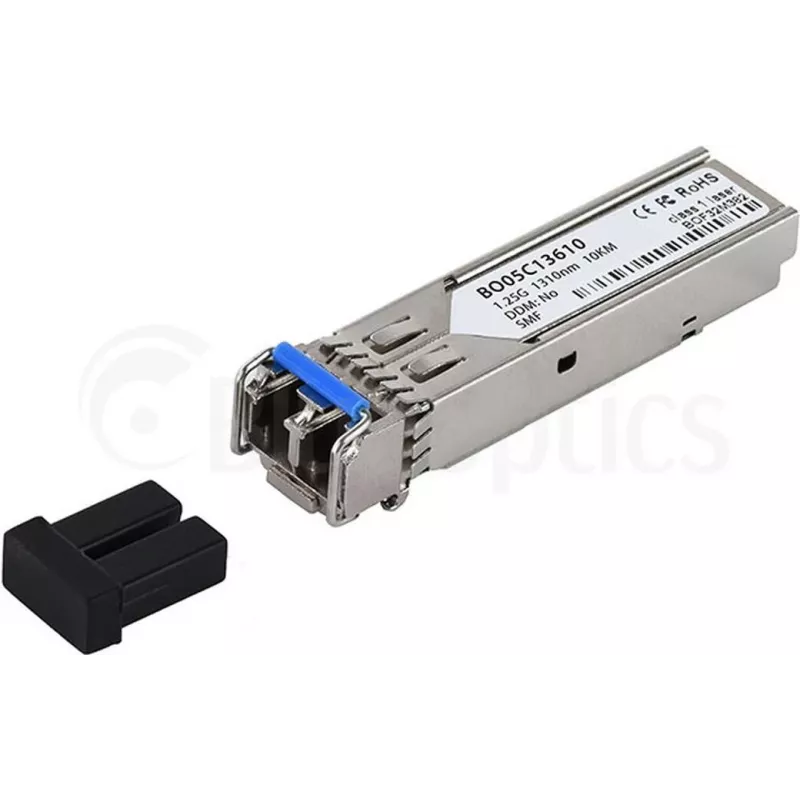

The BlueOptics CBO 3CSFP92-BO LC LX fiber optic transceiver is a single-mode SFP module designed for 1 Gbit/s (1000 Mbit/s) links with an LC connector and LX wavelength. It supports optical transmission distances up to 10,000 m, making it suitable for long-reach Gigabit Ethernet connections, uplinks between switches and routers, and backbone segments in telecom and data center environments. The module complies with standard SFP form-factor dimensions and interoperates with network equipment that accepts SFP optical modules for single-mode LX operation.

Advantages

The transceiver provides a stable 1 Gbit/s data rate over single-mode fiber with LX wavelength characteristics and an LC duplex interface. Its long-reach capability (up to 10 km) enables consolidation of network segments without additional repeaters, reducing cabling complexity. The SFP form factor allows hot-swappable installation in compatible ports, enabling flexible upgrades and maintenance without powering down equipment.

Suitable for

• Gigabit Ethernet uplinks between switches and routers
• Long-distance single-mode fiber links in enterprise networks
• Backbone connections in data centers and telecom access networks
• Inter-building links across campuses or industrial sites

Key specifications

• Data rate: 1000 Mbit/s (1 Gbit/s)
• Fiber type: single-mode fiber (SMF)
• Connector type: LC duplex
• Operating wavelength: LX-class wavelength suitable for long-reach single-mode
• Maximum reach: up to 10,000 m (10 km) over single-mode fiber
• Form factor: SFP (small form-factor pluggable), hot-swappable

How to use

Insert the SFP transceiver into an SFP-compatible slot on a switch, router or media converter while the host device is powered on to take advantage of hot-swappable capability. Connect LC duplex single-mode fiber patch cords to the transmit and receive ports, observing correct polarity. Configure the network port on the host device for 1 Gbit/s operation if auto-negotiation is not enabled. Monitor link status using the host equipment’s management interface or LEDs to confirm operational state.

Recommendations

Use single-mode fiber with appropriate attenuation and connectors, keep fiber connectors clean and protected with dust caps when not in use, and verify link budget for the required distance. For best compatibility, install the transceiver in equipment that supports standard SFP LX modules and follow vendor guidance for firmware or compatibility lists when applicable.
