BLUEOPTICS Transceptor QSFP28 compatible con Evertz Scorpion QSFP25G-SM-PSM4-LR-G-NFEC, conector MPO/MTP, 100GBASE-PSM4, fibra monomodo, 4xWDM, 10 km, 0°C/+70°C, DDM

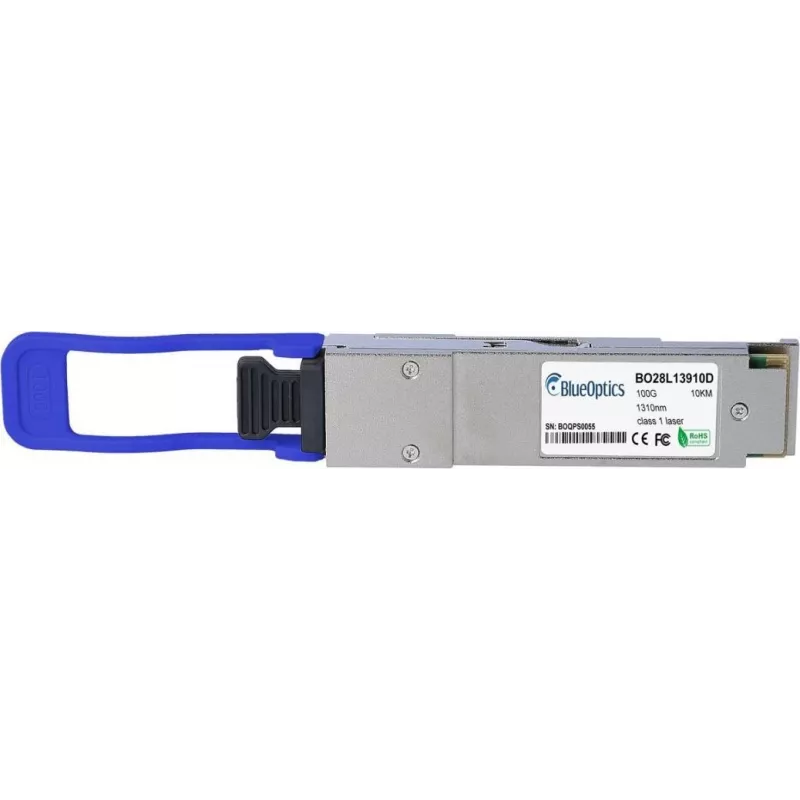

The BLUEOPTICS QSFP25G-SM-PSM4-LR-G-NFEC-BO is a high-performance QSFP28 transceiver designed for compatibility with Evertz Scorpion systems. It supports 100GBASE-PSM4 standard over singlemode fiber, utilizing 4xWDM parallel optics to achieve distances up to 10 km. With MPO/MTP connector and DDM functionality, this module is ideal for data center and enterprise networks requiring reliable 100 Gbps connectivity.

Advantages

This transceiver offers cost-effective, high-speed connectivity with full compatibility for Evertz Scorpion platforms. Its hot-pluggable design and low power consumption ensure easy integration and energy efficiency. The built-in DDM provides real-time monitoring of optical parameters for proactive network management.

Suitable for

• Evertz Scorpion systems
• 100GBASE-PSM4 networks
• Data center interconnects
• Enterprise backbone links

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Standard: 100GBASE-PSM4
• Fiber Type: Singlemode (OS2)
• Max Distance: 10 km
• Connector: MPO/MTP (12-fiber)
• Wavelength: 4x 1310 nm
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Compatibility: Evertz Scorpion

Recommendations

For optimal performance, use with singlemode MPO/MTP patch cables and ensure proper cleaning of connectors. Verify compatibility with your Evertz Scorpion system before installation.
