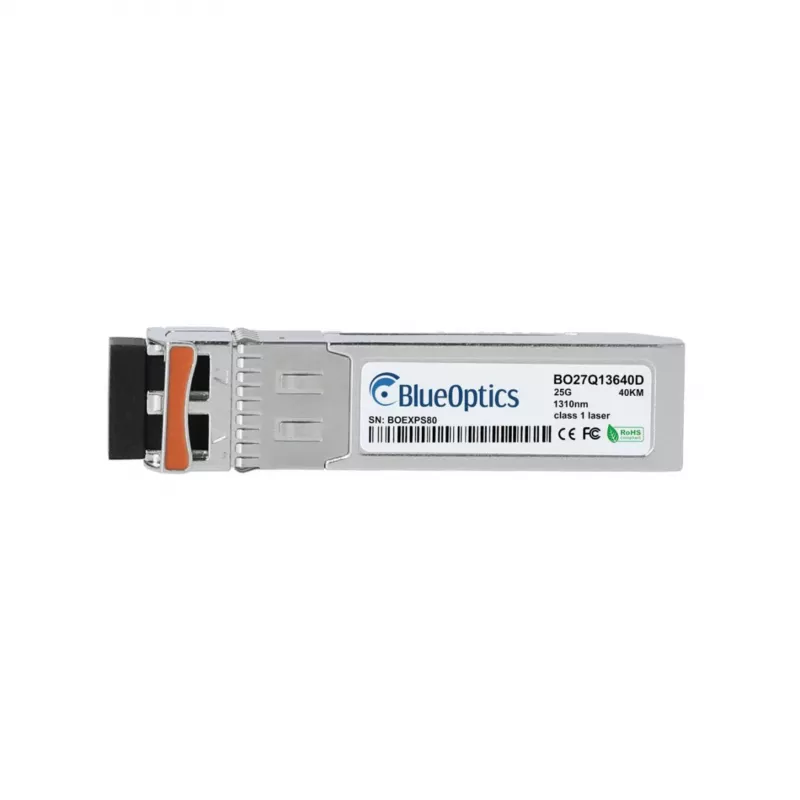

BLUEOPTICS Transceptor SFP28 compatible con TP-Link SFP28-25G-ER, 25GBASE-ER, Monomodo 1310nm, 40km, DDM, 0°C a +70°C

The BLUEOPTICS SFP28-25G-ER-TL-BO is a high-performance SFP28 transceiver designed for 25 Gigabit Ethernet applications. It is fully compatible with TP-Link SFP28-25G-ER equipment and delivers reliable connectivity over singlemode fiber at distances up to 40 km. This hot-pluggable module features a 1310 nm EML laser, digital diagnostics monitoring (DDM), and operates in a temperature range of 0°C to +70°C.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility. Supports high-speed data transmission at 25 Gbps with low power consumption under 1.5 W. Built-in DDM allows real-time monitoring of optical parameters for network optimization.

Suitable for

• 25 Gigabit Ethernet networks in data centers and enterprise environments
• Long-haul singlemode fiber links up to 40 km
• TP-Link switches and routers with SFP28 ports

Key specifications

• Form Factor: SFP28
• Data Rate: 25 Gbps
• Protocol: 25GBASE-ER
• Wavelength: 1310 nm
• Max Distance: 40 km
• Fiber Type: Singlemode (SMF)
• Connector: LC Duplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to +70°C
• Power Consumption: <1.5 W
• Transmitter: EML Laser
• Receiver Sensitivity: -23 dBm
• Optical Power (Tx): 0 to +5 dBm
• Compliance: MSA Compliant, IEEE 802.3cc

Recommendations

For optimal performance, use with singlemode fiber (OS2) and ensure proper cleaning of connectors. This transceiver is ideal for upgrading existing 10G links to 25G without replacing fiber infrastructure.
