BOARD MET ST6 830 800X600X300MM IP66 GRIS

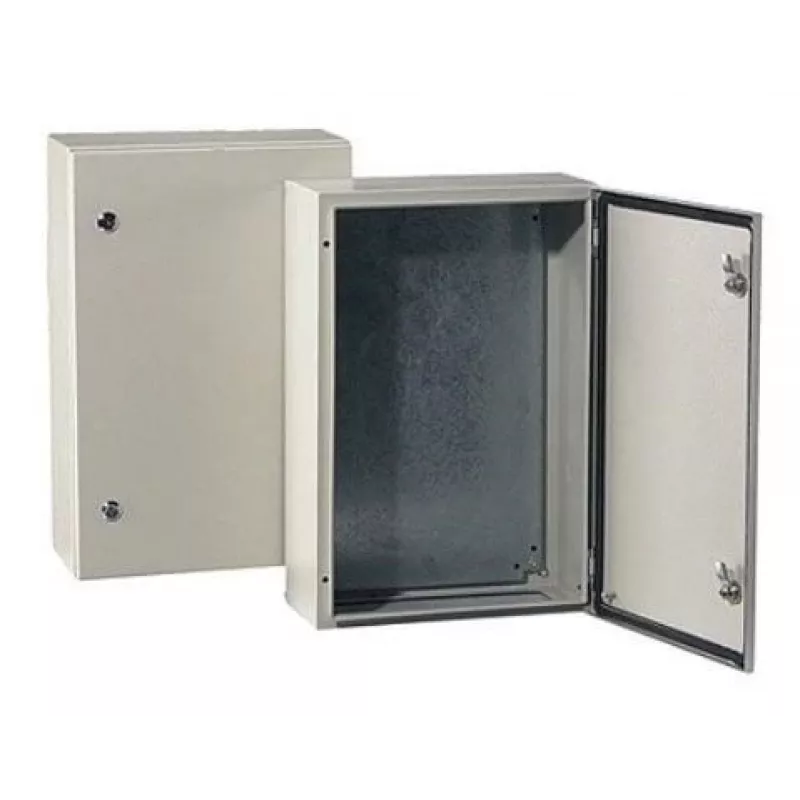

The BOARD MET ST6 830 is a robust wall-mounted enclosure designed for industrial electrical control, automation, and distribution applications. Manufactured from high-quality mild steel with a powder-coated finish in RAL 7035 light grey, this enclosure offers excellent corrosion resistance and durability. With an IP66 protection rating, it is dust-tight and protected against powerful water jets, making it suitable for harsh environments.

Advantages

This enclosure provides reliable protection for sensitive electrical components. Its single-door design with a double-bit 3mm lock ensures security, while the included wall mount brackets simplify installation. The internal mounting plate (galvanized steel) and bottom gland plate with gasket are included, reducing additional procurement needs. The polyurethane gasket maintains a tight seal, and the door opens 130 degrees for easy access.

Suitable for

• Industrial electrical control panels
• Automation systems
• Power distribution units
• Outdoor or washdown environments requiring IP66 protection

Key specifications

• Enclosure Type: Wall Mounted
• Material: Mild Steel
• External Dimensions: 800 x 600 x 300 mm (H x W x D)
• IP Rating: IP66
• Colour: RAL 7035 Light Grey
• Door Configuration: Single Door
• Lock Type: Double-bit 3mm
• Mounting: Wall Mount Brackets (included)
• Internal Mounting Plate: Included (Galvanized Steel)
• Gland Plate: Included (Bottom, with gasket)
• Material Thickness: Body 1.2 mm, Door 1.5 mm
• Surface Finish: Powder Coated
• Gasket Material: Polyurethane
• Door Opening Angle: 130 degrees
• Standards: IEC 62208, EN 60529

Recommendations

For optimal performance, ensure the enclosure is mounted on a flat, sturdy wall using the provided brackets. Verify that all cable entries are properly sealed to maintain the IP66 rating. This enclosure is ideal for applications where dust and water ingress must be prevented.
