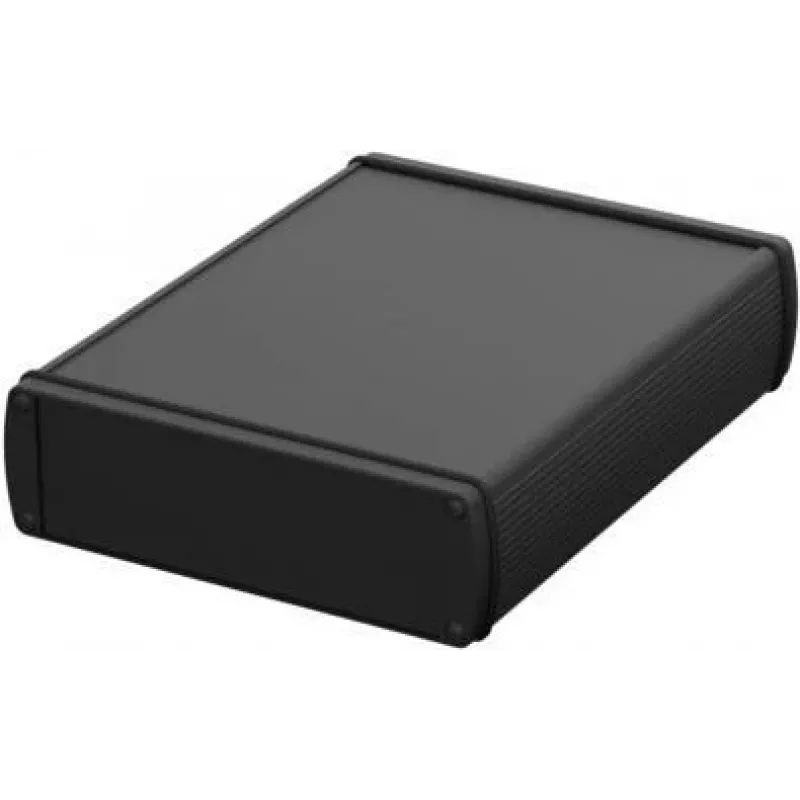

Bopla ABPH 1600-0200 ALUBOS_SET 84166200.HMT1 carcasa universal 169 x 200 x 52 mm aluminio negro RAL 9005

For industrial control systems and measurement technology, the Bopla ABPH 1600-0200 ALUBOS_SET provides a robust aluminium housing with a screw-on lid and silicone gasket. The black powder-coated finish (RAL 9005) offers a professional appearance and durability in demanding environments.

Key specifications

• External dimensions: 169 mm width x 200 mm length x 52 mm height
• Material: Aluminium
• Colour: Black (RAL 9005)
• Surface finish: Powder-coated
• Lid fastening: Screw-on
• Gasket material: Silicone
• Operating temperature range: -40 °C to +100 °C
• Impact resistance: IK08
• Protection class: IP65
• Included components: Enclosure base, lid, lid screws, sealing gasket

Why choose it

The ALUBOS series combines a lightweight aluminium body with a secure screw-on lid and silicone sealing, making it suitable for housing sensitive electronics in industrial settings. The powder coating provides resistance to corrosion and wear, while the wide temperature range allows use in harsh conditions.

Ideal use cases

• Industrial electronics enclosures
• Control systems
• Measurement technology
• Automation equipment

Good to know

The enclosure is RoHS compliant and comes with all necessary components for assembly. Its IP65 rating ensures protection against dust and water jets, and IK08 impact resistance adds mechanical robustness.
