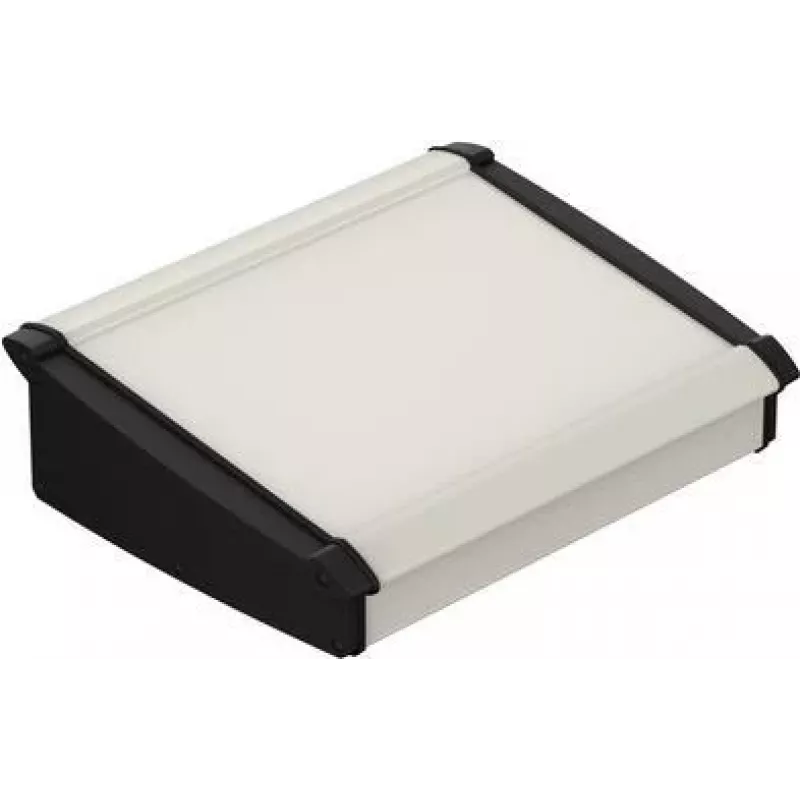

Bopla Alu-Topline ATPH-IP 2385-0265 SET carcasa de perfil 232,60 x 265 x 86,20 aluminio natural 1 ud. 92385265.HMT1

Industrial electronics need a housing that protects sensitive components from dust, moisture, and mechanical stress. The Bopla Alu-Topline ATPH-IP 2385-0265 SET is a profile enclosure made from natural anodized aluminium, offering a robust solution for control systems and electronics in demanding environments.

Who is it for

Engineers and system integrators building industrial control units, measurement devices, or automation systems will appreciate the clean design and solid construction. The enclosure is suitable for desktop or wall mounting, providing flexibility in installation.

Main features

• Profile enclosure from the Alu-Topline series, model ATPH-IP 2385-0265 SET
• Material: aluminium with natural anodized finish (silver colour)
• External dimensions: 232.60 mm length, 265 mm width, 86.20 mm height
• Removable end caps for easy access during assembly and maintenance
• Integrated grooves for PCB mounting inside the enclosure
• EPDM gasket material for reliable sealing
• Operating temperature range: -40 to +80 °C

Specifications

• Brand: Bopla
• Model: 92385265.HMT1
• MPN: 92385265.HMT1
• EAN: 4058545449460
• Product type: Profile enclosure
• Material: Aluminium
• Product colour: Silver
• Width: 265 mm
• Depth: 232.60 mm
• Height: 86.20 mm
• Mounting type: Desktop / Wall mountable

Tips

When selecting an enclosure, verify that the internal dimensions match your PCB and component layout. The removable end caps simplify wiring and testing during development.
