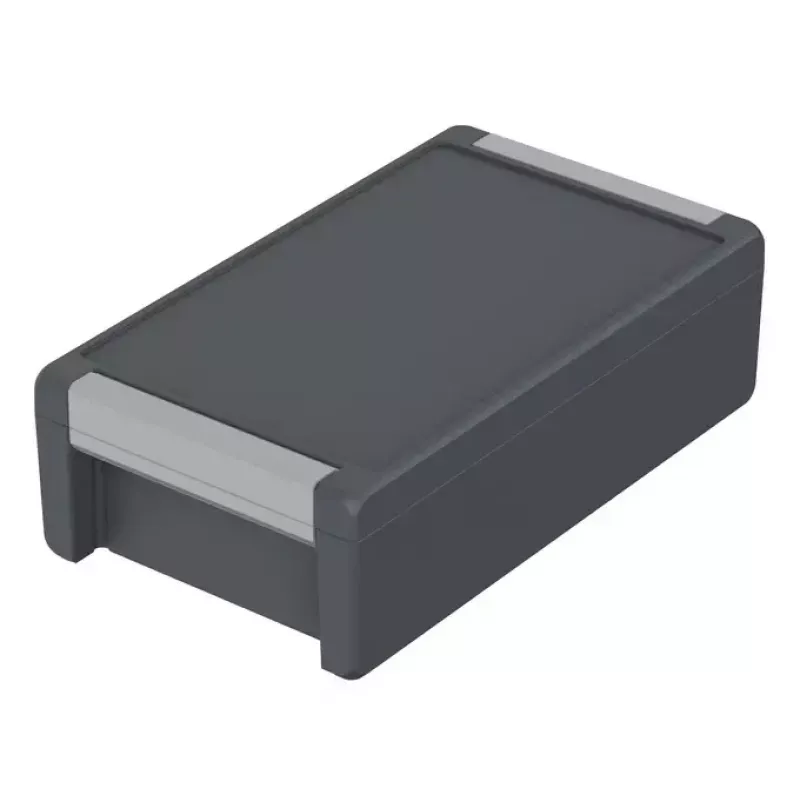

Bopla BA 281709 F-7024 Carcasa universal 299 x 173 x 90 Aluminio Grafito (RAL 7024) 00126334

For electronics integrators and control panel builders, the Bopla BA 281709 F-7024 offers a robust aluminium enclosure with a graphite grey powder-coated finish. Its screw-on lid and neoprene gasket provide a secure seal, while integrated mounting bosses simplify PCB and plate installation.

Key specifications

• External dimensions: 299 mm (L) x 173 mm (W) x 90 mm (H)
• Material: Aluminium
• Colour: Graphite Grey (RAL 7024)
• Surface finish: Powder-coated
• Lid fastening: Screw-on lid
• Gasket material: Neoprene
• Mounting: Wall mountable; integrated mounting bosses for PCBs/mounting plates
• Operating temperature range: -40 °C to +100 °C
• Impact resistance: IK08
• Shielding: EMI/RFI shielding

Why choose it

The aluminium construction with powder coating provides corrosion resistance and durability in demanding environments. The neoprene gasket ensures a tight seal, and the EMI/RFI shielding protects sensitive electronics from interference.

Ideal use cases

• Industrial control systems
• Outdoor electronics enclosures
• Measurement and monitoring equipment
• Custom electronics projects

Good to know

The enclosure is supplied as a single piece and is designed for wall mounting. The integrated bosses allow direct mounting of PCBs or mounting plates without additional drilling.
