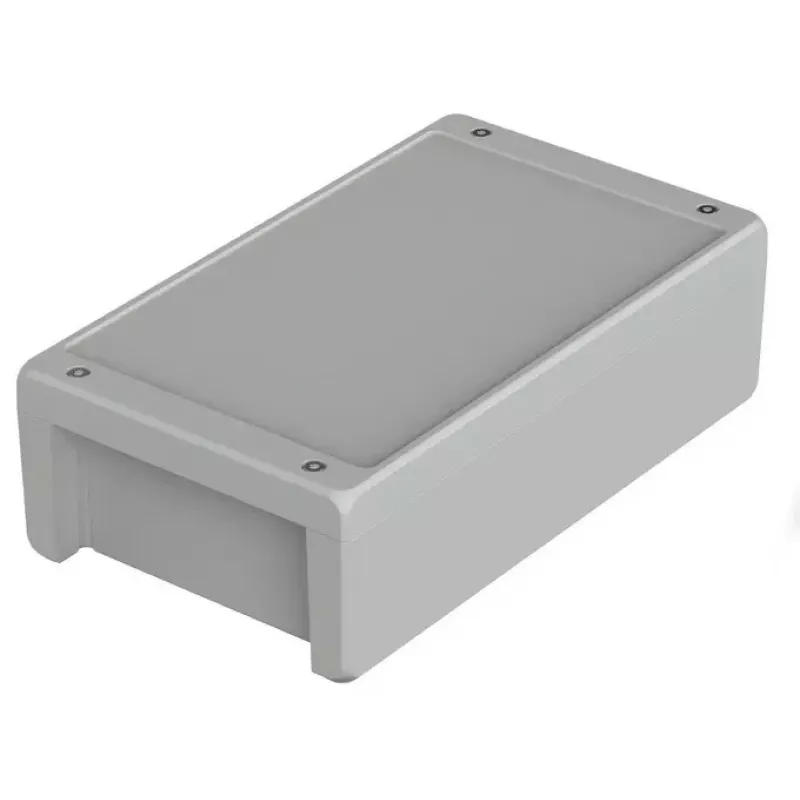

Bopla BA-S 281709 F Bocube Carcasa universal de aluminio 299 x 173 x 90 mm gris claro RAL 7035 00166335

Industrial electronics need a housing that protects sensitive components from dust, moisture, and mechanical impact. The Bopla BA-S 281709 F Bocube Alu enclosure provides a robust aluminium shell with a light grey powder-coated finish, sized 299 x 173 x 90 mm to accommodate a wide range of control and automation equipment.

Who is it for

This enclosure is intended for system integrators, panel builders, and OEMs working in industrial automation, measurement and control technology, and similar fields where reliable protection is required.

Main features

• Aluminium body with light grey (RAL 7035) powder coating
• External dimensions: 299 mm length, 173 mm width, 90 mm height
• Recessed lid with integrated hinge function and captive stainless steel screws
• Silicone gasket for reliable sealing
• Operating temperature range: -40 °C to +80 °C
• Wall mounting and internal mounting bosses

Specifications

• Material: Aluminium
• Colour: Light grey (RAL 7035)
• External dimensions: 299 x 173 x 90 mm
• Series: Bocube Alu
• Surface treatment: Powder-coated
• Lid fastening: Captive stainless steel screws
• Gasket material: Silicone
• Operating temperature: -40 °C to +80 °C
• Mounting options: Wall mounting, internal mounting bosses
• Application area: Industrial electronics, automation, measurement and control technology

Tips

When selecting a gasket or replacement lid, verify compatibility with the Bocube Alu series. The enclosure's aluminium construction provides good heat dissipation for internal components.
