Bopla BoPad BOP 7.0 P-9005-SET Carcasa para pantalla 215 x 150 x 75,70 mm ABS negro (RAL 9005) 35107075.HMT1

The Bopla BoPad BOP 7.0 P-9005-SET stands apart from generic display housings by integrating a dedicated battery compartment and a screw-on lid, making it a ready-to-use solution for handheld and desktop electronics. Its ABS construction with a matt surface finish provides a robust yet lightweight shell for 7.0-inch displays.

Highlights

• Designed for 7.0-inch display integration
• Integrated battery compartment for portable power
• Screw-on lid for secure closure
• Matt black finish (RAL 9005) with UL 94 V-0 flammability rating
• External dimensions: 215 x 150 x 75.70 mm

In daily use

This enclosure offers a practical balance of protection and accessibility. The ABS material withstands operating temperatures from -20 °C to +80 °C, while the screw-on lid ensures components stay in place. The battery compartment simplifies power management for mobile applications.

Full specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Black (RAL 9005)

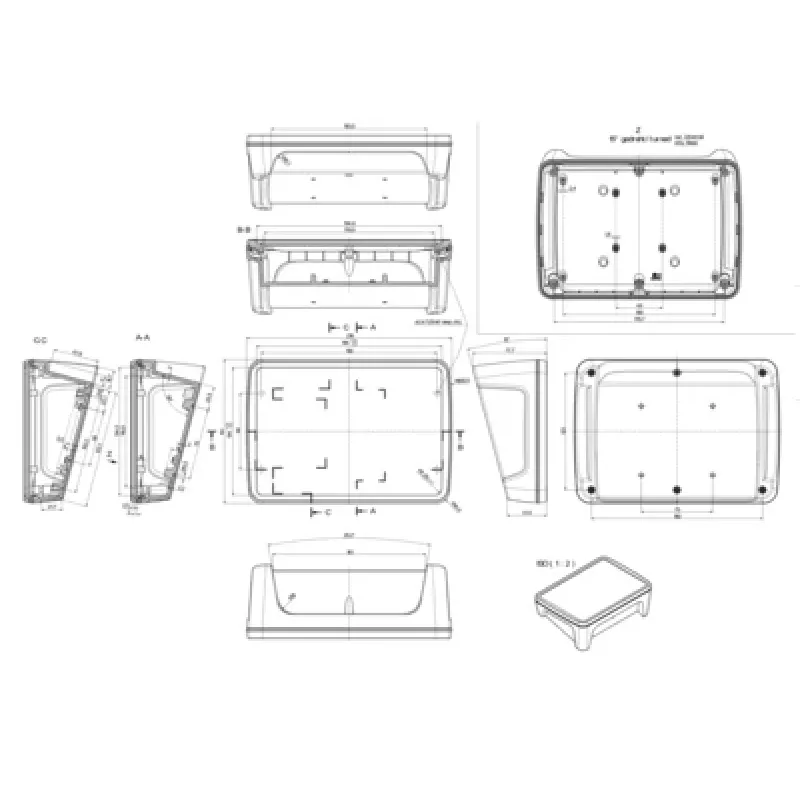

• External dimensions: 215 mm (L) x 150 mm (W) x 75.70 mm (H)
• Display cutout: 7.0-inch
• Flammability rating: UL 94 V-0
• Protection class: IP 40 (upgradeable to IP 65 with sealing kit)
• Operating temperature: -20 °C to +80 °C
• Battery compartment: integrated
• Lid fastening: screw-on
• Surface finish: matt
• Included components: top part, bottom part, battery compartment cover, screws

Final note

A versatile enclosure for custom electronics projects requiring a 7-inch display and battery-powered operation.
