Bopla BoPad Display Bundle Raspberry Pi 5 B 16GB 4 x 2,4GHz 4064161407968

Equipped with a quad-core 2.4GHz processor and 16GB RAM, this bundle integrates the Raspberry Pi 5 Model B with a 7-inch touchscreen and a protective BoPad enclosure, ready for HMI and embedded projects.

Overview

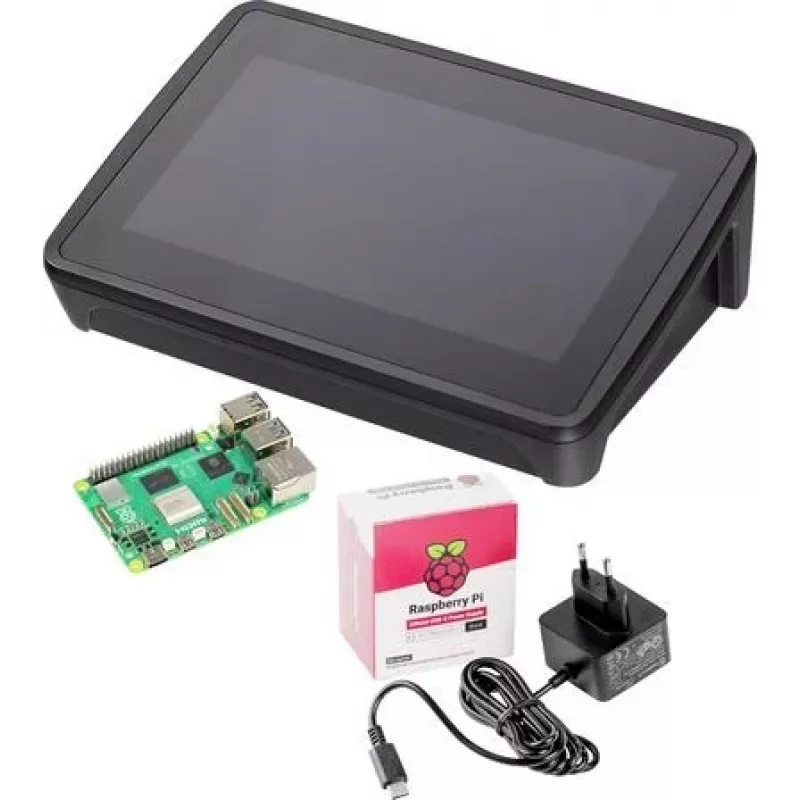

The Bopla BoPad Display Bundle combines the Raspberry Pi 5 Model B (16GB) with a 7-inch capacitive touchscreen and a custom ABS enclosure. The Raspberry Pi 5 features a Broadcom BCM2712 quad-core Cortex-A76 CPU running at 2.4GHz, 16GB LPDDR4X-4267 RAM, and VideoCore VII graphics. The display offers 800 x 480 resolution with touch input. The enclosure, part of the Bopla BoPad series, is made of black ABS plastic and designed to house the board and display as a single unit.

What stands out

• High-performance Raspberry Pi 5 with 16GB RAM for demanding tasks
• 7-inch capacitive touchscreen for interactive applications
• Integrated enclosure for protection and mounting
• Dual micro-HDMI ports supporting 4Kp60 output
• Gigabit Ethernet and Wi-Fi 5 for reliable connectivity

Technical details

• Processor: Broadcom BCM2712, quad-core Cortex-A76 @ 2.4GHz
• Memory: 16GB LPDDR4X-4267
• GPU: VideoCore VII
• Display: 7-inch capacitive touchscreen, 800 x 480 pixels
• Enclosure: Bopla BoPad series, black ABS plastic
• USB: 2x USB 3.0, 2x USB 2.0
• Video output: 2x micro-HDMI (4Kp60)
• Network: Gigabit Ethernet, Wi-Fi 5 (802.11ac), Bluetooth 5.0/BLE
• Expansion: 40-pin GPIO, PCIe 2.0 x1
• Power input: USB-C (5V/5A recommended)

Our verdict

A complete solution for industrial HMI, IoT gateways, or desktop replacement, offering powerful computing and a responsive touchscreen in a durable package.
