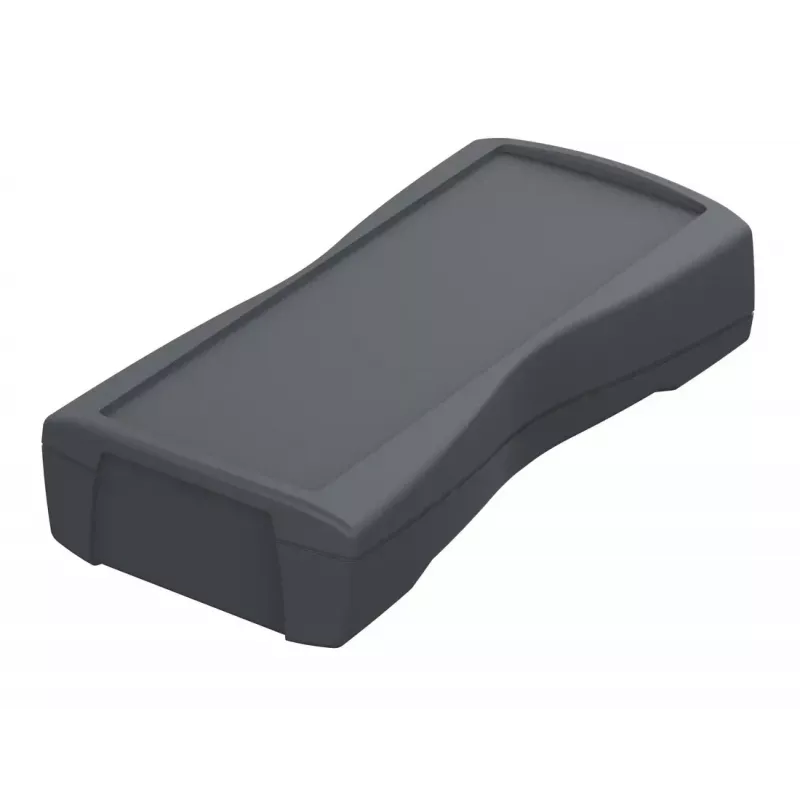

Bopla carcasa de mano 159,4 x 77,9 x 33,5 mm ABS gris grafito BS 82603124.MT 2

Handheld enclosure crafted from ABS plastic in graphite grey, offering a robust housing for electronic projects with dimensions of 159.4 x 77.9 x 33.5 mm. Its integrated battery compartment supports either 2x AA or 1x 9V block batteries, making it suitable for portable devices.

Advantages

The enclosure features a fine textured surface and a recessed area for membrane keypads or displays, enhancing both durability and usability. Screw-fastened assembly ensures a secure fit for internal components.

Suitable for

• Portable electronic devices
• Handheld measurement instruments
• Remote controls and communication devices

Key specifications

• Material: ABS plastic
• Colour: Graphite grey
• External dimensions: 159.4 x 77.9 x 33.5 mm
• Battery compartment: 2x AA or 1x 9V block
• Number of parts: 3 (top shell, bottom shell, battery lid)
• Flammability rating: UL 94 V-0
• Operating temperature: -20 to +80 °C

Recommendations

Ideal for prototyping and small-batch production where a reliable, customizable handheld enclosure is required.
