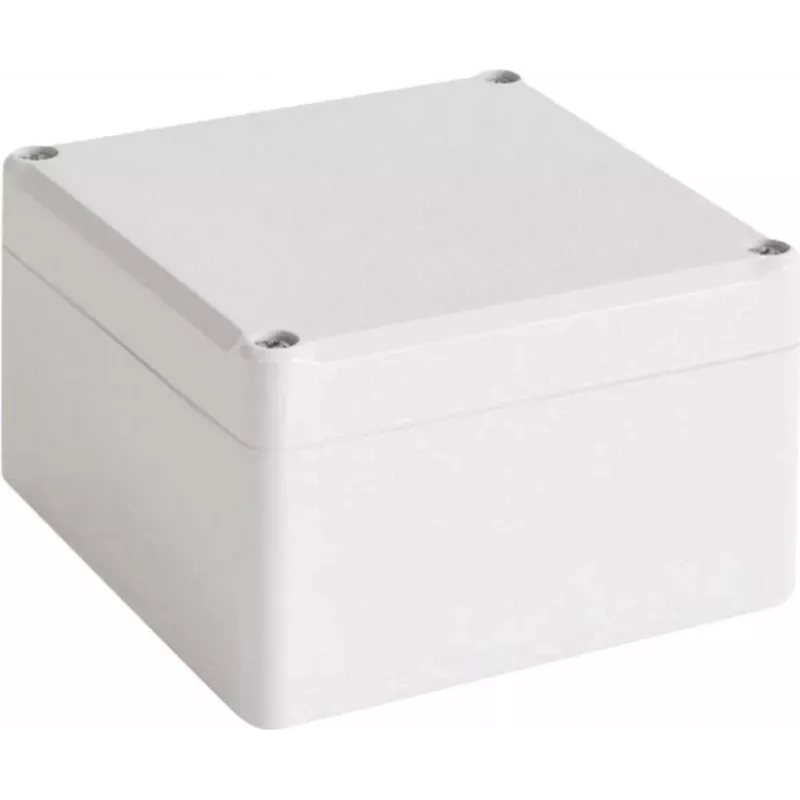

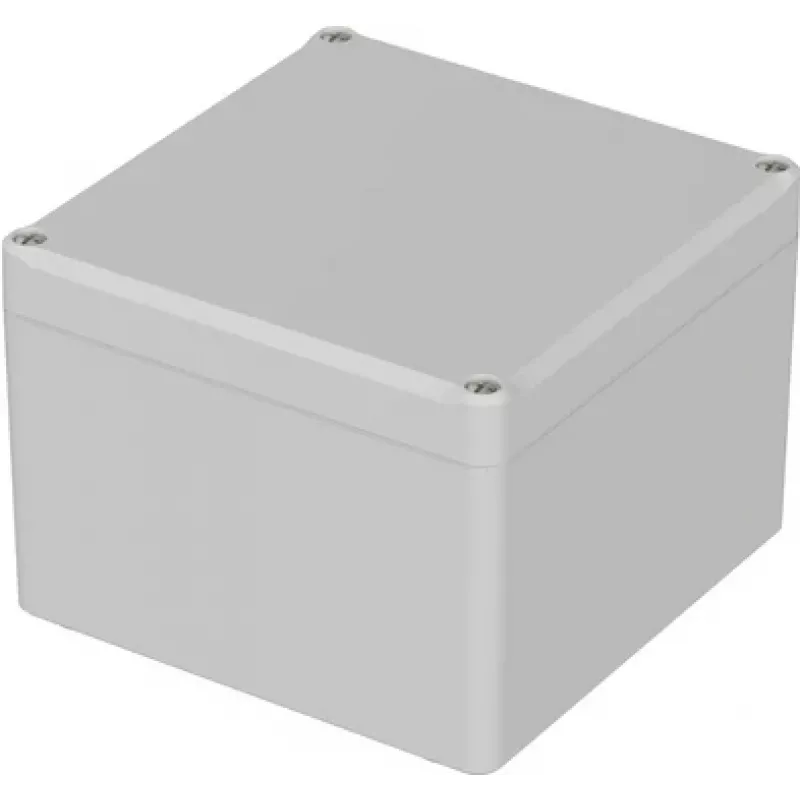

Bopla carcasa universal 122 x 120 x 87 ABS gris claro (RAL 7035) ET 227 63227000

The Bopla ET 227 universal enclosure stands out with its compact dimensions of 122 x 120 x 87 mm and robust ABS construction, offering a reliable housing for electronics in industrial and outdoor settings. Its light grey finish (RAL 7035) provides a neutral, professional appearance that blends into various environments.

Highlights

• ABS material for impact resistance and durability
• Light grey colour (RAL 7035) for a clean, industrial look
• External dimensions: 122 mm length, 120 mm width, 87 mm height
• Recessed lid design suitable for membrane keypads
• Internal mounting bosses for PCBs or mounting plates
• Stainless steel screws for secure lid fastening

In daily use

This enclosure is well-suited for housing electronics that require protection from dust and moisture, thanks to its sealed construction. The recessed lid allows for the integration of membrane keypads or overlays, while the internal bosses simplify the mounting of circuit boards or plates. The stainless steel screws ensure the lid remains securely attached even in demanding conditions.

Full specifications

• Product type: Universal Enclosure
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 122 x 120 x 87 mm
• Series: ET Series
• Operating temperature range: -40 to +80 °C
• Flammability rating: UL 94 HB
• Impact resistance: IK07
• Protection class: IP65
• RoHS compliant: Yes
• Units per pack: 1

Final note

A versatile enclosure for industrial and outdoor electronics, combining durability with a clean, professional look.
