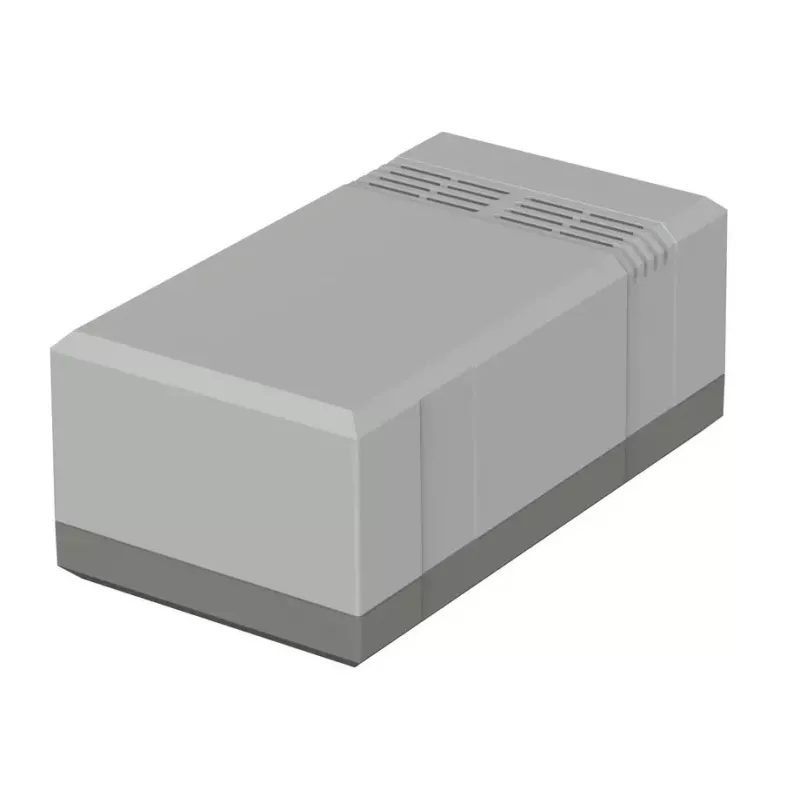

Bopla EG 1560 L Carcasa de sobremesa 150 x 82 x 60 mm poliestireno gris claro RAL 7035 32156012

Protecting sensitive electronics in a desktop environment requires a housing that is both sturdy and easy to work with. The Bopla EG 1560 L desktop enclosure provides a simple, screw-fastened shell for general-purpose electronics, control units, and measurement devices.

Who is it for

Engineers and hobbyists building small electronic devices that need a free-standing enclosure with internal PCB mounting bosses. It suits projects where a light grey, smooth-finish housing is acceptable and IP40 protection is sufficient.

Main features

• Two-part construction: base and lid, fastened with screws.
• Integrated PCB mounting bosses for secure board placement.
• Made from polystyrene (PS), light grey RAL 7035.
• External dimensions: 150 mm length, 82 mm width, 60 mm height.
• Free-standing desktop design, no additional mounting hardware required.

Specifications

• Material: Polystyrene (PS)
• Colour: Light grey (RAL 7035)
• External dimensions: 150 x 82 x 60 mm (L x W x H)
• Protection class: IP40
• Lid fastening: Screw-fastened
• Number of components: 2 (base, lid)
• Internal mounting: Integrated PCB mounting bosses
• Surface finish: Smooth
• Series: EG Series

Tips

When selecting screws for the lid, use the size recommended by Bopla for the EG series to avoid damaging the polystyrene. For applications requiring higher protection against dust or moisture, consider a sealed enclosure variant.
