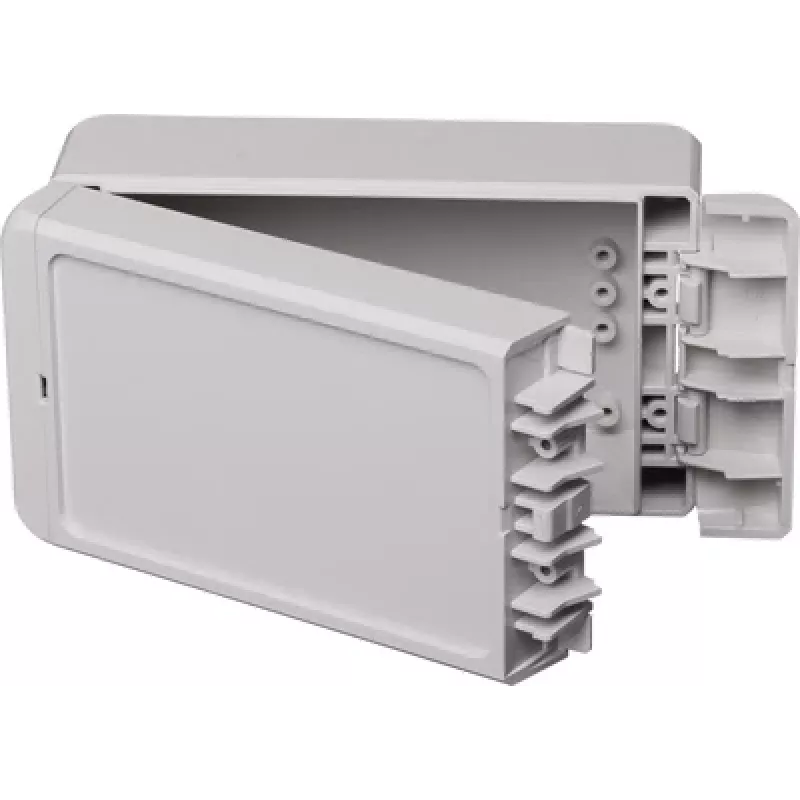

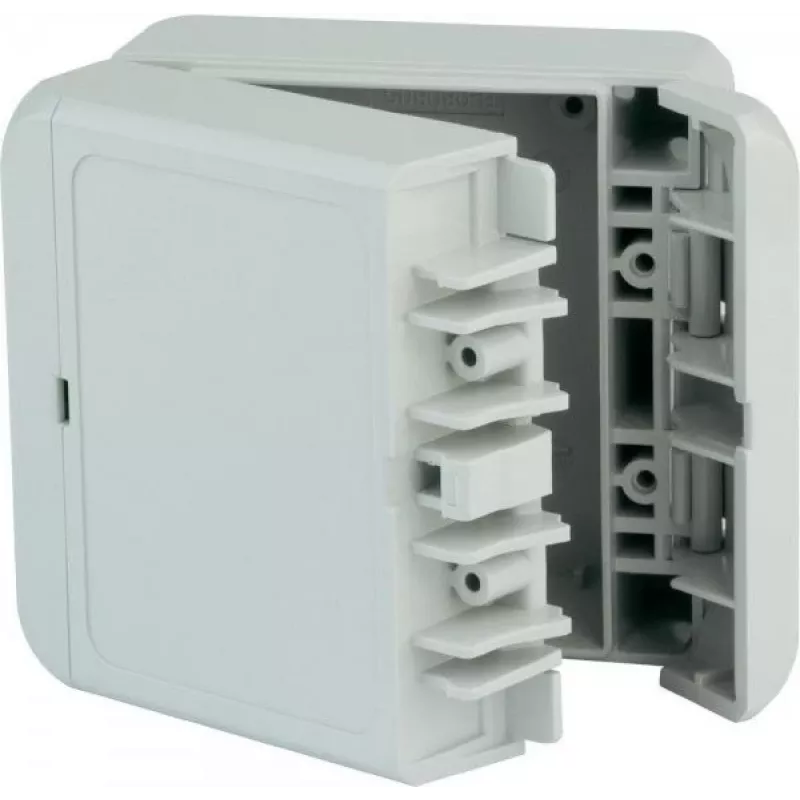

BOPLA EUROMAS II carcasa de pared, policarbonato, gris claro (RAL 7035), 151 x 80 x 60 mm, IP65, IK07

In industrial automation and outdoor control systems, the BOPLA EUROMAS II wall-mounted enclosure provides a robust housing for electronics. Made from light grey polycarbonate (RAL 7035), it measures 151 mm wide, 80 mm high, and 60 mm deep, offering space for PCBs and mounting plates. The screw-on lid with four stainless steel screws and a polyurethane gasket ensures a tight seal, achieving IP65 protection against dust and water jets and IK07 impact resistance. The enclosure operates from -40°C to +80°C and is halogen-free and UV-resistant, suitable for harsh environments.

Key specifications

• Material: Polycarbonate (PC)
• Colour: Light Grey (RAL 7035)
• External dimensions (W x H x D): 151 x 80 x 60 mm
• Protection class: IP65
• Impact resistance: IK07
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-2
• Lid type: Screw-on lid with 4 stainless steel screws
• Gasket material: Polyurethane (PU)
• Internal mounting: Mounting bosses for PCBs/mounting plates
• Halogen-free: Yes
• UV resistance: Yes
• Chemical resistance: Good against oils, greases, alcohols, weak acids/alkalis
• RoHS compliant: Yes

Why choose it

This enclosure combines a durable polycarbonate body with reliable sealing, making it a dependable choice for protecting sensitive electronics in demanding industrial settings. The light grey colour blends into control cabinets and machinery, while the included mounting bosses simplify installation.

Ideal use cases

• Industrial control systems
• Outdoor automation equipment
• Sensor and measurement devices
• Electrical junction boxes

Good to know

The enclosure is part of the EUROMAS II series and is designed for wall mounting. It is halogen-free and offers UV resistance, ensuring long-term performance even when exposed to sunlight.
