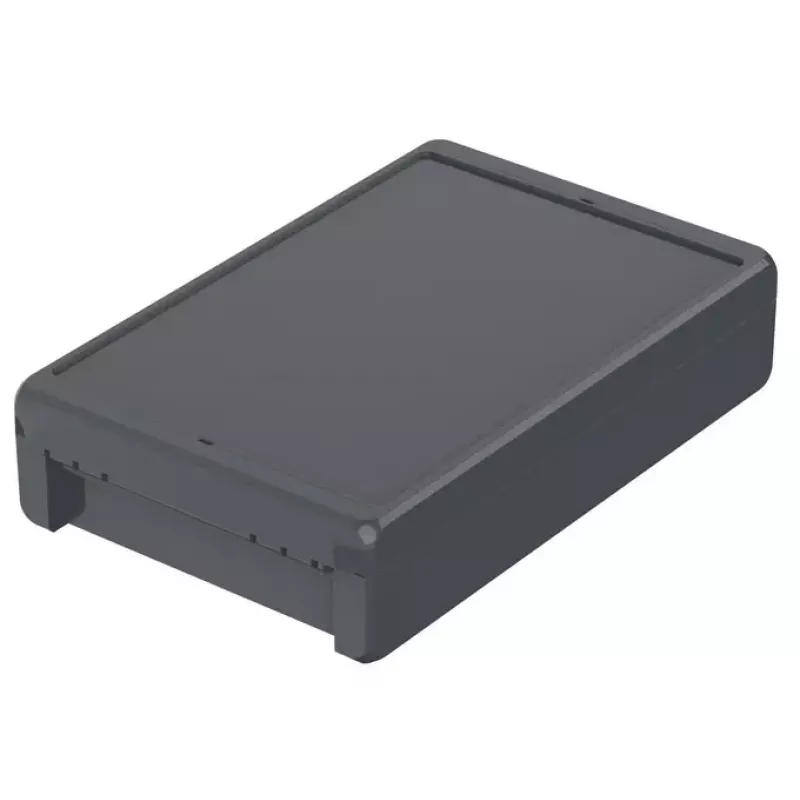

BOPLA EUROMAS II Carcasa de pared, policarbonato, gris grafito (RAL 7024), 271 x 170 x 60 mm, IP65, IK08 96016324

Wall-mount enclosure made of polycarbonate in graphite grey (RAL 7024), offering robust protection for electrical and electronic installations. Its IP65 rating ensures dust-tightness and resistance to water jets, while IK08 impact resistance provides durability in demanding environments.

Advantages

High-quality polycarbonate construction, halogen-free, with stainless steel lid screws and integrated mounting bosses for DIN rails or mounting plates. The polyurethane gasket ensures a reliable seal, and the opaque lid provides a clean appearance.

Suitable for

• Industrial control systems
• Outdoor electrical installations
• Automation and IoT devices
• Harsh environment applications

Key specifications

• Material: Polycarbonate (PC)
• Colour: Graphite Grey (RAL 7024)
• External dimensions: 271 x 170 x 60 mm
• Protection class: IP65
• Impact resistance: IK08
• Operating temperature: -40 °C to +80 °C
• Flammability rating: UL 94 V-2
• Lid fasteners: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Mounting: Wall mounting
• Standards: RoHS compliant
• Halogen-free: Yes

Recommendations

Ideal for protecting sensitive electronics in industrial and outdoor settings where dust, water, and impact resistance are critical.
