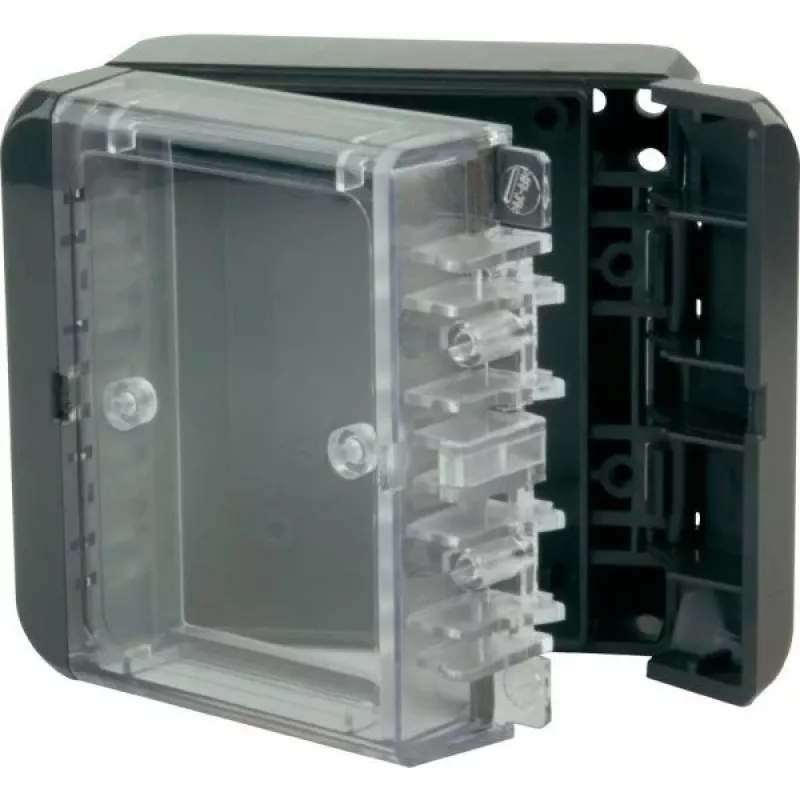

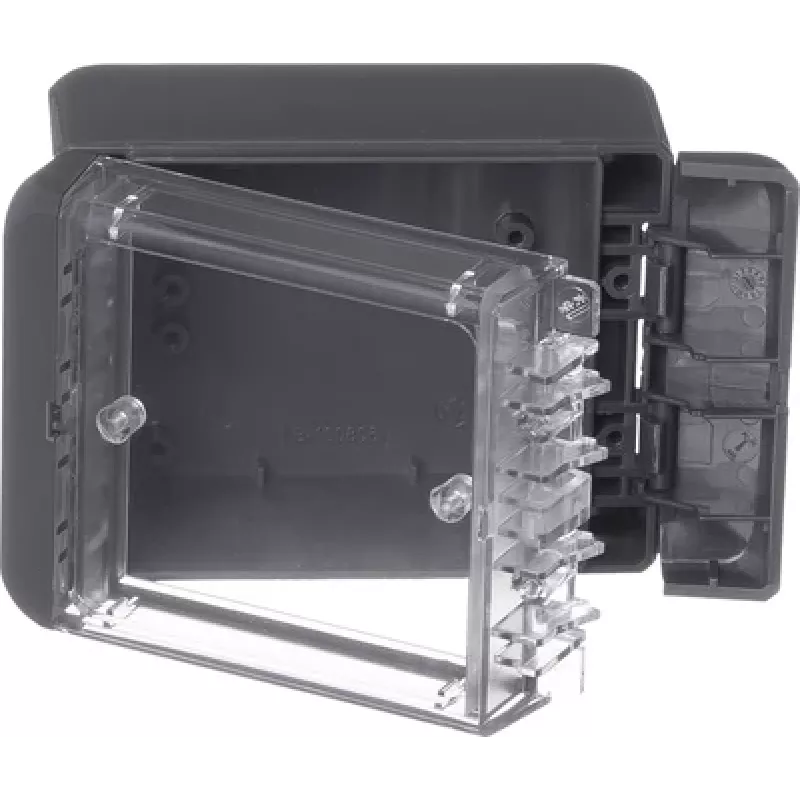

BOPLA Euromas II carcasa de pared, policarbonato, gris grafito (RAL 7024), 60 x 80 x 113 mm

Protect sensitive electronics in demanding environments with this robust wall-mount enclosure from BOPLA's Euromas II series. Constructed from self-extinguishing polycarbonate, it provides a secure housing for PCBs and DIN rail components while withstanding harsh conditions.

Who is it for

Engineers and installers who need a durable, UV-resistant enclosure for industrial controls, IoT devices, or outdoor electronics. Ideal for applications requiring a compact, flame-retardant housing with high impact resistance.

Main features

• Polycarbonate body in graphite grey (RAL 7024) with UL 94 V-0 flammability rating
• External dimensions: 60 mm width, 80 mm height, 113 mm depth
• IP65 protection against dust and water jets
• IK07 impact resistance
• Stainless steel lid screws and polyurethane gasket for reliable sealing
• Integrated mounting bosses for PCBs or DIN rails
• External wall mounting channels for easy installation
• Halogen-free and self-extinguishing material

Specifications

• Material: Polycarbonate (PC)
• Colour: Graphite grey (RAL 7024)
• Width: 60 mm
• Height: 80 mm
• Depth: 113 mm
• Operating temperature: -40°C to +80°C
• Flammability rating: UL 94 V-0
• Protection class: IP65
• Impact resistance: IK07
• Gasket material: Polyurethane (PU)
• Lid fastening: 4x stainless steel screws
• Mounting: External wall mounting channels, internal bosses for PCBs/DIN rails

Tips

Pair with a suitable cable gland to maintain the IP65 rating when routing wires. For outdoor use, ensure proper sealing of all openings to prevent moisture ingress.
