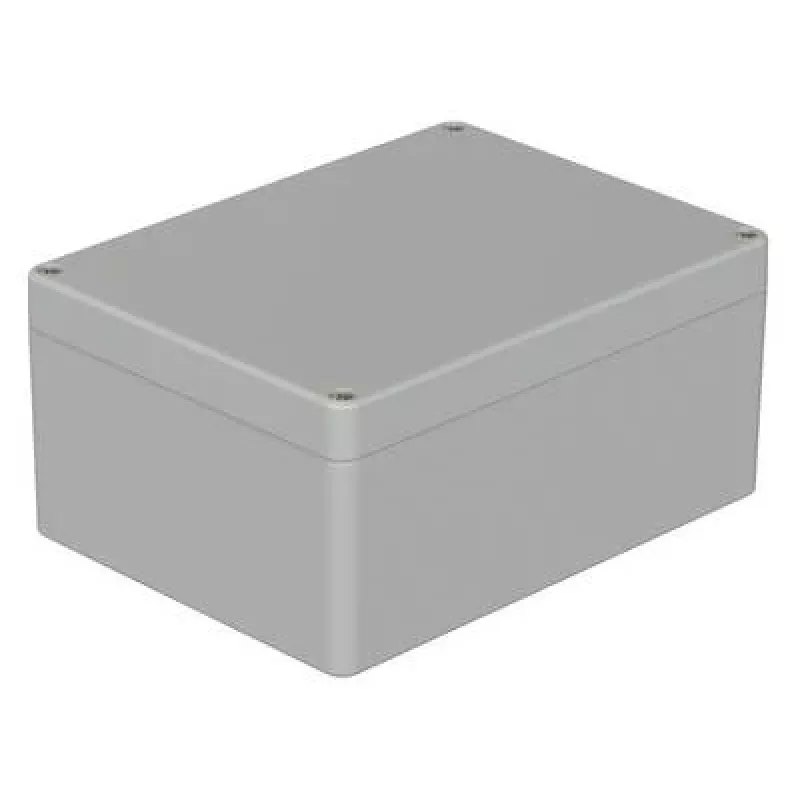

Bopla EUROMAS T 160 x 120 x 75 ABS gris claro Carcasa universal 03238200

Industrial control panels and measurement equipment need a housing that protects sensitive electronics from dust, moisture, and rough handling. The Bopla EUROMAS T universal enclosure provides a robust ABS shell in light grey (RAL 7035), sized 160 x 120 x 75 mm, with a screw-on lid and integrated wall-mount channels for secure installation in automation, instrumentation, and control system applications.

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 160 mm length, 120 mm width, 75 mm height
• Protection class: IP65
• Operating temperature: -40 °C to +80 °C
• Lid fastening: 4 stainless steel screws
• Gasket material: PUR (Polyurethane)
• Flammability rating: UL 94 HB
• Wall mounting: Integrated screw channels
• RoHS compliant: Yes

Why choose it

The EUROMAS T series combines a tough ABS body with a reliable PUR gasket to keep out dust and water jets. The light grey finish is standard for industrial control cabinets, and the integrated screw channels simplify wall mounting without extra brackets.

Ideal use cases

• Industrial electronics housings
• Control system enclosures
• Measurement technology
• Automation components

Good to know

This enclosure is part of the EUROMAS T series and is supplied with a lid. It is suitable for a wide range of indoor and outdoor applications where IP65 protection is required.
