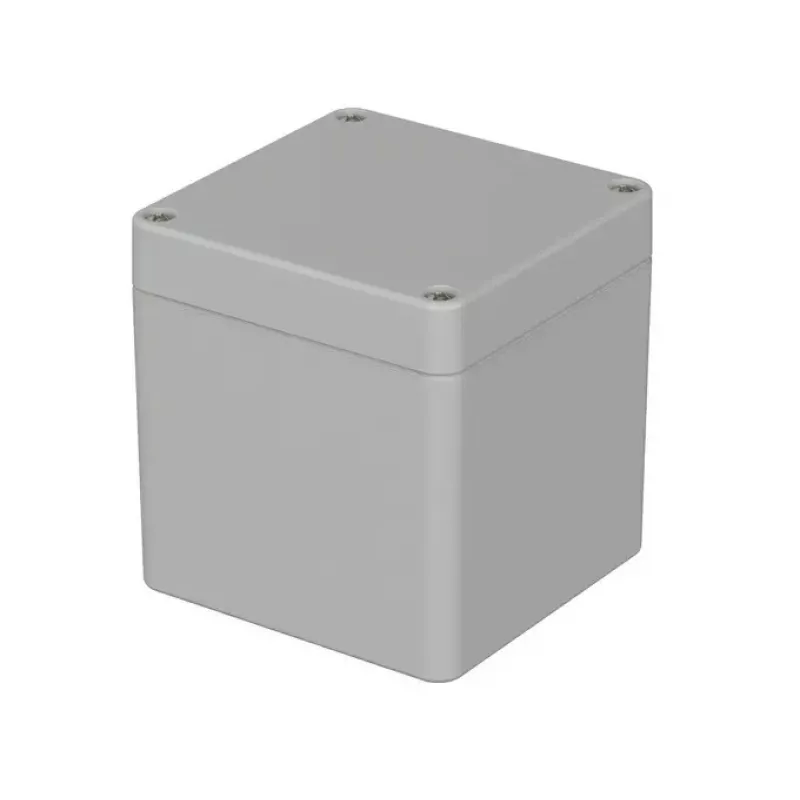

Bopla EUROMAS T 225 carcasa universal 82 x 80 x 85 mm ABS gris claro IP65 03225000

When electronics need protection from dust, moisture, and mechanical impact, a reliable enclosure is essential. The Bopla EUROMAS T 225 universal enclosure provides a robust housing for a wide range of electronic and electrical components, ensuring they remain safe in demanding environments.

Who is it for

This enclosure is ideal for engineers, technicians, and hobbyists who need a durable, IP65-rated housing for PCBs, sensors, or control modules. It suits applications in industrial automation, building technology, and outdoor installations where protection against the elements is critical.

Main features

• Made from light grey ABS (RAL 7035) for a balance of strength and light weight.
• External dimensions: 82 mm length, 80 mm width, 85 mm height; internal space approximately 76 x 74 x 78 mm.
• IP65 protection against dust and water jets.
• Lid secured with four stainless steel M3 screws, with a polyurethane foam gasket for a tight seal.
• Recessed lid area for membrane keypads or labels.
• Internal mounting bosses for PCBs or plates, plus screw channels for wall mounting.
• Operating temperature range: -40 °C to +80 °C.
• Halogen-free and RoHS compliant.

Specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 82 x 80 x 85 mm
• Internal dimensions: approx. 76 x 74 x 78 mm
• Protection class: IP65
• Flammability rating: UL 94 HB
• Lid fastening: 4x stainless steel screws (M3)
• Gasket material: Polyurethane (PU) foam
• Wall thickness: approx. 3 mm
• Halogen-free: Yes
• RoHS compliant: Yes
• Supply includes: Base, lid, lid screws, gasket

Tips

For best results, use the internal mounting bosses to secure your PCB before closing the lid. Ensure the gasket is seated correctly to maintain the IP65 seal. The recessed lid area is perfect for a custom label or membrane keypad to give your device a professional finish.
