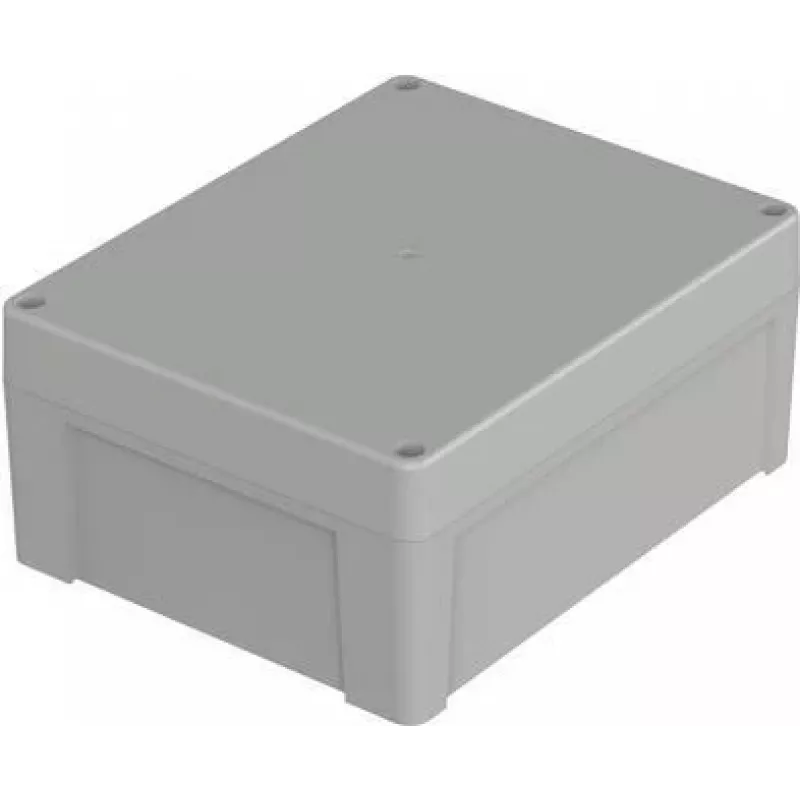

Bopla Euromas X/XT 241911 7035 Carcasa electrónica, 240 x 193,3 x 105,6 mm, ABS, gris claro RAL 7035 07524191

Electronics projects need a housing that protects sensitive components from dust, moisture, and impact while remaining easy to machine and assemble. The Bopla Euromas X/XT 241911 enclosure provides that protection in a light grey ABS shell sized for medium-format PCBs and control systems.

Who is it for

This enclosure suits engineers, system integrators, and makers building industrial control panels, IoT gateways, or custom instrumentation. Its recessed lid accepts membrane keypads, and integrated mounting bosses simplify PCB installation.

Main features

• ABS construction in light grey (RAL 7035) with a polyurethane gasket for a tight seal.
• External dimensions: 240 mm length, 193.3 mm width, 105.6 mm height.
• Stainless steel lid screws and recessed lid design for membrane keypads.
• Integrated mounting bosses for PCBs or mounting plates.
• Operating temperature range: -40°C to +80°C.

Specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light Grey (RAL 7035)
• External dimensions: 240 x 193.3 x 105.6 mm
• Gasket material: Polyurethane (PU)
• Lid fastening: Stainless steel screws
• Flammability rating: UL 94 HB
• Impact resistance: IK07
• Ingress protection: IP65

Tips

The polyurethane gasket maintains its seal across the full operating temperature range, making this enclosure suitable for outdoor or washdown environments. For membrane keypad integration, the recessed lid provides a flat surface for adhesive bonding.
