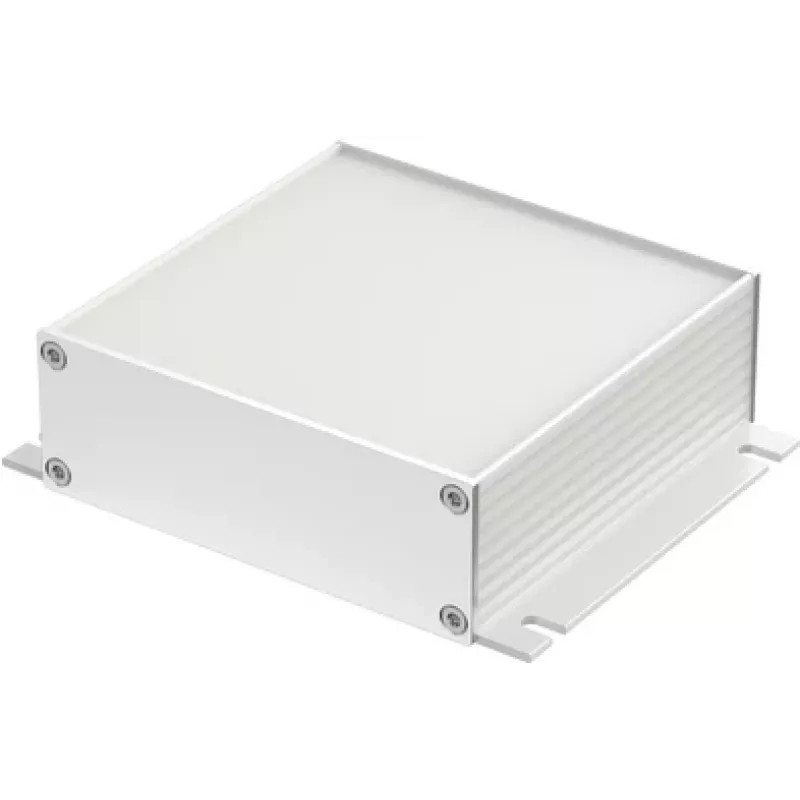

Bopla FILOTEC F 1036-100 WL carcasa de perfil de aluminio, 105 x 36 x 100 mm, anodizado, IP40 97216100.H

An extruded aluminium profile enclosure with integrated PCB grooves, the Bopla FILOTEC F 1036-100 WL offers a robust housing solution for electronic devices, control systems, and measurement technology. Its anodized finish provides corrosion resistance and a professional appearance.

Overview

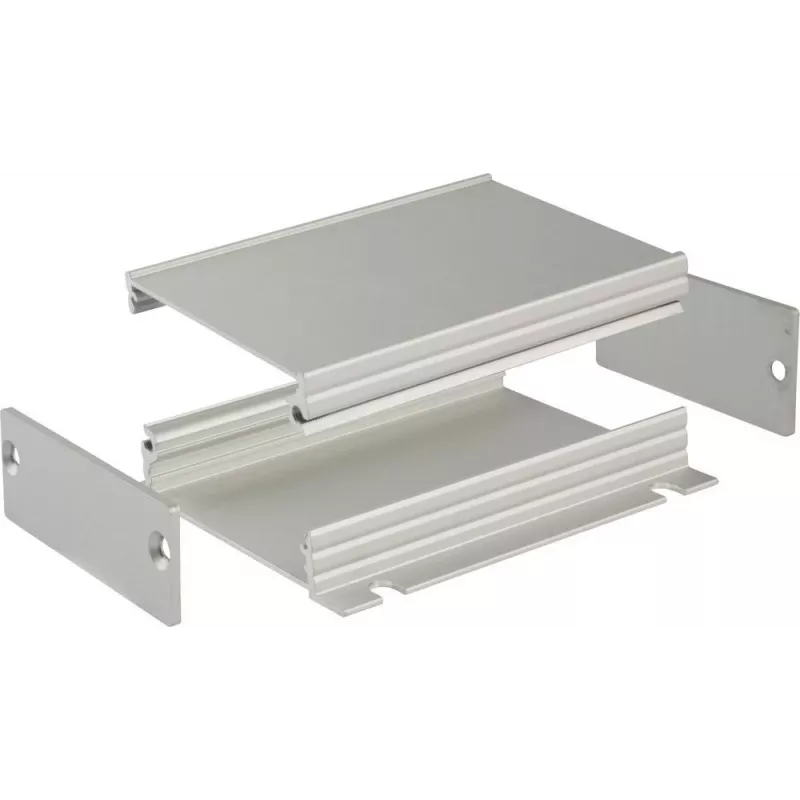

The Bopla FILOTEC F 1036-100 WL is a profile enclosure constructed from anodized aluminium. It consists of two profile halves and two end caps, secured by screws. The enclosure measures 105 mm in width, 36 mm in height, and 100 mm in length. It is designed for desktop or free-standing mounting and provides an IP40 protection rating.

What stands out

• Integrated grooves for direct PCB mounting
• Extruded aluminium body with anodized finish
• Screw-fastened end caps for secure closure
• Operating temperature range from -40 to +80 °C

Technical details

• Enclosure type: Profile enclosure
• Series: Bopla FILOTEC F
• Material: Aluminium
• Material finish: Anodized
• Colour: Silver
• External dimensions: 105 x 36 x 100 mm (W x H x L)
• Protection rating: IP40
• Number of components: 2 profile halves, 2 end caps
• Internal mounting features: Integrated grooves for PCBs
• Assembly method: Screw-fastened end caps
• Operating temperature range: -40 to +80 °C
• RoHS compliant: Yes
• Recommended application: Electronic devices, control systems, measurement technology
• Design type: Extruded profile housing
• Mounting type: Desktop / Free-standing

Our verdict

A reliable aluminium enclosure for electronics projects, offering easy PCB integration and durable construction.
