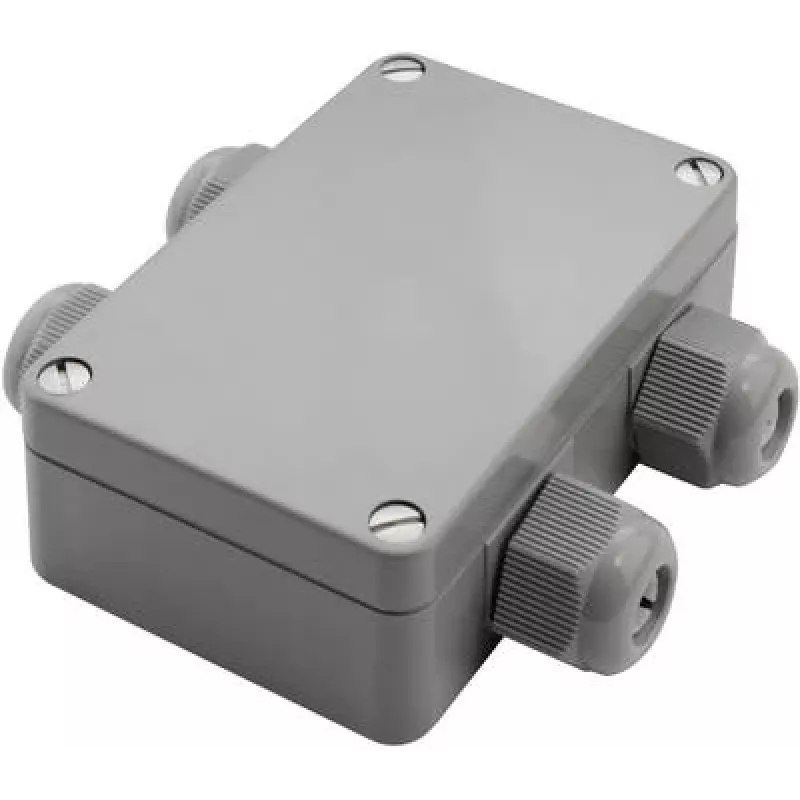

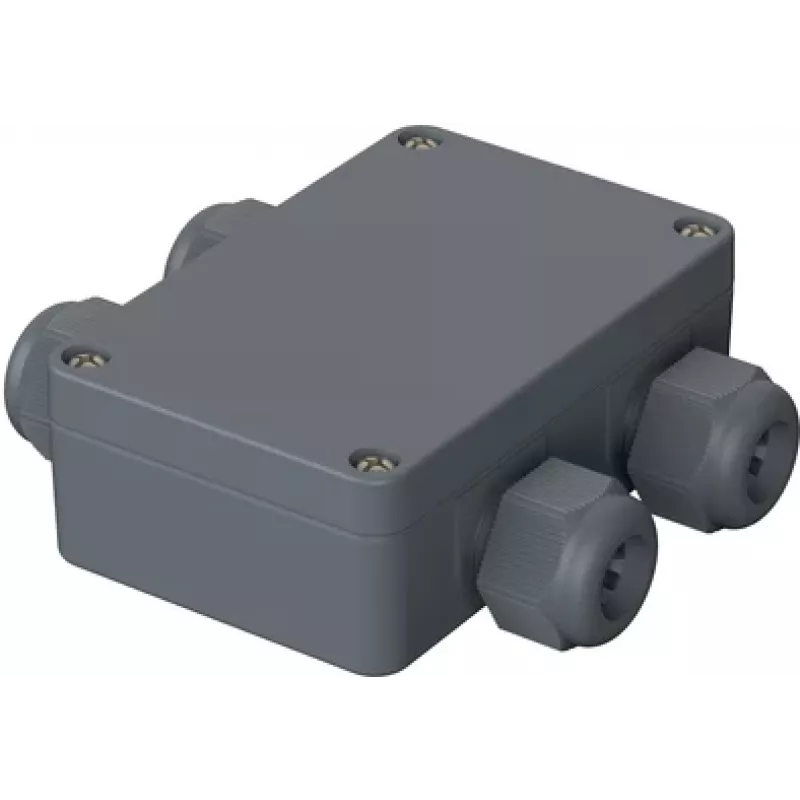

Bopla PK 102-411 carcasa universal 98 x 64 x 34 mm poliamida gris plata RAL 7001 38102400

The Bopla PK 102-411 stands out as a compact universal enclosure crafted from polyamide, offering a practical balance of durability and design flexibility for industrial electronics. Its silver grey finish (RAL 7001) provides a neutral, professional appearance suitable for a wide range of applications.

Highlights

• External dimensions: 98 mm length, 64 mm width, 34 mm height
• Material: Polyamide (PA)
• Colour: Silver grey (RAL 7001)
• Protection class: IP65
• Impact resistance: IK08
• Lid fastening with stainless steel screws
• Polyurethane (PUR) gasket for reliable sealing
• Flammability rating: UL 94 V-2
• Operating temperature range: -40 °C to +80 °C
• Mounting options: Wall mounting, screw mounting
• RoHS compliant and halogen-free

In daily use

This enclosure is designed to house electronic components in demanding environments. The IP65 protection class ensures resistance to dust and water jets, while the IK08 impact rating provides robustness against mechanical stress. The stainless steel lid screws and PUR gasket contribute to a secure, long-lasting seal. The polyamide material offers good chemical resistance and electrical insulation, making it suitable for control, measurement, and automation systems.

Full specifications

• Series: PK
• Product type: Universal enclosure
• External length: 98 mm
• External width: 64 mm
• External height: 34 mm
• Material: Polyamide (PA)
• Colour: Silver grey (RAL 7001)
• Protection class: IP65
• Impact resistance: IK08
• Lid fastening: Stainless steel screws
• Gasket material: Polyurethane (PUR)
• Flammability rating: UL 94 V-2
• Operating temperature range: -40 °C to +80 °C
• Mounting options: Wall mounting, screw mounting
• RoHS compliant: Yes
• Halogen-free: Yes
• Number of pieces: 1

Final note

The Bopla PK 102-411 combines a compact footprint with high protection ratings, making it a reliable choice for housing sensitive electronics in industrial settings.
