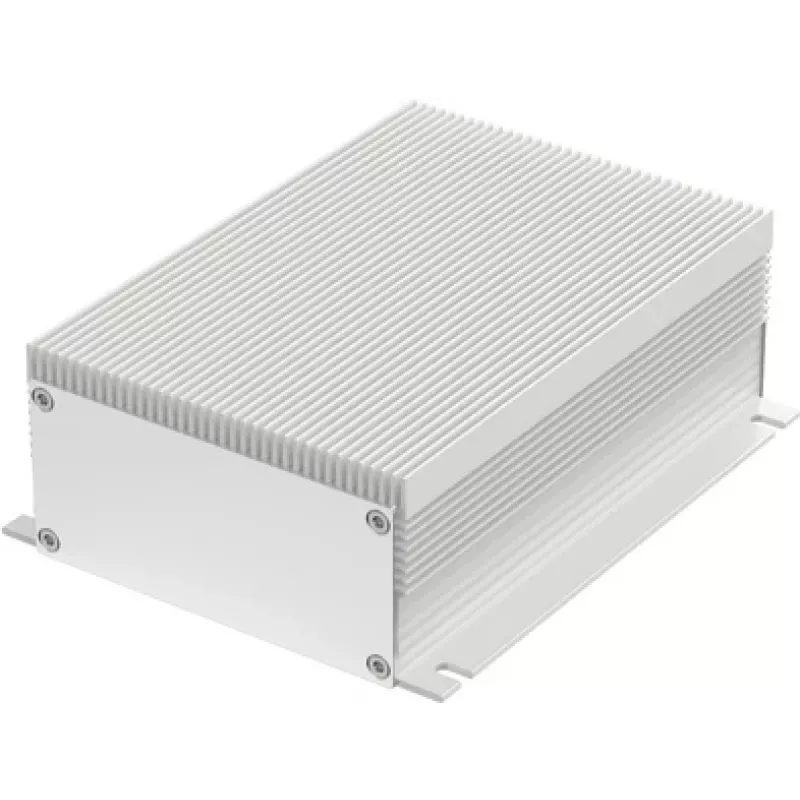

Bopla FILOTEC F 1048-160 KWL carcasa de perfil de aluminio 105 x 48 x 160 mm, anodizado plata 97418160.H

With external dimensions of 105 x 48 x 160 mm and an anodized aluminium body, this FILOTEC F profile enclosure provides a robust housing for industrial electronics, control systems, and measurement technology. The one-chamber profile design includes internal PCB guide grooves for secure board mounting and efficient heat dissipation.

Overview

The Bopla 97418160.H is a single-chamber aluminium profile enclosure from the FILOTEC F series. Its anodized finish offers a silver, natural aluminium appearance with good corrosion resistance. The enclosure is suitable for desktop use and can be wall-mounted with optional accessories. Plastic end plates in black or grey complete the housing.

What stands out

• Anodized aluminium profile for durability and thermal management
• Internal PCB guide grooves enable easy board insertion
• Compact 105 x 48 x 160 mm size fits space-constrained applications
• Operating temperature range from -40 to +80 °C

Technical details

• Series: FILOTEC F
• Material: Aluminium, anodized
• Colour: Silver (natural aluminium)
• External dimensions (W x H x D): 105 x 48 x 160 mm
• Number of profile chambers: 1
• Protection class: IP40
• End plates: Plastic, black/grey
• Mounting: Desktop, wall-mount (with optional accessories)
• Operating temperature: -40 to +80 °C
• Compliance: RoHS

Our verdict

A practical aluminium enclosure for electronics projects that need a sturdy, heat-dissipating housing with easy PCB integration.
