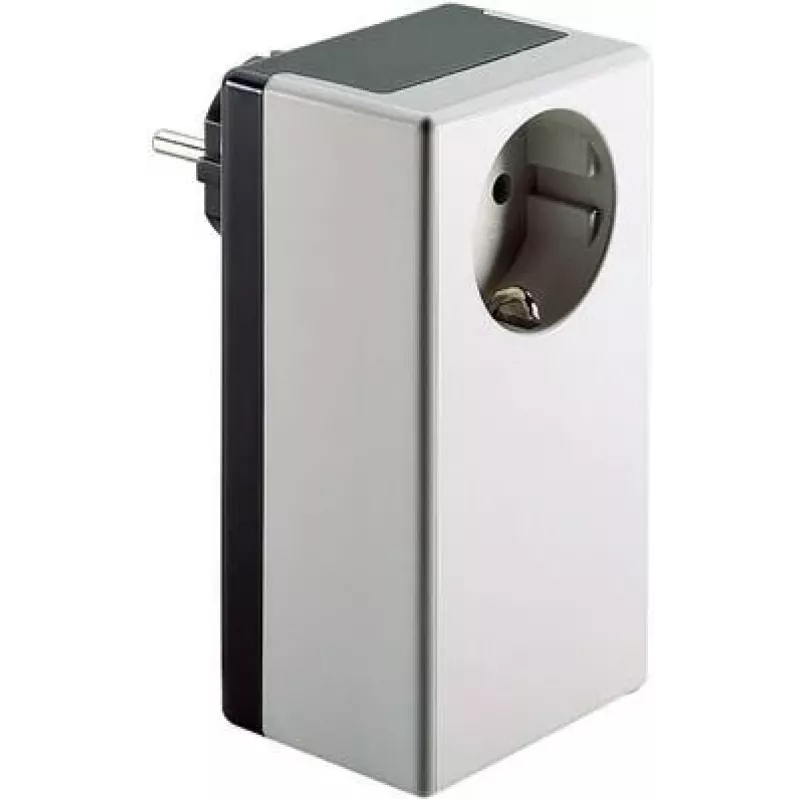

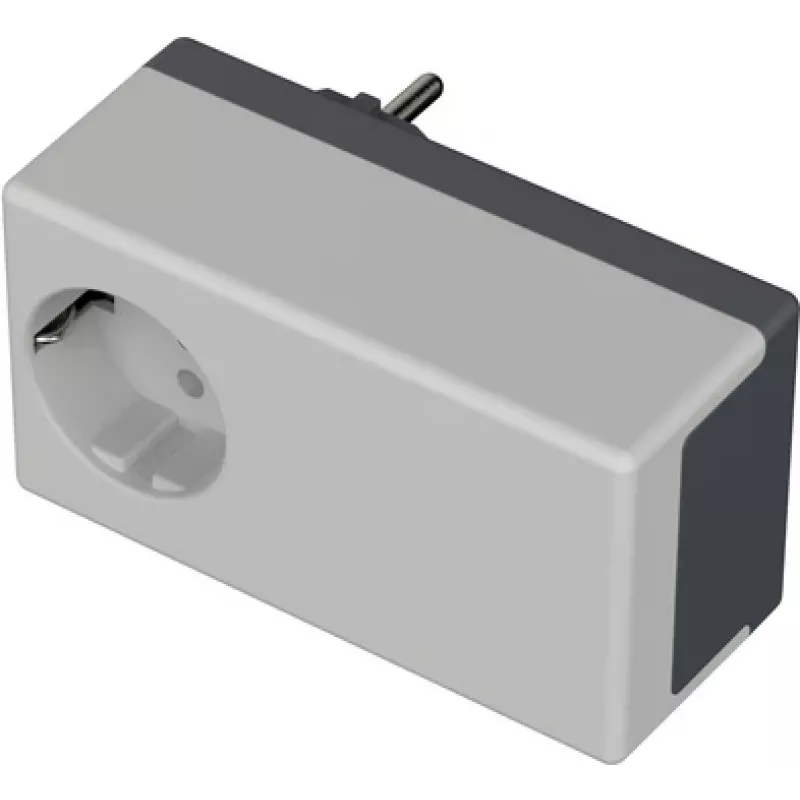

BOPLA Serie BS Carcasa de enchufe, ABS, gris claro, 120 x 65 x 50 mm 43432501

For electronics developers and installers who need a robust enclosure for plug-in modules, the BOPLA BS Series housing offers a practical solution. Its light grey ABS body measures 120 x 65 x 50 mm and provides a secure home for PCBs with integrated mounting bosses.

Key specifications

• Material: ABS (UL 94 V-2)
• Colour: Light grey (RAL 7035)
• External dimensions: 120 x 65 x 50 mm
• Protection class: IP40
• Operating temperature: -20 °C to +80 °C
• Mounting: Screw fastening
• Enclosure parts: 2 (top and bottom shell)

Why choose it

This enclosure is made from ABS, a material known for its impact resistance and dimensional stability. The light grey colour (RAL 7035) is widely used in industrial electronics, making it easy to integrate into existing systems. The two-part design simplifies assembly and access to internal components.

Ideal use cases

• Plug-in modules and connector housings
• Industrial control units
• Sensor enclosures
• Prototyping and small series production

Good to know

The enclosure provides IP40 protection, suitable for indoor environments where protection against solid objects larger than 1 mm is required. Integrated PCB mounting bosses allow direct board fixation without additional hardware.
