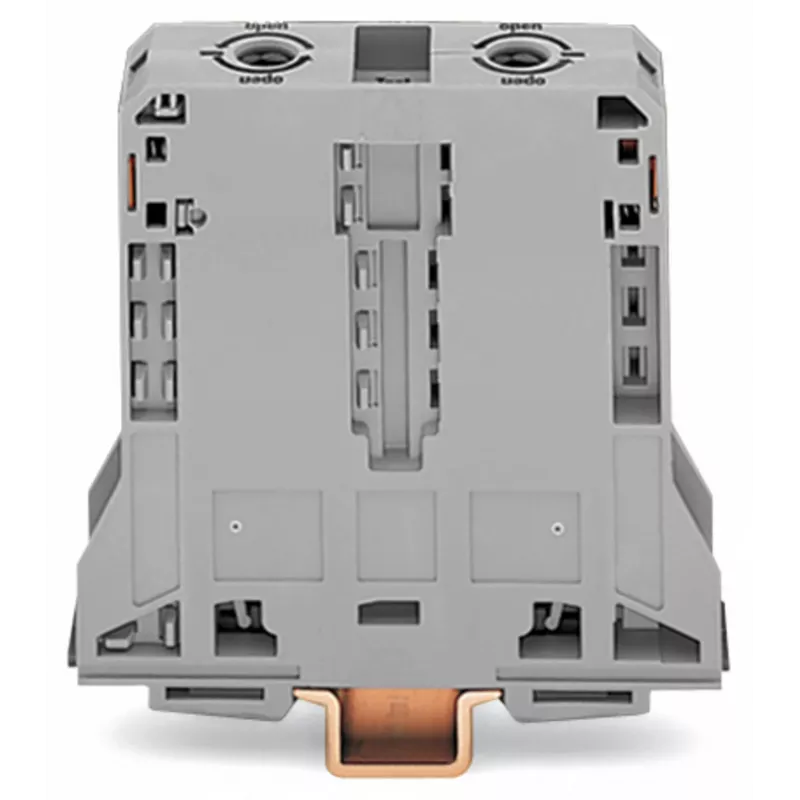

Borne para carril DIN WAGO 285-195 CAGE CLAMP®, 2 conductores, 125A, 1000V, gris

The WAGO 285-195 is a high-performance DIN-rail mounted terminal block from the renowned 285 series, designed for reliable and maintenance-free electrical connections. Featuring WAGO's patented CAGE CLAMP® connection technology, this terminal block ensures a gas-tight, vibration-proof, and corrosion-resistant connection for solid and fine-stranded conductors. With a rated voltage of 1000 V and a rated current of 125 A, it is ideal for demanding industrial applications requiring high power handling.

Advantages

CAGE CLAMP® technology provides fast, tool-free wiring with a consistent clamping force, reducing installation time and ensuring long-term reliability. The compact design saves space on the DIN-rail, while the grey polyamide housing offers excellent insulation and flame retardancy (UL94 V-0). Suitable for use in pollution degree 3 environments and overvoltage category III.

Suitable for

• Industrial control panels
• Power distribution systems
• Machine building and automation
• Electrical installations requiring high current capacity

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Connection Points: 2
• Number of Potentials: 1
• Rated Voltage (III/3): 1000 V
• Rated Impulse Voltage (III/3): 8 kV
• Rated Current: 125 A
• Conductor Size (Solid): 10 - 50 mm² / 8 - 1/0 AWG
• Conductor Size (Fine-Stranded): 10 - 35 mm² / 8 - 2 AWG
• Mounting Type: DIN-rail 35 mm
• Insulating Material: Polyamide (PA)
• Color: Grey
• Pollution Degree: 3
• Overvoltage Category: III
• Operating Temperature: -35 ... +85 °C
• Flammability Rating: UL94 V-0
• Stripping Length: 28 - 30 mm
• Type of Wiring: Front-entry wiring
• Dimensions (WxHxD): 25 mm x 107 mm x 101 mm

Recommendations

For optimal performance, use with WAGO operating tools and appropriate conductor ferrules. Ensure proper stripping length (28-30 mm) for secure clamping. This terminal block is suitable for use in a wide range of industrial environments.
