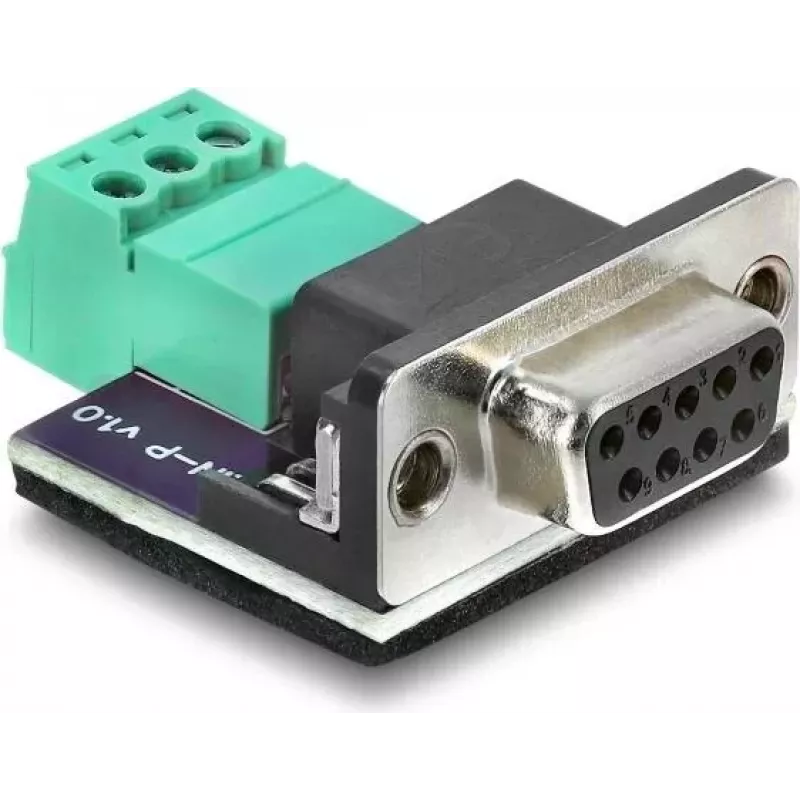

Delock Adaptador D-Sub 9 Polos Hembra a Regleta de Conexión de 3 Polos para Bus CAN / LIN (91293)

This Delock adapter enables a simple and secure connection between a D-Sub 9 pin female connector and a 3 pin screw terminal block, specifically designed for CAN and LIN bus systems. It allows for quick wiring without soldering, making it ideal for prototyping, testing, and integration into industrial or automotive applications.

Advantages

Tool-free installation via screw terminals saves time and effort. The compact plastic housing ensures durability and easy mounting. Clear pin assignment simplifies connection to CAN_H, CAN_L, and GND lines.

Suitable for

• Connecting CAN bus devices (e.g., sensors, controllers) to a D-Sub interface
• LIN bus applications requiring a 3-pin terminal block
• Prototyping and laboratory setups
• Industrial automation and automotive electronics

Key specifications

• Connector 1: D-Sub 9 pin female
• Connector 2: 3 pin screw terminal block
• Bus systems: CAN bus, LIN bus
• Pinout: CAN_L on D-Sub pin 2 to terminal pin 1; GND on D-Sub pin 3 to terminal pin 2; CAN_H on D-Sub pin 7 to terminal pin 3
• Housing material: Plastic
• Colour: Black
• RoHS compliant

Recommendations

For reliable CAN/LIN bus connections, use this adapter with twisted pair cables and ensure proper termination. Verify pin assignments with your device documentation.
