Bosch Quigo III Nivel láser de líneas cruzadas con soporte MM2 (0 603 663 5Z0)

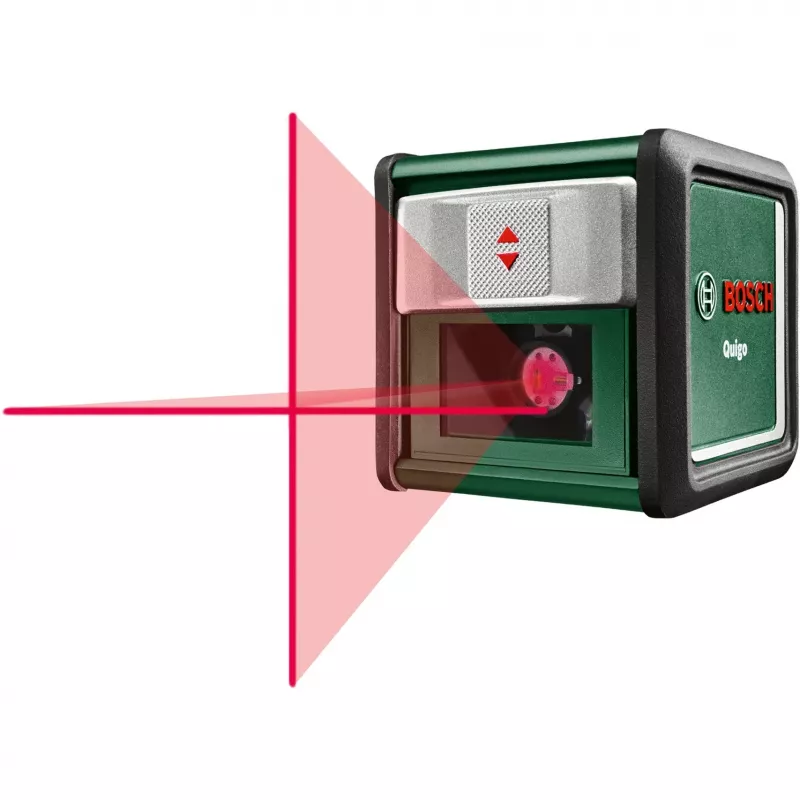

On a busy construction site, a drywall installer needs to mount shelves perfectly level across a long wall. The Bosch Quigo III cross line laser projects crisp horizontal and vertical lines simultaneously, making alignment quick and precise. Its compact size and integrated clamp allow for easy attachment to various surfaces, freeing both hands for marking and installation.

Key specifications

• Laser diode: 635 nm, class 2
• Working range: up to 10 m
• Accuracy: ±0.8 mm/m
• Self-levelling range: ±4°, levelling time: 6 s
• Power supply: 2 x 1.5 V LR03 (AAA) batteries, up to 4 h operating time
• Dust and splash protection: IP 54
• Tripod thread: 1/4"
• Operating temperature: +5 °C to +40 °C

Why choose it

The Quigo III delivers reliable performance in a lightweight, easy-to-handle design. Its automatic pendulum levelling ensures accurate lines within seconds, while the included MM2 universal clamp provides flexible mounting options on pipes, edges, or tripods. The IP54 rating means it can withstand dusty job sites and occasional splashes.

Ideal use cases

• Aligning tiles, cabinets, and shelving
• Installing electrical outlets and switches at consistent heights
• Hanging pictures or mirrors level
• Setting out interior partitions and stud walls
• Laying out flooring or ceiling grids

Good to know

The laser is not suitable for outdoor use in bright sunlight; for extended outdoor applications, consider a laser receiver or a green beam model. Always switch off the pendulum lock during transport to protect the levelling mechanism. The unit is powered by two AAA batteries, which are easy to replace on site.
