Brazo de montaje para pantalla plana B-TECH SYSTEM X VESA 400 con inclinación para BT8390, negro, 70 kg de capacidad de carga

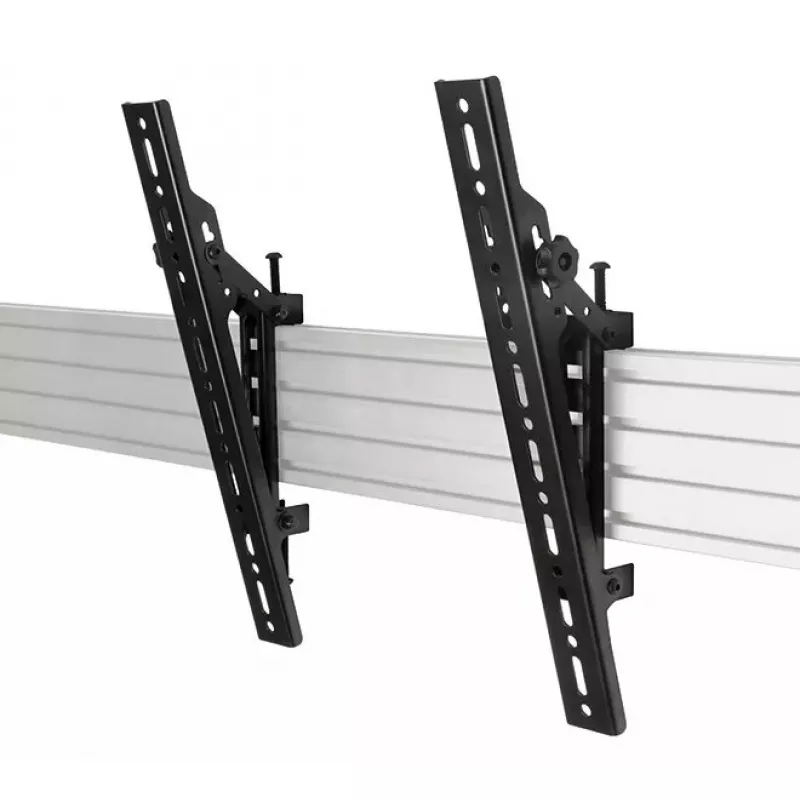

Flat panel mount arm B-TECH SYSTEM X VESA 400 with tilt for BT8390, black, 70 kg capacity is a slim interface arm designed to secure a single flat screen up to 70" and 70 kg to compatible SYSTEM X horizontal mounting rails. The arm provides a VESA 400 mounting pattern, tilt adjustment up to 20° via thumbwheels, and post-installation levelling using integrated levelling screws. With a slim profile of 42.5 mm width and 430 mm height, the arm supports both landscape and portrait orientations and is intended for commercial and residential installations that require stable, adjustable mounting of small to medium screens.

Advantages

This B-TECH SYSTEM X VESA 400 interface arm offers a high load capacity of 70 kg while maintaining a slim 42.5 mm profile and a 430 mm height for unobtrusive mounting. Tool-less tilt adjustment with thumbwheels allows quick on-site angle changes up to 20°, and levelling screws provide fine vertical adjustment after installation. The universal design supports both landscape and portrait mounting and integrates directly with System X horizontal rails, making it suitable for single-row and multi-screen installations.

Suitable for

• Mounting a single flat panel display up to 70" in commercial or residential settings
• Single-row video walls or multi-screen runs using System X horizontal rails
• Installations requiring tilt adjustment and post-installation levelling
• Displays that need either landscape or portrait orientation

Key specifications

• Maximum weight capacity: 70 kg
• Maximum screen size supported: 70"
• Number of displays supported: 1
• Product colour: Black
• VESA interface: 400 mm pattern

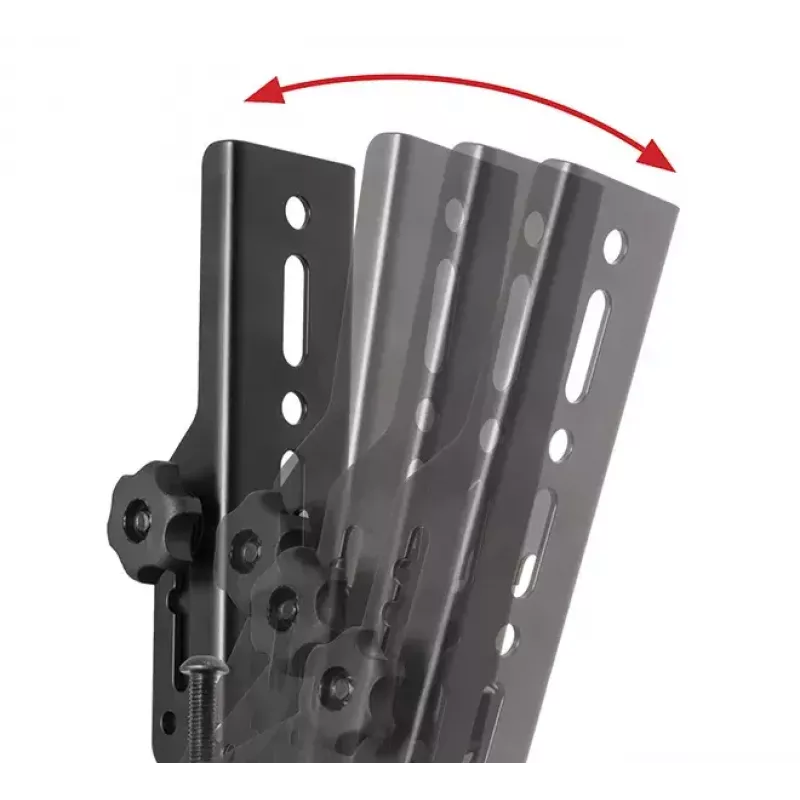

• Tilt adjustment: up to 20° using thumbwheels (tool-less)

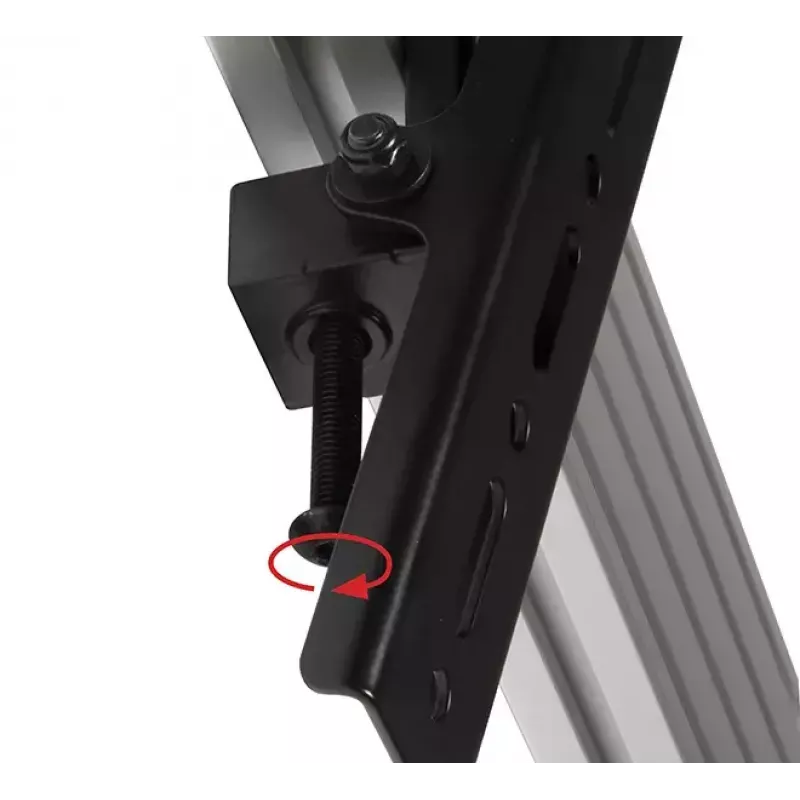

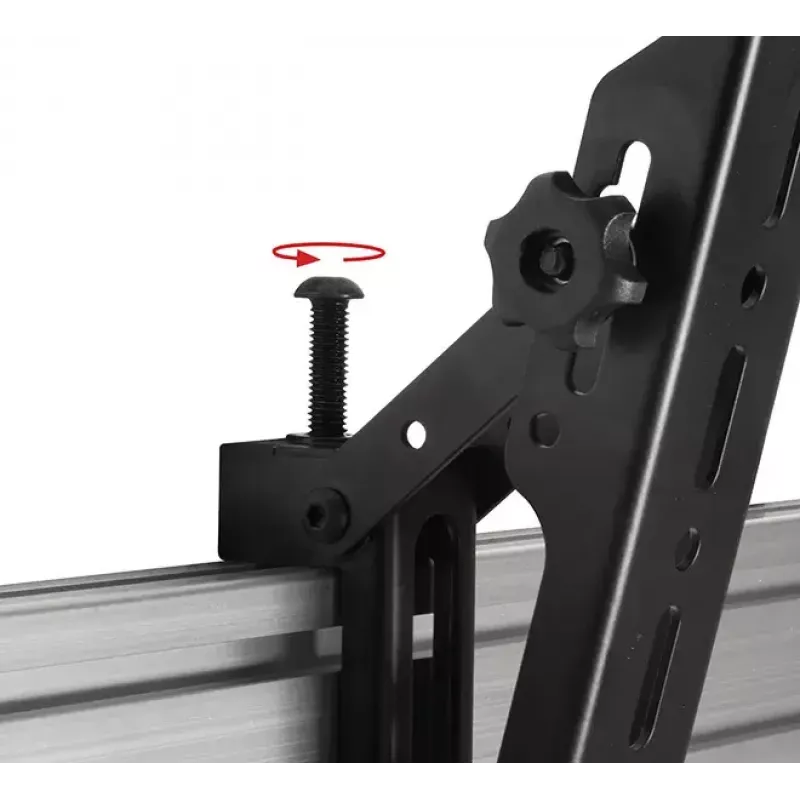

• Post-installation levelling: integrated levelling screws
• Profile dimensions: 42.5 mm width, 430 mm height
• Compatible with: SYSTEM X horizontal mounting rails

How to use

Attach the interface arm to a compatible SYSTEM X horizontal rail according to the rail manufacturer's instructions, ensuring the rail and fixings are rated for the combined weight. Secure the display to the VESA 400 pattern on the arm, using appropriate screws for the screen model. Use the levelling screws to adjust vertical alignment after the screen is mounted. Adjust the tilt angle with the thumbwheels to the desired up to 20° position; thumbwheels allow fine tool-less adjustment and can be re-tightened to maintain angle. Verify all fastenings and the overall stability before leaving the installation.

Recommendations

Ensure the supporting SYSTEM X rail and building fixings are rated for at least the weight of the display plus a safety margin. Use manufacturer-recommended hardware for VESA 400 mounting and follow local installation regulations. For repeated adjustments or heavy screens near the 70 kg limit, check fixings periodically and re-tighten levelling screws and thumbwheels as needed.
