Brennenstuhl Cargador portátil para VE Type 2 CEE 11 kW con cable de 8 m

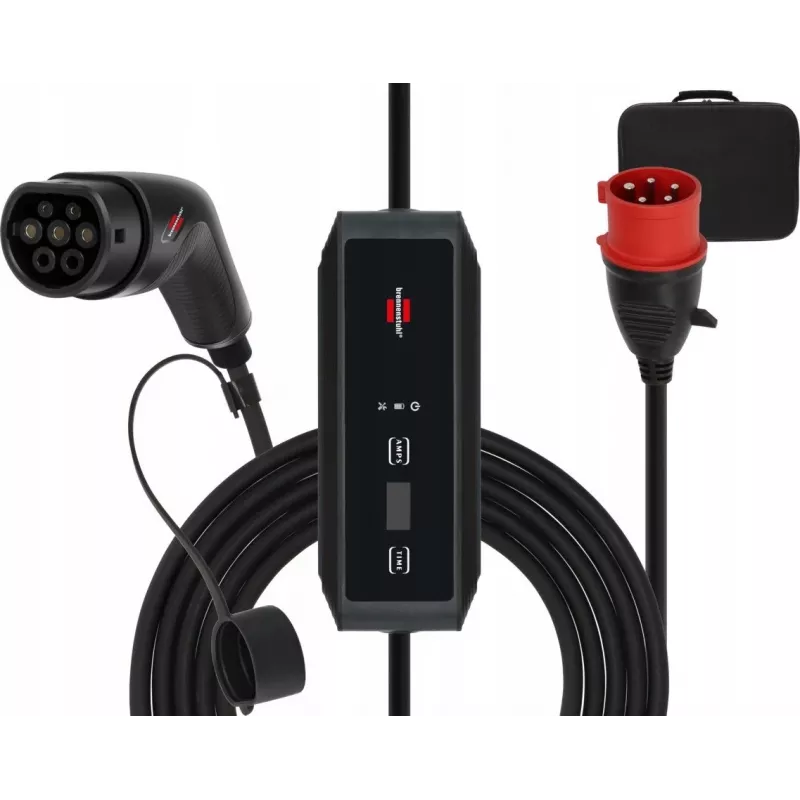

The Brennenstuhl Portable EV Charger Type 2 CEE 11 kW with 8 m Cable is a reliable and versatile charging solution for electric vehicles. Designed for mobile use, it allows you to charge your EV at any compatible CEE 16A 3-phase outlet, providing fast and safe charging at up to 11 kW.

Advantages

Portable design for on-the-go charging; robust IP65 control box ensures durability in outdoor conditions; comprehensive safety features including overcurrent, undervoltage, overvoltage, short circuit, and overtemperature protection; integrated RCD Type A + DC 6 mA for enhanced safety; LED status indicator for easy monitoring.

Suitable for

• All electric vehicles with Type 2 (IEC 62196-2) charging inlet
• Charging at campsites, industrial sites, or any location with CEE 16A 3-phase outlets
• Home and mobile use

Key specifications

• Charging Power: 11 kW (3-phase)
• Input Plug: CEE 16A (3-phase)
• Output Connector: Type 2 (IEC 62196-2)
• Cable Length: 8 m
• Input Voltage: 400 V AC
• Input Current: 16 A per phase
• Frequency: 50 Hz
• Protection Class (Control Box): IP65
• Protection Class (Plugs): IP44
• Operating Temperature: -25°C to +45°C
• Safety: Overcurrent, Undervoltage, Overvoltage, Short Circuit, Overtemperature, RCD Type A 30 mA AC + DC 6 mA
• Status Indicator: LED
• Housing Material: Robust plastic
• Charging Standard: IEC 61851-1, IEC 62752
• Certifications: CE

Recommendations

For optimal performance, ensure your vehicle is compatible with Type 2 charging and that the outlet provides 400 V 3-phase power. Always follow safety guidelines and use the charger in accordance with the manufacturer's instructions.
