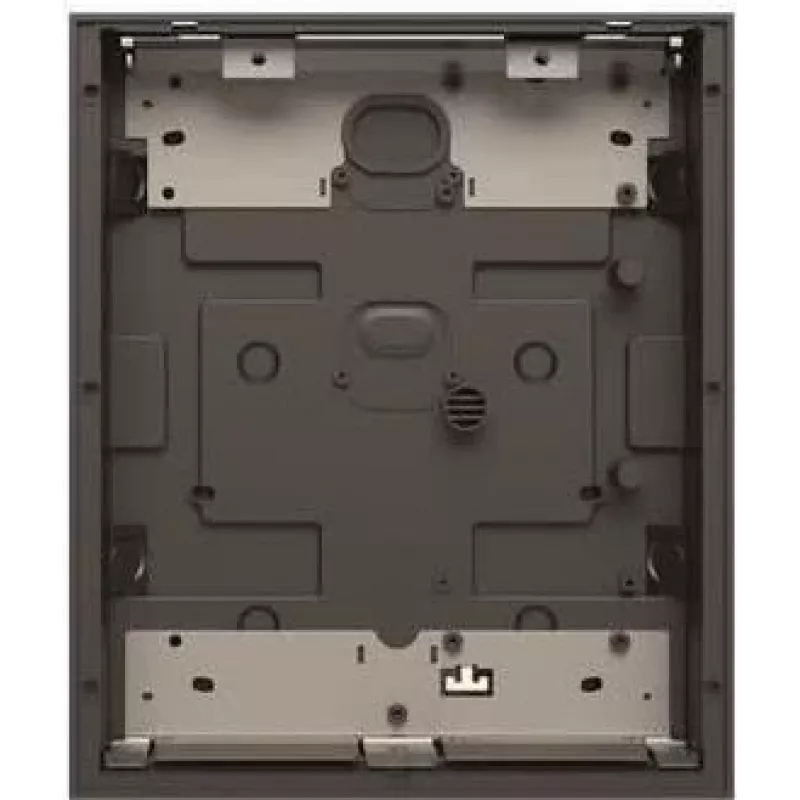

BUSCH-JAEGER 41386F-B-03 caja de instalación empotrada, tamaño 2/3, antracita, 275x233x46 mm 2TMA130160B0056

Electricians and installers working on commercial or residential projects need a reliable enclosure for modular devices. The BUSCH-JAEGER 41386F-B-03 installation box provides a robust flush-mounted solution for ABB System pro M compact components. Its anthracite thermoplastic body blends into modern interiors while offering ample space for wiring and device mounting.

Key specifications

• Type: Installation box, flush-mounted (Unterputz)
• Size: Gr. 2/3 (for multiple modular devices)
• Colour: Anthracite (RAL 7021)
• Material: Halogen-free thermoplastic, self-extinguishing
• Dimensions: 275 x 233 x 46 mm (W x H x D)
• Protection class: IP30
• Operating temperature: -5 to +60 °C
• Storage temperature: -25 to +70 °C
• Cable entries: Multiple pre-punched entries
• Standards: IEC/EN 60670-1, glow-wire test 850 °C (IEC 60695-2-11)

Why choose it

This box is built for safety and durability. The halogen-free thermoplastic reduces toxic smoke in case of fire, and the self-extinguishing property adds an extra layer of protection. Pre-punched cable entries speed up installation, while the anthracite finish matches contemporary switch ranges.

Ideal use cases

• Flush-mounted installations in dry indoor areas
• Grouping multiple modular devices such as switches, sockets, or data outlets
• Projects requiring compliance with IEC/EN 60670-1
• Commercial buildings where halogen-free materials are specified

Good to know

The box is designed for ABB System pro M compact components, ensuring perfect alignment and secure mounting. With an IP30 rating, it is suitable for protected indoor environments. The generous internal space accommodates wiring and connectors without cramping.
