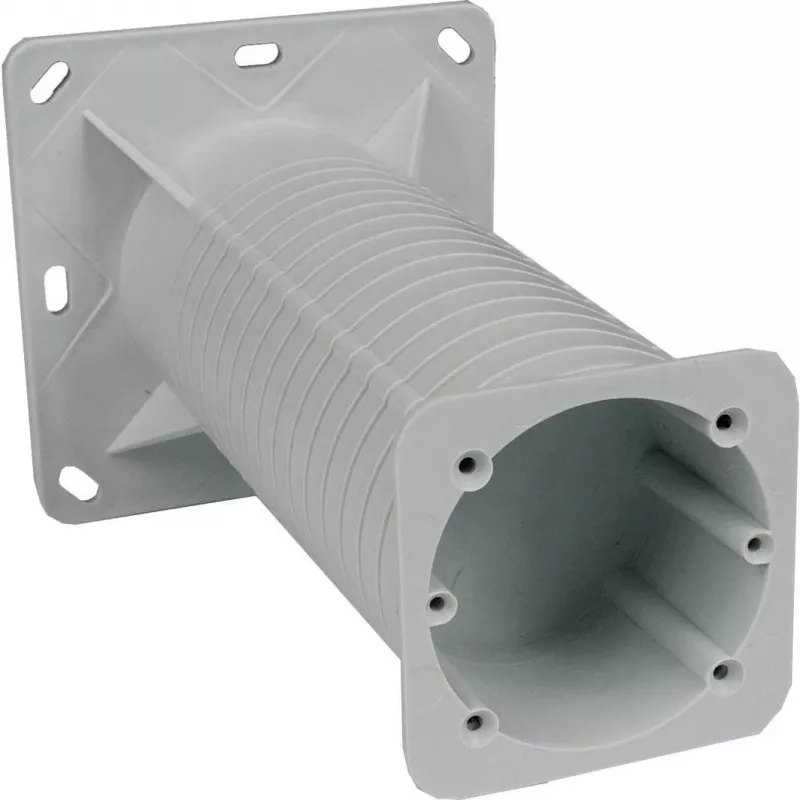

KOPOS KEZ_KB Caja de instalación eléctrica para fachadas con aislamiento térmico, 120x120mm, Gris/Naranja

The KOPOS KEZ_KB is a high-quality electrical installation box specifically designed for mounting electrical devices on insulated facades. It ensures a secure and thermally efficient installation, preventing thermal bridges and accommodating insulation thicknesses from 100 to 250 mm. Made from self-extinguishing, halogen-free polypropylene, this box offers excellent durability and safety.

Advantages

• Adjustable depth for insulation thickness 100-250 mm
• Halogen-free, self-extinguishing PP material for enhanced safety
• Prevents thermal bridges, improving energy efficiency
• UV-stable for long-term outdoor use
• Easy surface mounting on thermal insulation

Suitable for

• Mounting electrical sockets, switches, and junction boxes on insulated external walls
• Use in ETICS (External Thermal Insulation Composite Systems)
• New construction and renovation projects requiring facade insulation

Key specifications

• Product Type: Electrical Installation Box

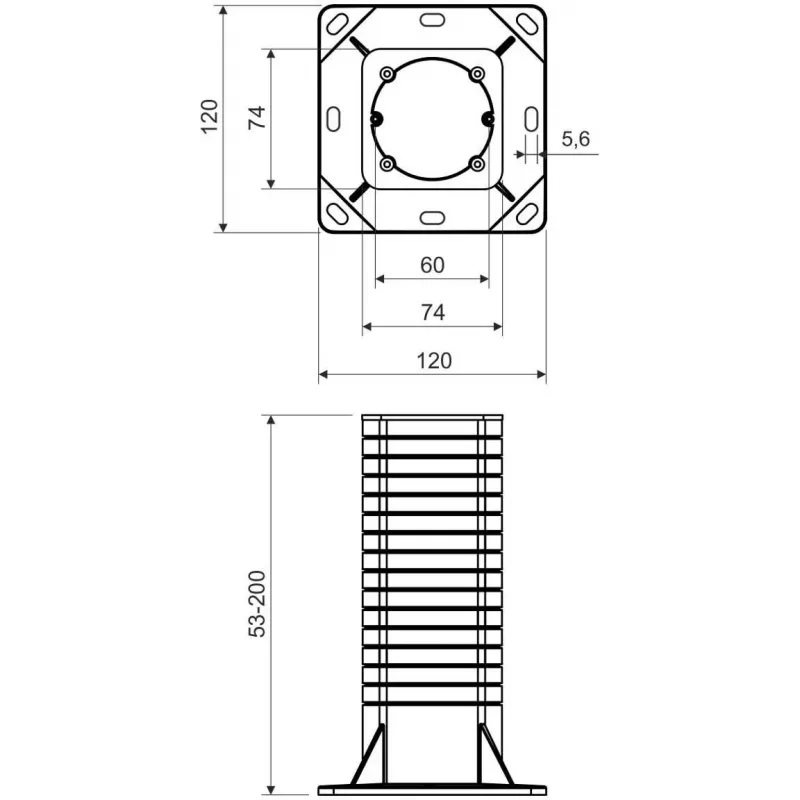

• Base Plate Dimensions: 120 x 120 mm
• Internal Device Mounting Space: 110 x 110 x 50 mm
• Insulation Thickness Compatibility: 100 - 250 mm (Adjustable)
• Material: Self-extinguishing halogen-free Polypropylene (PP)
• Protection Rating: IP30 (when installed)
• Temperature Resistance: -25 °C to +60 °C
• Load Capacity: 40 N (for mounted device)
• Color: Grey / Orange
• Certifications: CE

Recommendations

Ensure the box is properly sealed and installed according to local regulations. For optimal thermal performance, use appropriate sealing materials around the box. The adjustable depth feature allows flexibility for various insulation thicknesses.
