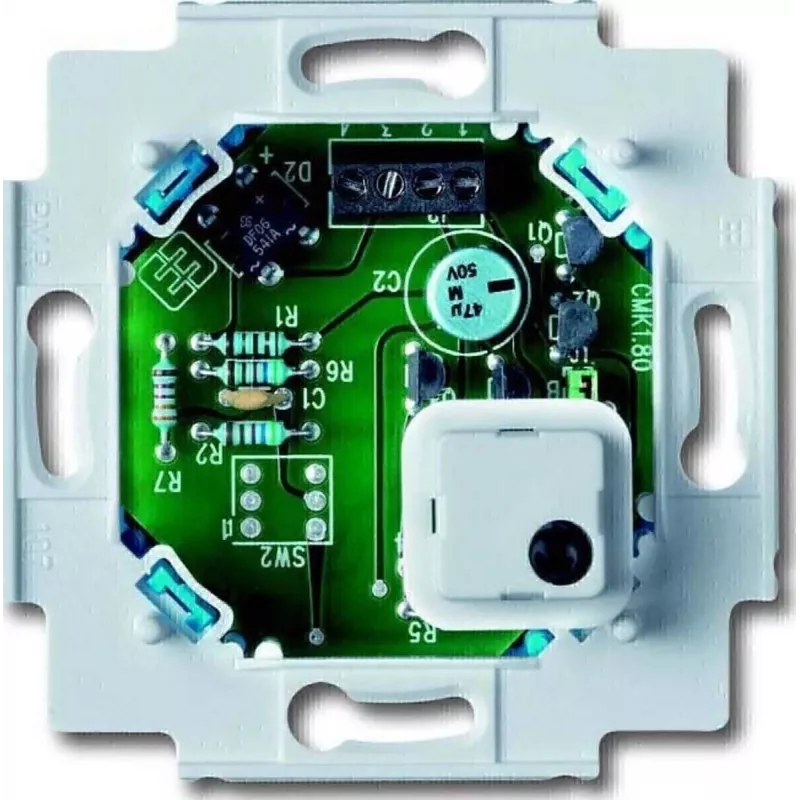

Busch-Jaeger base de pulsador de señal y rearme 1520/1 UK-101, técnica de seguridad, 1 contacto de cierre, empotrado 2CKA001582A0429

Signal and reset button insert for safety technology applications, featuring a momentary contact function with one normally open contact. Designed for flush-mounted installation, it provides reliable switching for signal and reset circuits in safety-related systems.

Advantages

Halogen-free thermoplastic construction ensures environmental compatibility. Screw terminals allow secure and straightforward wiring. The insert is compatible with a range of Busch-Jaeger cover plates, including Busch-Duro 2000 SI, Reflex SI, and future® linear, enabling integration into existing switch ranges.

Suitable for

• Safety technology circuits requiring a momentary signal or reset function
• Flush-mounted installations in residential and commercial buildings
• Use with compatible Busch-Jaeger rocker/cover plates (sold separately)

Key specifications

• Contact configuration: 1 normally open (NO)
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: screw terminals
• Material: thermoplastic, halogen-free
• Mounting type: flush-mounted
• Installation depth: 32 mm
• Operating temperature: -5 °C to +45 °C
• Storage temperature: -20 °C to +70 °C

Recommendations

For complete functionality, pair with a compatible Busch-Jaeger cover plate from the Busch-Duro 2000 SI, Reflex SI, or future® linear series.
