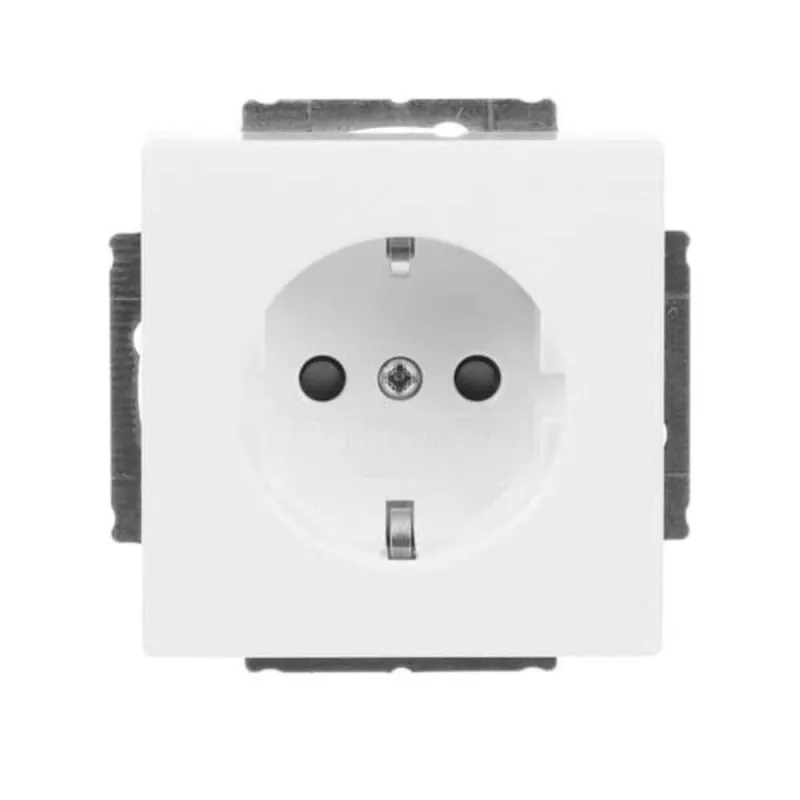

BUSCH-JAEGER BJ 23 EUCB-84 Mecanismo de toma de corriente SCHUKO estándar, blanco alpino 2CKA002013A5477

SCHUKO® standard socket insert with increased touch protection, designed for flush-mounted installation in Busch-Jaeger modular switch ranges. The insert features screw terminals, a rated voltage of 250 V AC and a rated current of 16 A, making it suitable for a wide range of electrical installations. Its thermoplastic housing is halogen-free and finished in glossy alpine white.

Advantages

Increased touch protection enhances safety, particularly in environments where children are present. The halogen-free thermoplastic material contributes to a reduced environmental impact. The insert is compatible with cover plates and frames from Busch-Jaeger switch ranges, allowing for flexible integration into existing designs.

Suitable for

• Residential and commercial electrical installations
• Modular switch ranges from Busch-Jaeger
• Applications requiring child protection features

Key specifications

• Socket type: SCHUKO®
• Protection type: Increased touch protection
• Connection type: Screw terminals
• Rated voltage: 250 V AC
• Rated current: 16 A
• Mounting type: Flush-mounted (UP)
• Colour: Alpine white
• Material: Thermoplastic (PC)
• IP rating: IP20
• Number of sockets: 1
• Halogen-free: Yes
• Frequency: 50/60 Hz
• Surface finish: Glossy

Recommendations

For complete installation, pair this insert with a compatible cover plate and frame from the Busch-Jaeger switch range.
