BUSCH-JAEGER BJ ST/U10.2.11-811 SmartTouch 10 blanco / grafito 2TMA310050W0002

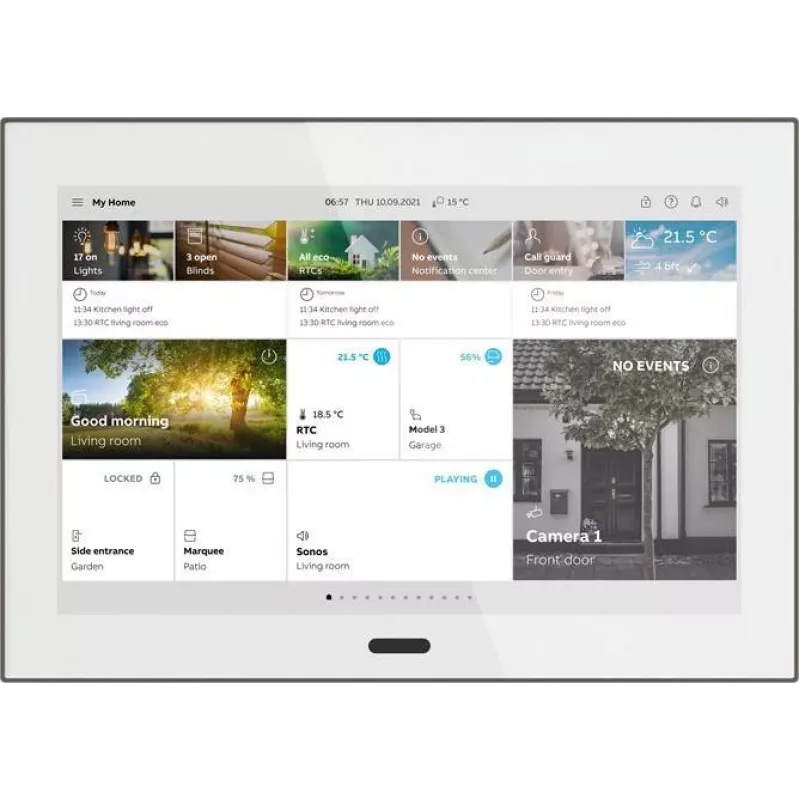

Experience a 10.1-inch capacitive TFT touchscreen with WXGA resolution (1280 x 800) on the BUSCH-JAEGER SmartTouch 10, delivering crisp visuals for KNX visualization, door communication, and IP camera integration.

Overview

The BUSCH-JAEGER BJ ST/U10.2.11-811 SmartTouch 10 is a flush-mounted smart wall display that combines a quad-core processor, 2 GB RAM, and 16 GB eMMC storage to run a customized Android-based operating system. It connects via Ethernet, Wi-Fi, or Bluetooth 4.0 and is powered by PoE (IEEE 802.3af) or 24 V DC.

What stands out

• Integrated temperature, proximity, and brightness sensors for smart automation
• Built-in microphone and speaker for SIP-based door communication
• Supports KNX protocol via IP gateway for seamless building control
• Scene control, timer functions, and logic functions for personalized automation

Technical details

• Display: 10.1" capacitive TFT touchscreen, 1280 x 800 pixels
• Processor: Quad-core; RAM: 2 GB; Storage: 16 GB eMMC
• Connectivity: Ethernet (RJ45), Wi-Fi 802.11 b/g/n, Bluetooth 4.0
• Power: PoE IEEE 802.3af or 24 V DC
• Mounting: Flush-mounted (in-wall)
• Colour: White / Graphite; Housing: High-quality plastic
• Operating temperature: 0°C to +45°C; Protection class: IP20

Our verdict

The SmartTouch 10 is a versatile KNX room controller with a large high-resolution display, robust connectivity, and integrated sensors, making it a strong choice for modern smart building installations.
