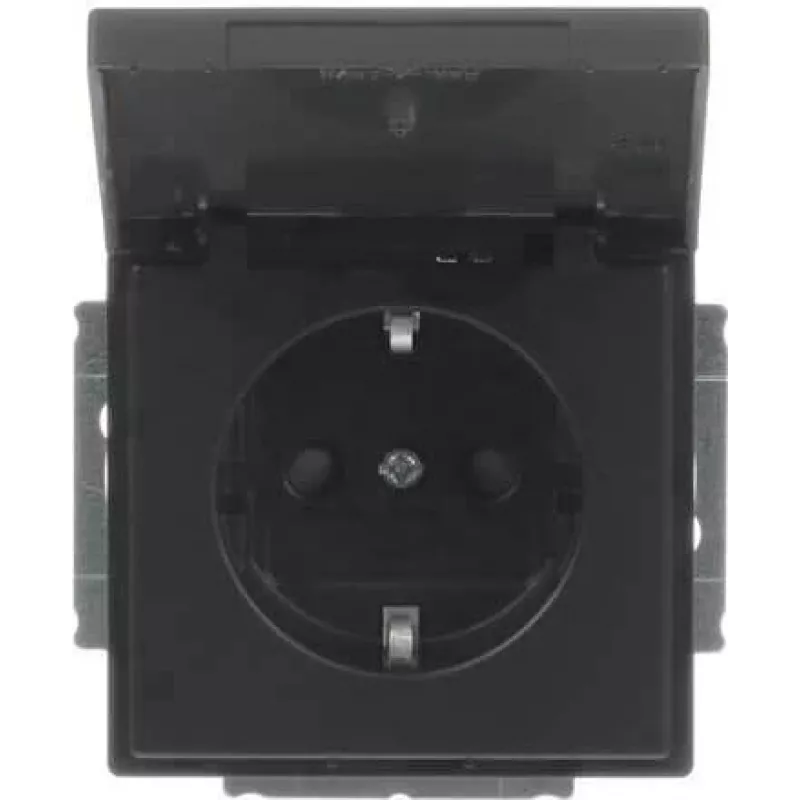

Busch-Jaeger Mecanismo de toma de corriente SCHUKO negro mate 20 EUKB-885 2CKA002018A1523

When a standard socket insert looks out of place in a modern interior, this Busch-Jaeger SCHUKO insert in matte black provides a discreet, flush-mounted power point that blends with contemporary cover frames.

Who is it for

Electricians and homeowners who need a reliable, VDE-certified socket insert for indoor installations, especially in rooms with dark or minimalist décor.

Main features

• SCHUKO (Type F) socket, rated 250 V / 16 A
• Matte black finish, halogen-free thermoplastic housing
• Screw terminals accept up to 2 x 2.5 mm² rigid conductors
• Compatible with Busch-Jaeger standard cover frames (e.g., Busch-Duro 2000®, Reflex SI, Future® linear)
• Flush-mounted design for a clean look

Specifications

• Colour: Matte black
• Material: Thermoplastic
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Number of sockets: 1
• Halogen-free: Yes
• Child protection: No
• Terminal capacity: Up to 2 x 2.5 mm² (rigid conductors)
• Number of poles: 2P+E
• Standards compliance: VDE certified, DIN VDE 0620-1
• Application: Indoor use
• Operating temperature: -5 to +40 °C
• Product series: Busch-Jaeger Standard Inserts

Tips

Pair with a matching Busch-Jaeger cover frame in a dark tone for a seamless appearance. Ensure the installation box has sufficient depth for the insert and wiring.
