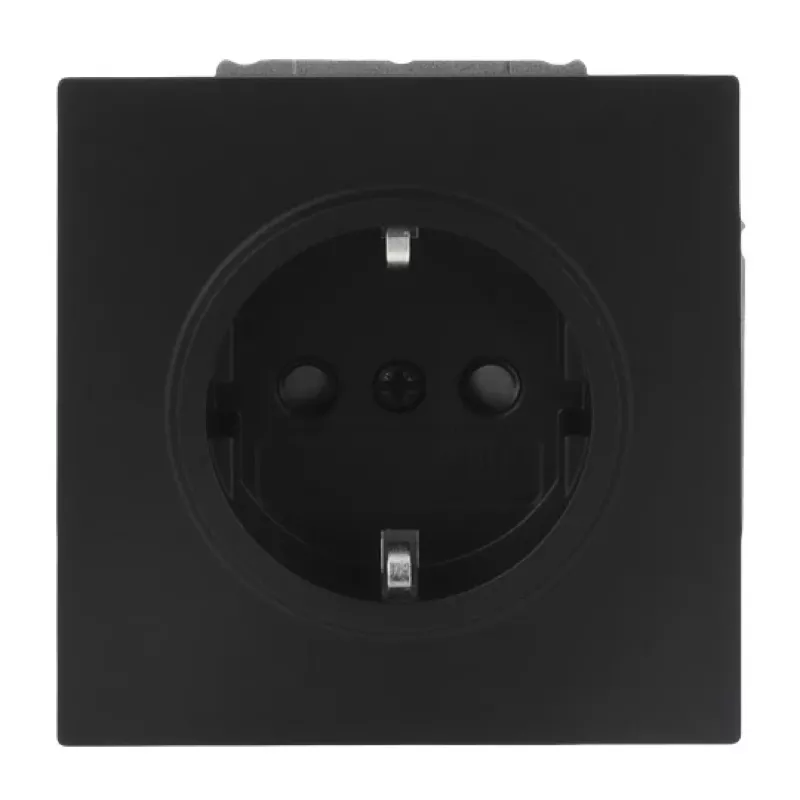

Busch-Jaeger toma SCHUKO 20 EUCB-45M Safety+ Black Matt

The Busch-Jaeger SCHUKO Socket 20 EUCB-45M Safety+ is a high-quality flush-mounted socket outlet designed for safe and reliable power distribution in residential and commercial environments. Featuring enhanced contact protection (Safety+) and a hinged cover, this socket ensures child safety and protection against dust and moisture when installed with the appropriate sealing set and frame. Its sleek Black Matt finish blends seamlessly with modern interiors.

Advantages

Enhanced child protection with Safety+ mechanism; IP44 protection when properly installed; halogen-free thermoplastic material for safety; VDE certified for quality assurance; compatible with a wide range of Busch-Jaeger frames.

Suitable for

• Flush-mounted installations in dry and damp rooms
• Residential and commercial buildings
• Use with Busch-Jaeger future® linear, solo®, carat®, and other standard frames

Key specifications

• Socket Type: SCHUKO® (Type F)
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Mounting Type: Flush-mounted
• Connection Type: Screw terminals
• Number of Gangs: 1-gang
• Enhanced Contact Protection: Yes (Safety+)
• Hinged Cover: Yes
• Degree of Protection: IP44 (with sealing set and frame)
• Material: Thermoplastic (PC/ABS)
• Color: Black Matt
• Halogen-free: Yes
• Termination: 2-pole + Earth (2P+E)
• Installation Depth: Approx. 32 mm
• Certifications: VDE
• Operating Temperature: -5 to +40 °C

Recommendations

For optimal protection, use with Busch-Jaeger sealing set and compatible frame. Ensure proper installation by a qualified electrician.
