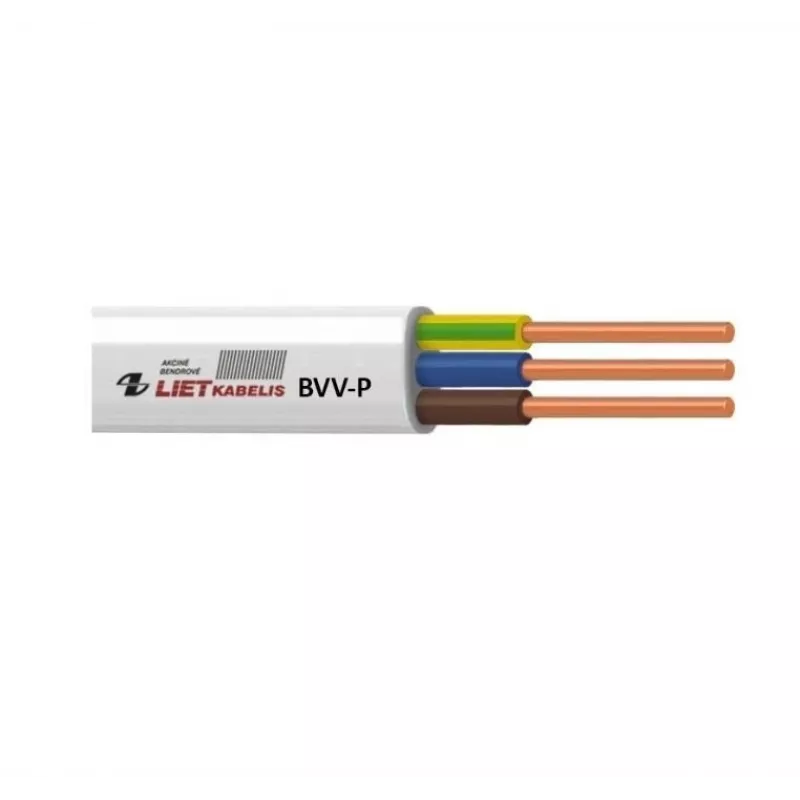

BVV-P cable plano de instalación 3x1,0 mm² blanco 100m

The BVV-P flat installation cable is designed for fixed wiring in dry indoor environments. With 3 solid copper conductors of 1.0 mm² cross-section, it is suitable for surface mounting, conduit, or under plaster. The white PVC sheath provides flame retardancy and reliable insulation.

Advantages

Flat profile saves space and simplifies routing. Solid conductors ensure stable connections. Flame retardant according to IEC 60332-1-2 for enhanced safety.

Suitable for

• Fixed installation in dry indoor areas
• Surface wiring, conduit, and under plaster
• Power supply for lighting, sockets, and small appliances

Key specifications

• Cable type: BVV-P (flat installation cable)
• Number of cores: 3
• Conductor cross-section: 1.0 mm²
• Conductor material: annealed copper, solid (Class 1)
• Insulation: PVC
• Sheath: PVC, white
• Length: 100 m
• Rated voltage: 300/500 V
• Max. operating temperature: +70°C
• Min. installation temperature: -5°C
• Flame retardant (IEC 60332-1-2)
• Approx. dimensions: 4.0 x 8.0 mm
• Standards: CE, RoHS, LST EN 50525-2-31

Recommendations

This cable is ideal for electricians and installers requiring a reliable, flat power cable for indoor fixed wiring. Ensure compliance with local regulations.
