Cable adaptador Axagon RVDM-HI14C2 Mini DisplayPort a HDMI 4K 30Hz 1,8 m

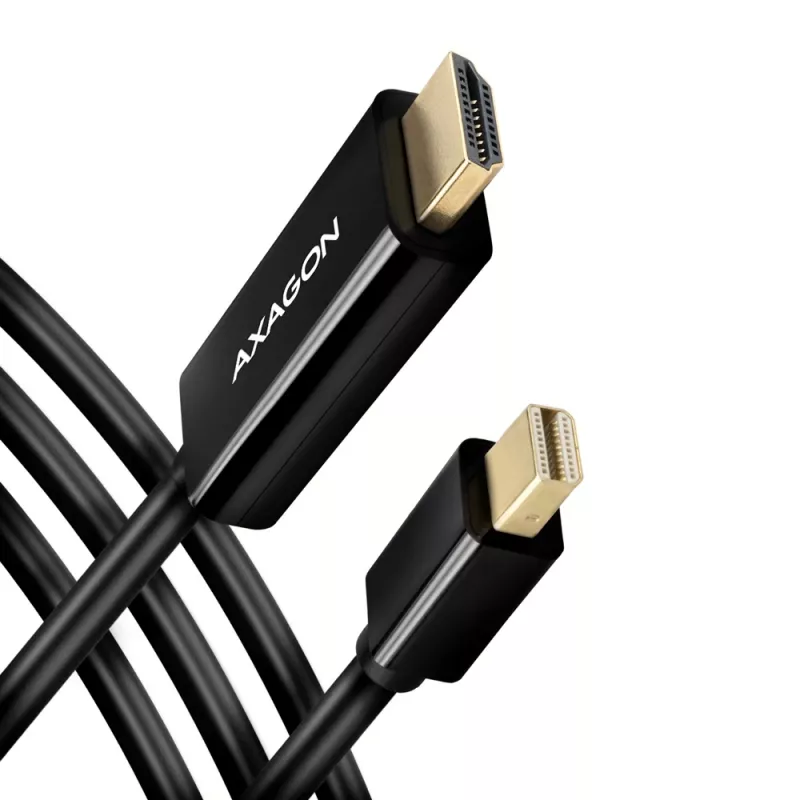

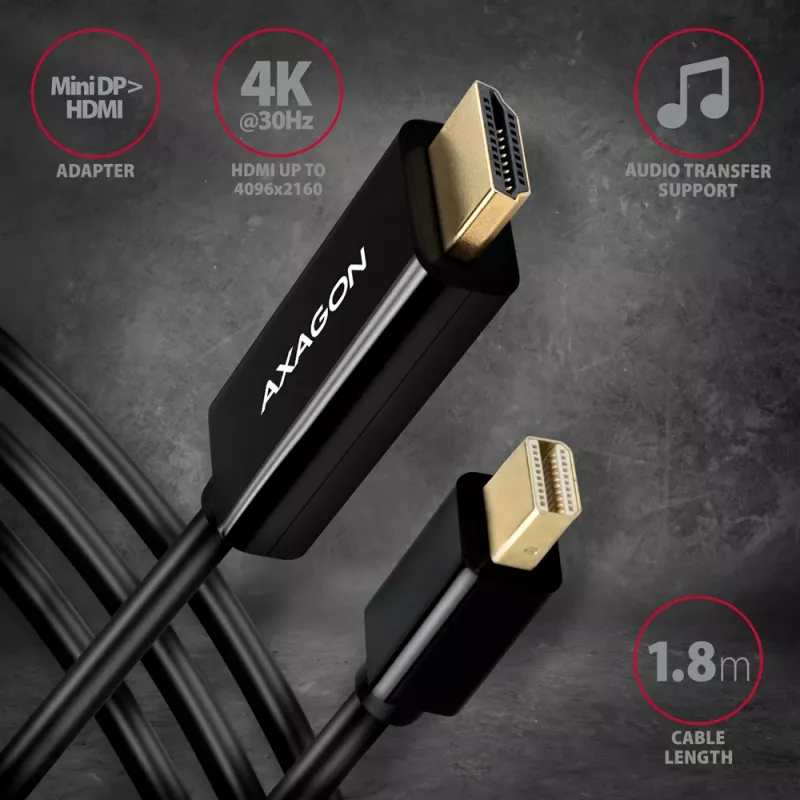

Mini DisplayPort -> HDMI active cable - adapter AXAGON RVDM-HI14C2 to connect HDMI monitor/TV/projector to the computer with the Mini DisplayPort output.

The smart hardware converter without the need for any installation or setup ensures high-quality transfer of image and sound with a resolution up to 4K/30Hz.

Video and audio transfer from a computer or laptop will now be easy. Compact dimensions ensures easy use even in insufficient space. It is an ideal solution - you don't need a HDMI cable and converter. With this active cable everything is integrated into one compact unit.

The cable is only one-way, i.e. Mini DisplayPort to HDMI, not otherwise.

Input:
• Mini DisplayPort v1.2

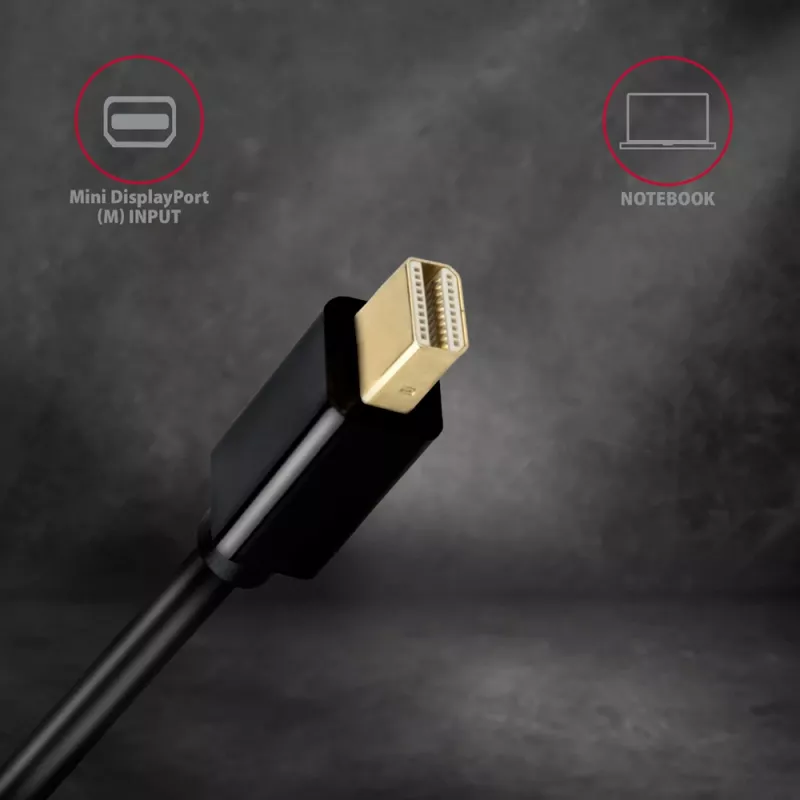

• Mini DP male connector (M)

Output:
• HDMI v1.4b

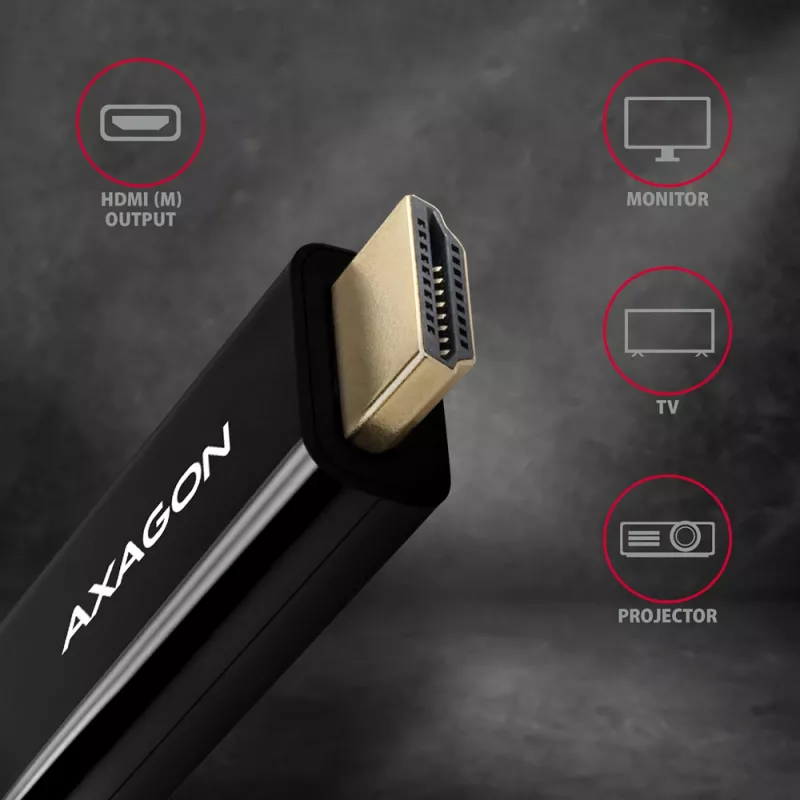

• HDMI A (M) male connector

Supported resolutions:
Resolution and frequency depend on monitor and graphics adapter.
• max. 4096 x 2160 (19:10) @30Hz DCI 4K
• 3840 x 2160 (16:9) @30Hz UHD-1 4K (UHDTV)
• 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p)
• 3840 x 1200 (32:10) 29:9 4K (Super ultrawide 1200p)
• 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p)
• 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p)
• 2560 x 2048 (5:4) QSXGA
• 2560 x 1920 (4:3)
• 2560 x 1600 (16:10) WQXGA
• 2560 x 1440 (16:9) @60Hz WQHD
• 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p)
• 2048 x 1536 (4:3) QXGA
• 2048 x 1152 (16:9) QWXGA
• 1920 x 1440 (4:3)
• 1920 x 1200 (16:10) WUXGA
• 1920 x 1080 (16:9) @60, 75, 100 a 120Hz Full HD/1080p
• 1856 x 1392 (4:3)
• 1792 x 1344 (4:3)
• 1680 x 1050 (16:10) WSXGA+
• 1600 x 1200 (4:3) UXGA
• 1600 x 900 (16:9) HD+
• 1536 x 864 (16:9)
• 1440 x 900 (16:10) WXGA+
• 1400 x 1050 (4:3) SXGA+
• 1366 x 768 (16:9) HD
• 1360 x 768 (16:9) HD
• 1280 x 1024 (5:4) SXGA
• 1280 x 960 (4:3) SXGA-
• 1280 x 800 (16:10) WXGA
• 1280 x 768 (5:3) WXGA
• 1280 x 720 (16:9) HD/WXGA/720p
• 1280 x 600
• 1152 x 864 (4:3) XGA+
• 1024 x 768 (4:3) XGA
• 800 x 600 (4:3) SVGA

Other features:
• sound transfer support
• DDC (Display Data Channel) support - Intelligent setting of resolution, frequency and other parameters according to the source graphics chip
• supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area
• HPD (Hot-Plug-Detect) support - communication sequence controlling the connection/disconnection of the device while running,
• HDCP 1.4 and 2.2
• support of power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV)

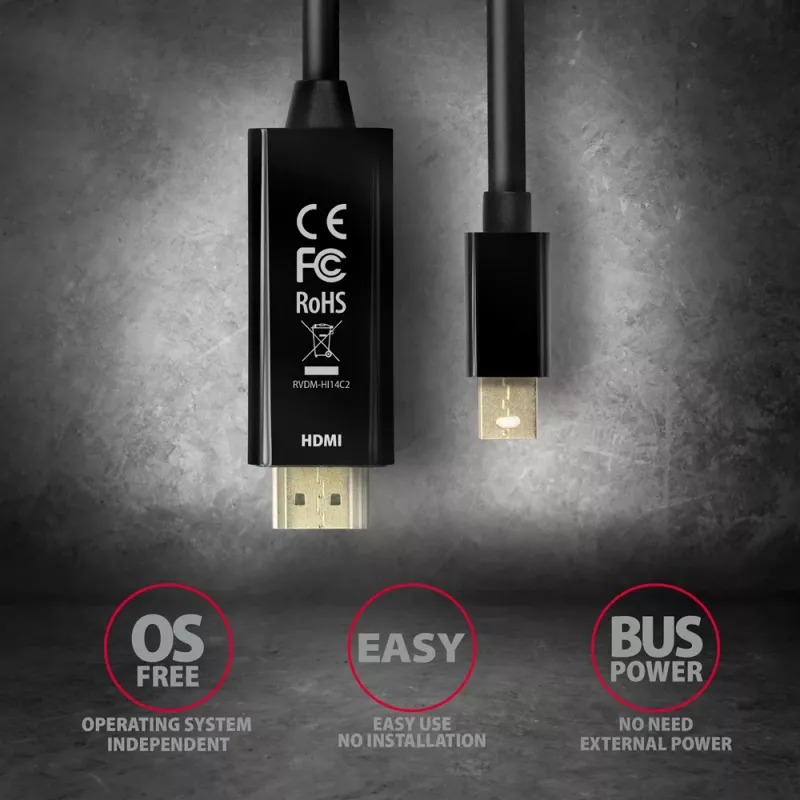

• power supply via bus - no external power is needed
• gold-plated connectors for perfect contact and oxidation limitation
• adapter dimensions 45 x 21 x 12 mm
• total cable length incl. connector 1.8 m
• weight only 62 g

Supported operating systems:
• All versions of MS Windows, Mac OS X, Linux and other operating systems.
• It is a pure hardware converter, the transfer is provided only by the cable chip without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

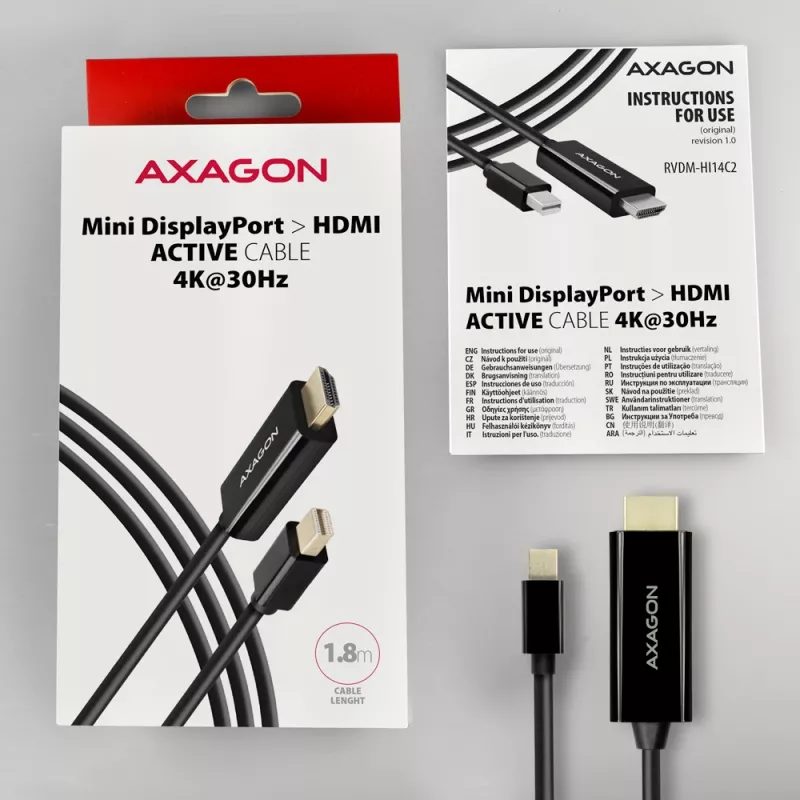

Package contains:
• Mini DisplayPort > HDMI cable length 1.8 m,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

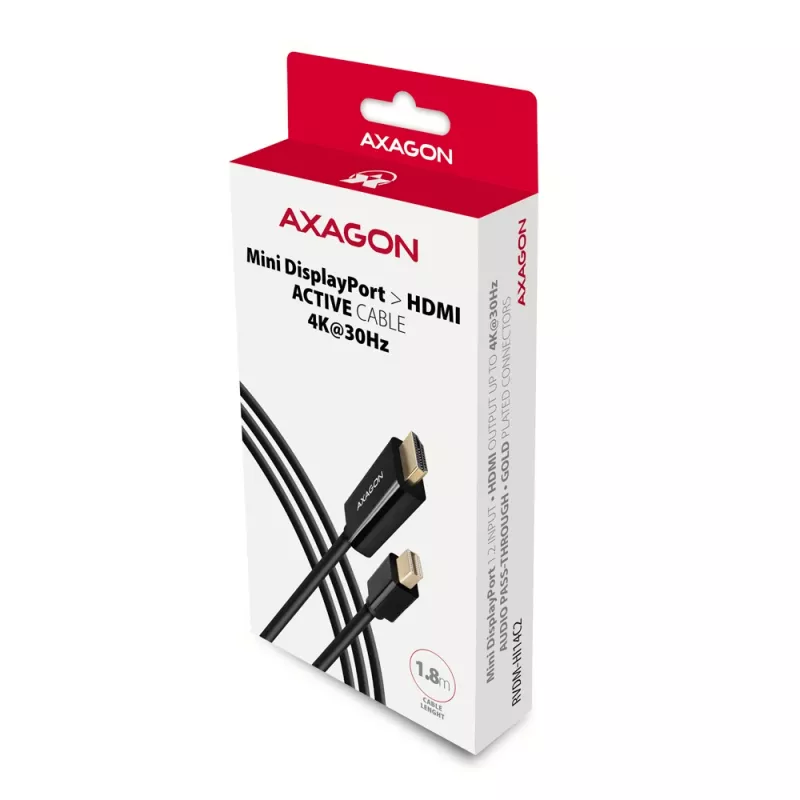

• packed in a cardboard box.

How to use

Insert the Mini DisplayPort (male) connector into the source device’s Mini DisplayPort output and plug the HDMI (Type A) connector into the target display’s HDMI input. The cable performs active conversion automatically; no drivers or software installation are required. Ensure the source device and display are powered on and set the display input to the HDMI port if necessary. The adapter is unidirectional and will only convert from Mini DisplayPort to HDMI.

Recommendations

For optimal results, use with devices that support Mini DisplayPort v1.2 and displays compatible with HDMI v1.4b. Maximum 4K performance is achieved at 30Hz; for higher refresh rates at 4K, verify both source and display support the required specifications or consider an alternative adapter with HDMI 2.0/DP 1.4 support.
