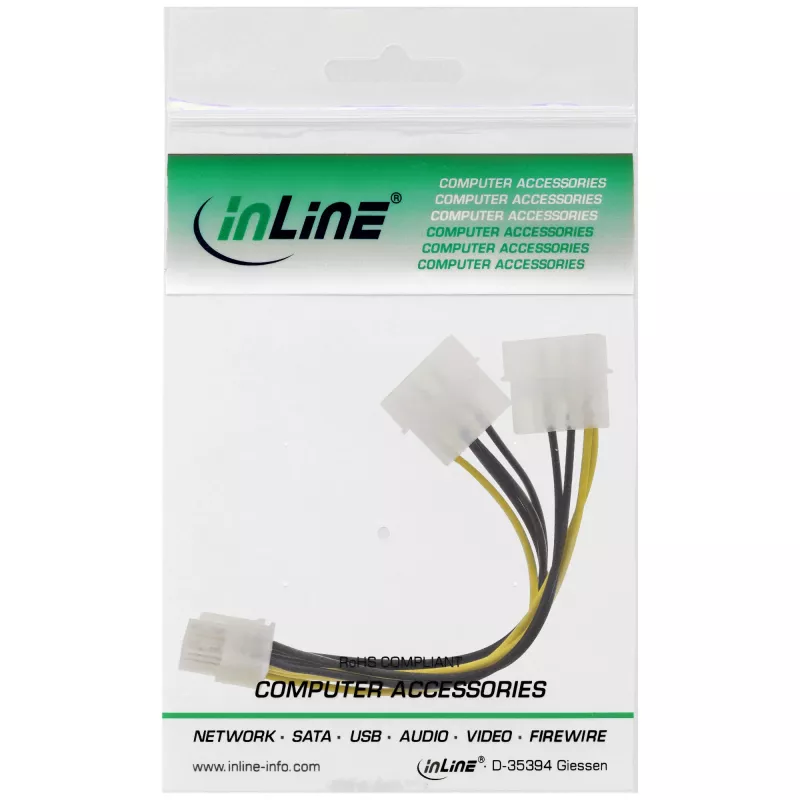

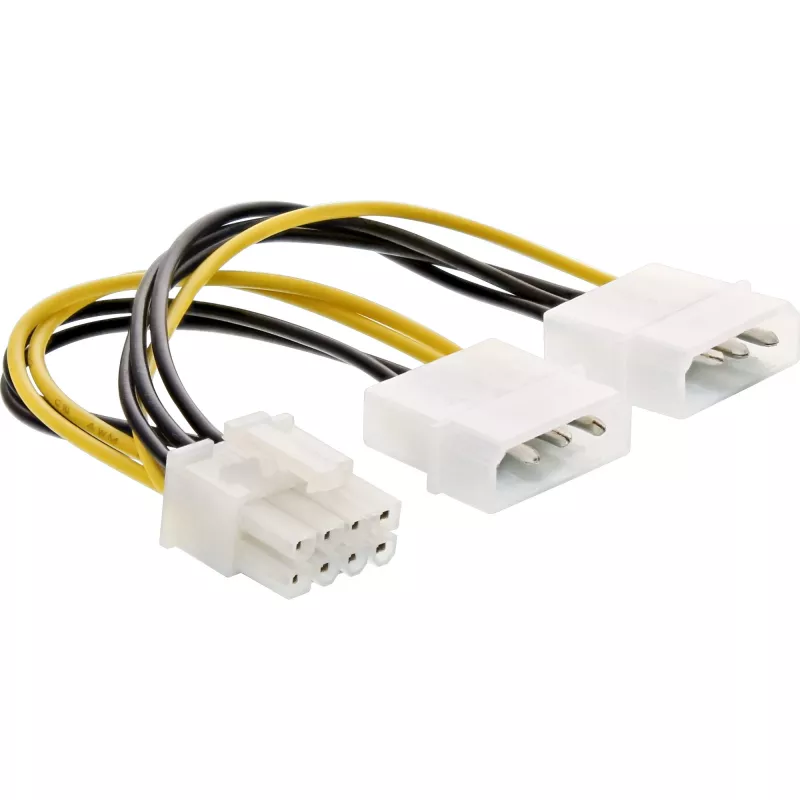

Cable adaptador de corriente InLine, 2 conectores macho de 5,25 pulgadas / conector macho PCI-Express de 8 pines, 0,15 m

This InLine power adaptor cable converts two 5.25" (Molex) male connectors into a single 8‑pin PCI‑Express male connector. With a 0.15 m length, it is intended to provide an 8‑pin power feed from standard peripheral power connectors when a direct PCI‑Express cable is not available. The compact design helps keep cable routing tidy inside desktop PC cases.

Advantages

The adaptor supports connection of PCI‑Express graphics cards that require an 8‑pin power input by using two Molex peripheral plugs. Its short 0.15 m length reduces clutter and the simple plug‑and‑play design requires no tools or modification of existing power supply cables. The in‑line form factor is suitable for tight spaces inside computer cases.

Suitable for

• Providing 8‑pin PCI‑Express power to graphics cards from two Molex (4‑pin) connectors
• Temporary or emergency power connections when a dedicated PCI‑E cable is unavailable
• Cable routing in compact PC builds where space is limited

Key specifications

• Brand: InLine
• Model/MPN: 26628C
• EAN: 4043718250080
• Connector A: 2 x Molex 4‑pin (5.25" male)
• Connector B: PCI‑Express 8‑pin male
• Cable length: 0.15 m
• Product colour: Multicolour
• Category: PC Internal Cables

How to use

Power off the PC and disconnect it from mains power before connecting the adaptor. Insert the two 5.25" (Molex) male plugs into available peripheral power sockets from the power supply, and connect the 8‑pin PCI‑Express male plug to the graphics card's 8‑pin power inlet. Verify the connectors are fully seated and routed to avoid contact with fans or moving parts. Reconnect mains power and power on the system to confirm the graphics card receives power.

Recommendations

Use this adaptor only as intended: to convert two Molex peripheral connectors to an 8‑pin PCI‑Express power plug. Ensure your power supply can provide sufficient current on the Molex rails for the graphics card's requirements. Do not attempt to modify the cable or use it with incompatible connectors or voltages.
