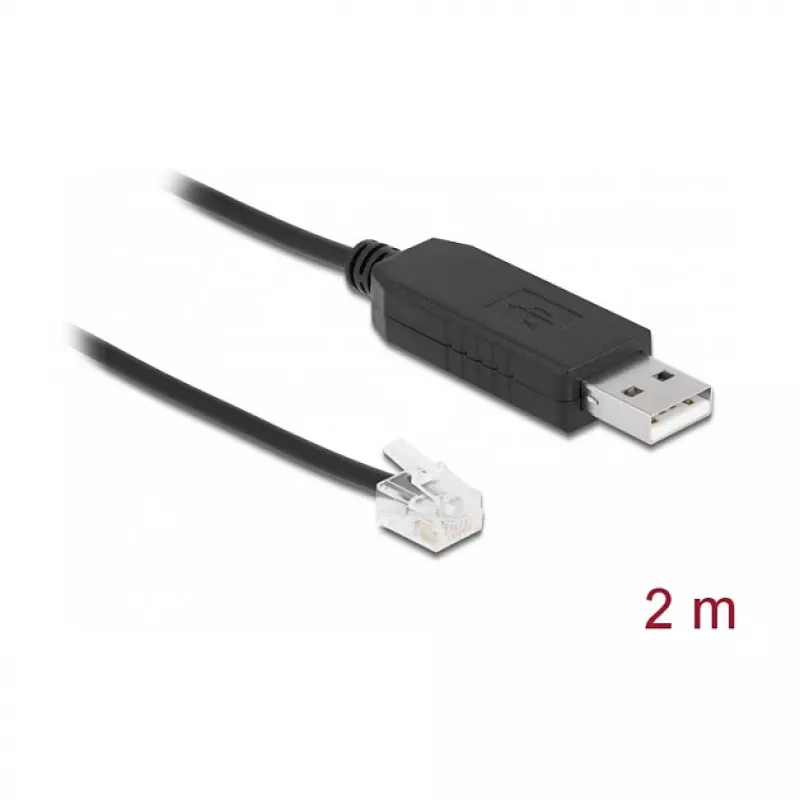

Cable adaptador DeLOCK USB Type-A a serie RS-232 RJ12 protección ESD 2 m negro

The DeLOCK adapter cable converts USB Type-A to a serial RS-232 RJ12 connection and includes ESD protection. With a 2 m length and black jacket, it is designed to connect USB hosts to devices that use an RJ12 serial interface for control and monitoring tasks, such as rack power distribution units and rack transfer switches from APC.

Advantages

The cable provides a reliable USB-to-RS232 RJ12 connection with built-in ESD protection to reduce the risk of electrostatic damage. Its 2 m length offers convenient reach in server racks and network cabinets while the USB 2.0 Type-A connector ensures compatibility with common host ports.

Suitable for

• Controlling APC rack power distribution units (PDUs)
• Monitoring and configuring rack transfer switches
• Connecting devices with RJ12 serial interfaces to computers with USB Type-A ports
• Service and maintenance tasks in server rooms and data centres

Key specifications

• Brand: DELOCK
• Model / MPN: 66736
• Cable length: 2 m

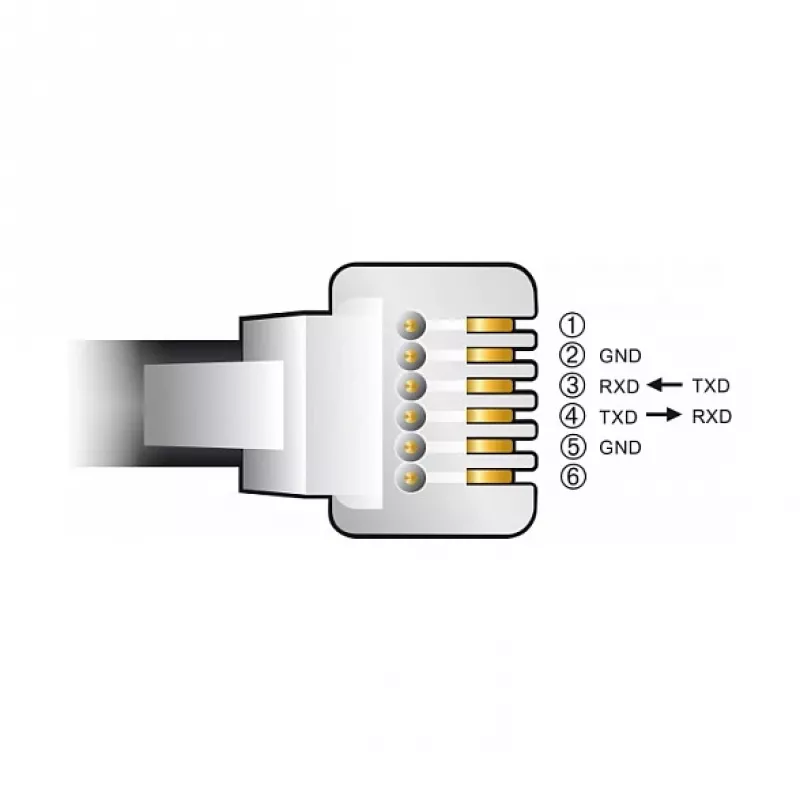

• Connector 1: RJ-12 (serial RS-232)
• Connector 2: USB 2.0 Type-A
• Product colour: Black
• Feature: ESD protection

How to use

Connect the USB Type-A plug to an available USB port on the host computer. Attach the RJ12 connector to the serial port of the target device (for example, an APC PDU or transfer switch). Install any required drivers on the host if prompted, configure the serial communication parameters (baud rate, parity, data bits, stop bits) according to the device specifications, and verify communication via the chosen terminal or management software.

Recommendations

Use the cable in typical indoor IT environments, avoiding excessive bending or mechanical strain. Ensure drivers and serial settings match the target device. For installations in high-ESD or harsh environments consider additional grounding and environmental protection measures.
