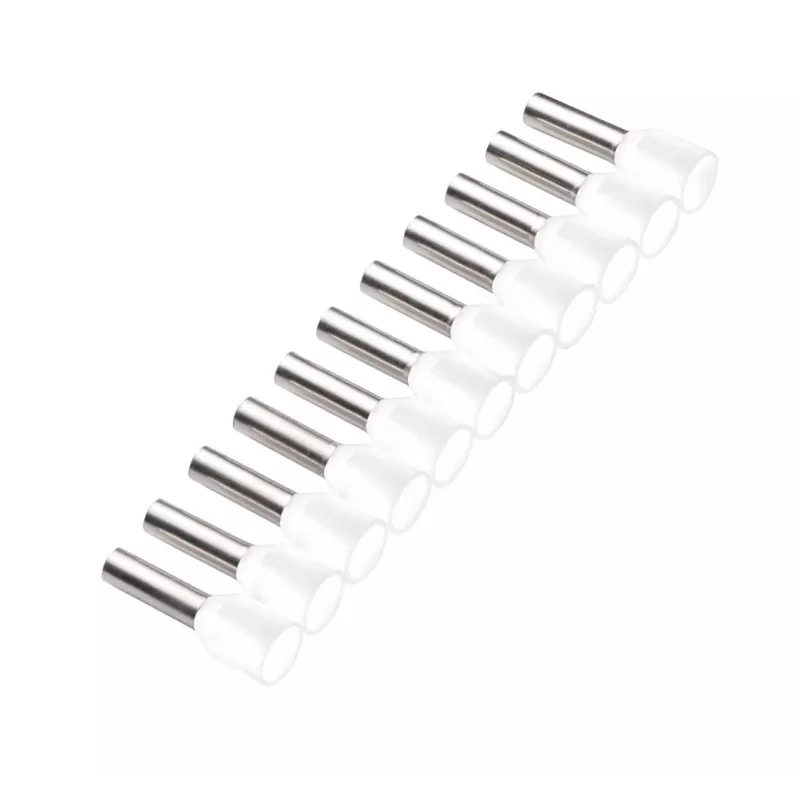

Cimco 187505 Terminal de empalme parcialmente aislado 0,5 mm² blanco 500 uds.

When terminating stranded copper conductors, a reliable connection is essential. The Cimco 187505 wire end ferrule provides a secure, gas-tight connection that prevents wire splaying and ensures consistent contact in terminal blocks.

Who is it for

Electricians, panel builders, and automation technicians who need to prepare fine-stranded conductors for screw or spring clamp terminals. The white insulation collar identifies the 0.5 mm² cross-section according to DIN 46228 colour coding.

Main features

• Partially insulated design with polypropylene collar for easy insertion and strain relief.
• Tin-plated electrolytic copper tube for excellent conductivity and corrosion resistance.
• Funnel-shaped entry guides individual wire strands smoothly into the barrel.
• Pack of 500 pieces for high-volume wiring tasks.

Specifications

• Wire cross-section: 0.5 mm²
• Insulation colour: White
• Quantity: 500 pieces
• Conductor material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Metal tube length (L1): 8 mm
• Total length (L2): 14 mm
• Inner diameter (d1): 1.0 mm
• Outer diameter (d2): 1.3 mm
• Insulation collar diameter (d3): 2.5 mm
• Temperature resistance: -40°C to +105°C
• Voltage rating: 300V
• Flammability rating: UL 94 V-2
• Standard compliance: DIN 46228 Part 4

Tips

Use a matching crimping tool with a 0.5 mm² die to achieve a perfect hexagonal crimp. The white collar should be fully inserted into the terminal opening to maintain insulation and strain relief.
