Cable adaptador HDMI Digitus AK-330111-020-S

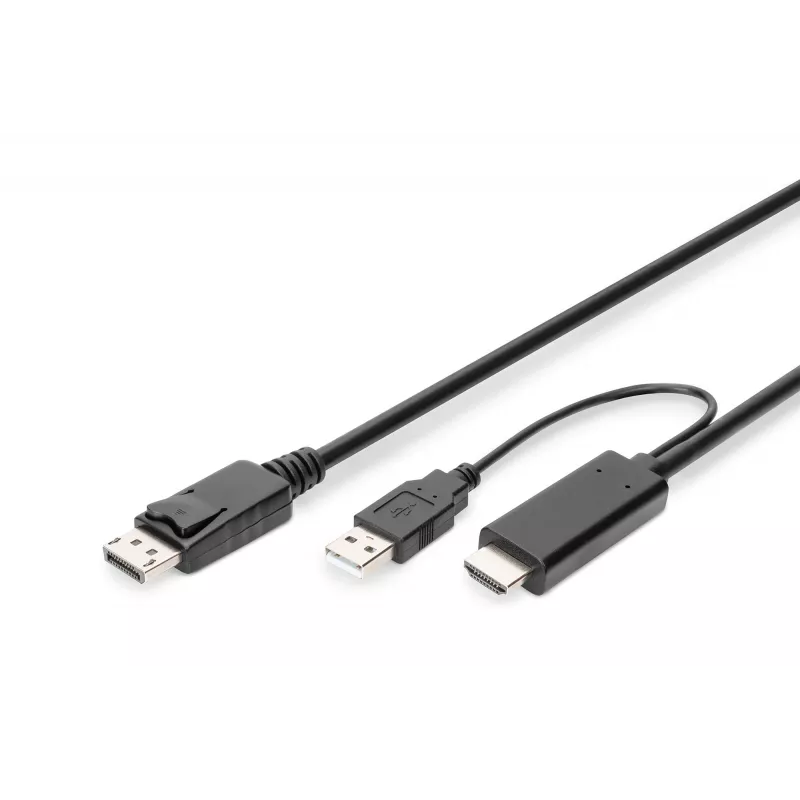

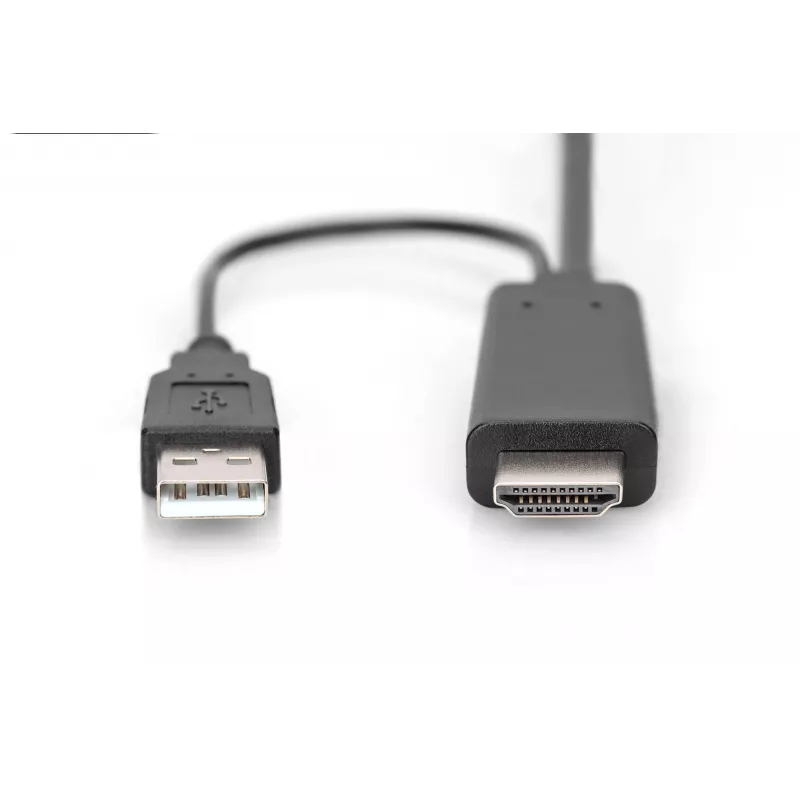

Connect an HDMI output device to a DisplayPort input with the DIGITUS HDMI Adapter Cable AK-330111-020-S. This 2 m cable converts HDMI signals to DisplayPort, allowing a notebook, media player or other HDMI source to drive a DisplayPort monitor while carrying 4K video and multichannel audio. The cable uses an HDMI Type A connector on the source side and a DisplayPort plug plus a USB Type-A power lead on the display side; the USB power is only required if the HDMI source cannot supply sufficient power.

Advantages

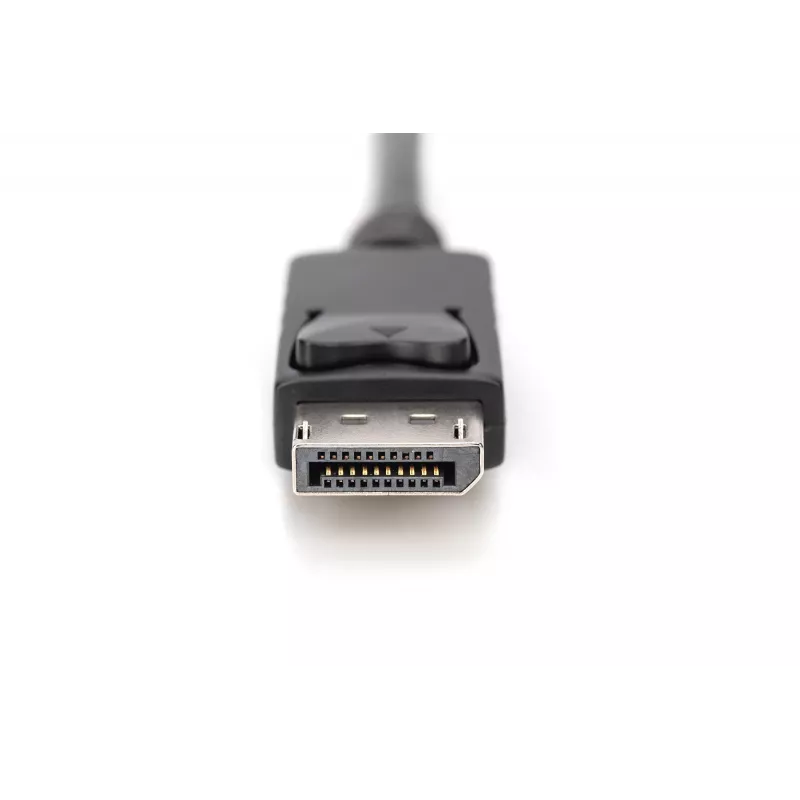

The adapter cable provides Plug-and-Play operation without drivers or an external power adapter in most cases. It supports Ultra HD resolutions up to 3840 x 2160 at 30 Hz and 7.1 channel surround audio. The DisplayPort connector features a locking mechanism to prevent accidental disconnection, while nickel-plated contacts and triple braiding improve signal integrity and shielding.

Suitable for

• Connecting a notebook or HDMI source to a DisplayPort monitor
• Extending or duplicating desktop display for productivity (second screen)
• Transmitting 4K video at up to 30 Hz and multichannel audio
• Home or office setups where DisplayPort input is required

Key specifications

• Model: DIGITUS AK-330111-020-S
• Cable length: 2 m
• Connector 1: HDMI Type A (Standard, input)
• Connector 2: DisplayPort (output) + USB Type-A (power)
• Maximum resolution: Up to 3840 x 2160 (4K) at 30 Hz
• Audio: Supports up to 7.1 channel surround audio
• Colour: Black

How to use

Plug the HDMI Type A connector into the HDMI output of your notebook, media player or other source. Insert the DisplayPort plug into the DisplayPort input of your monitor. If the monitor does not receive sufficient power from the HDMI source, connect the USB Type-A power lead to a USB port on the source or a USB power supply. The adapter is recognized automatically and requires no driver installation.

Recommendations

For best results, use a stable HDMI output that can supply power to the adapter; only connect the USB-A power lead when the display does not receive sufficient power. Ensure the DisplayPort connector is fully inserted and locked to avoid interrupted connections. Use in environments where 4K at 30 Hz meets your display performance needs.
