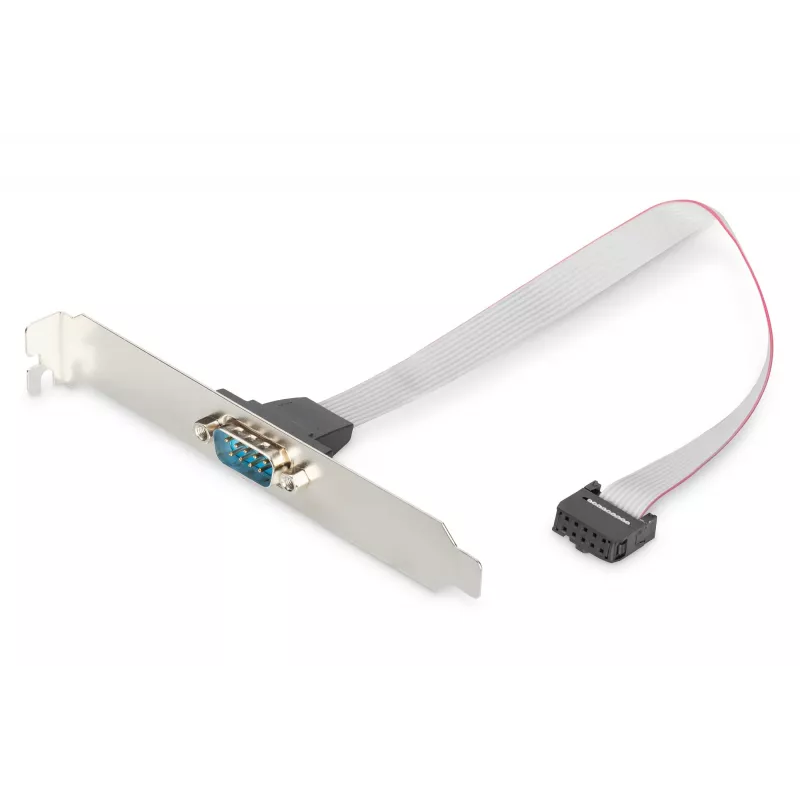

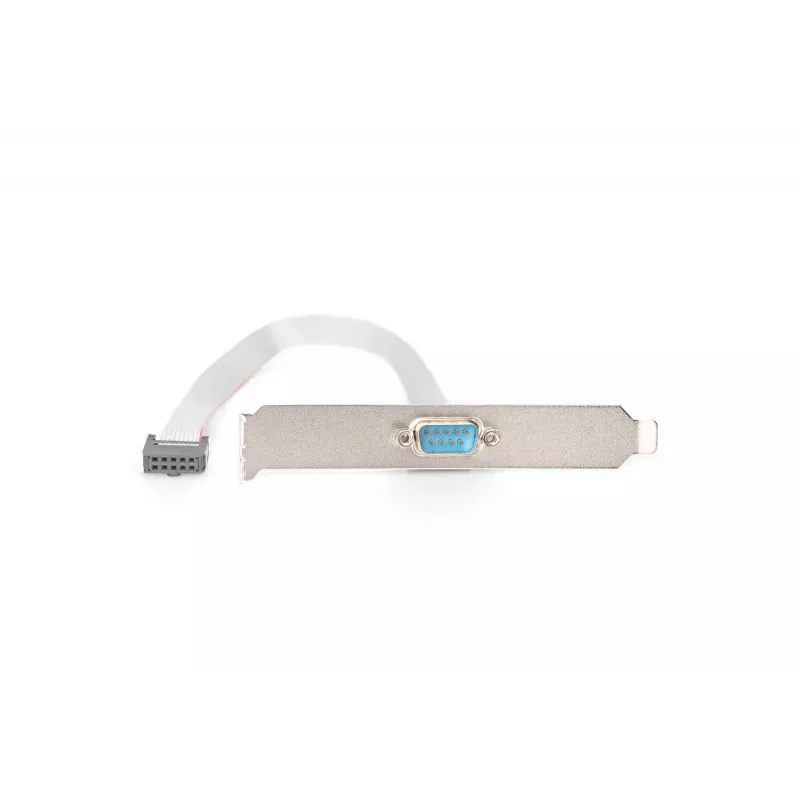

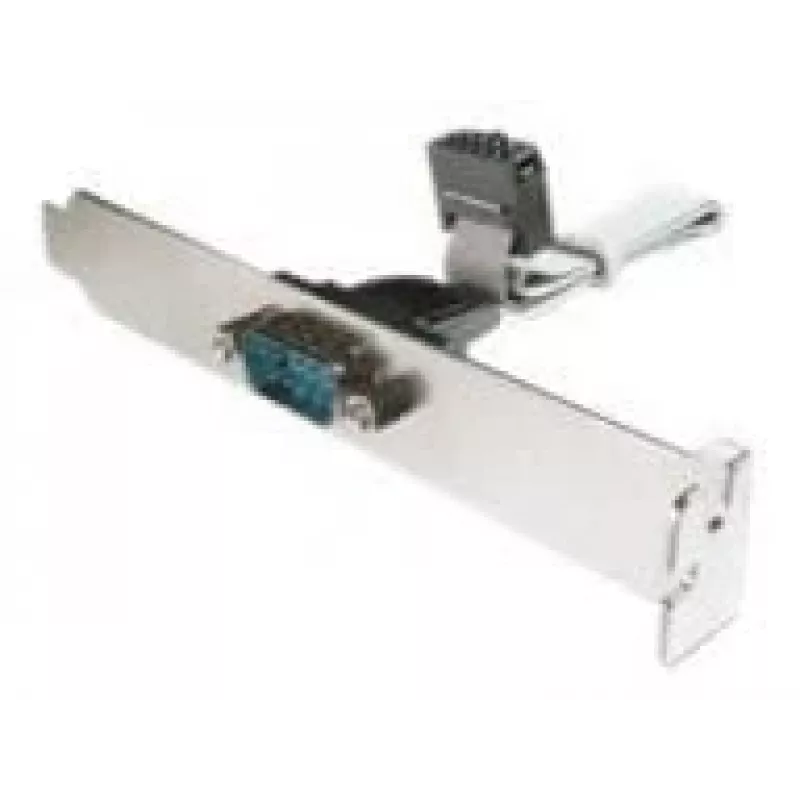

Cable adaptador Serial Slot Bracket Digitus AK-610300-003-E

The Digitus Serial Slot Bracket adapter cable (AK-610300-003-E) provides a compact, wired connection between a D-Sub9 male connector and an IDC 2x5 pin female connector, enabling RS-232 serial communication. With a 0.25 m cable length and beige color, it is designed for internal installation in compatible PC motherboards and fits motherboards in the S1836 and S2054 series.

Advantages

The adapter cable supports standard RS-232 serial signaling and offers a stable wired link between a D-Sub9/M port and an IDC 2x5pin/F header. Its short 0.25 m length reduces internal cable clutter in PC cases, and the compact form factor makes it easy to install and store. The product’s internal design is suited for direct motherboard mounting.

Suitable for

• Connecting serial devices to a PC via motherboard IDC 2x5pin headers
• Installing a D-Sub9 serial port on motherboards from the S1836 and S2054 series
• Internal cabling inside small to mid-size PC cases

Key specifications

• Model: Digitus AK-610300-003-E
• Host interface: IDC (2x5 pin)
• Output interface: Serial (D-Sub9/M)
• Protocol: RS-232
• Length: 0.25 m
• Internal: Yes
• Colour: Beige
• Brand: DIGITUS
• MPN: AK-610300-003-E
• EAN: 4016032301509

How to use

Mount the bracket and route the cable inside the PC case. Connect the IDC 2x5pin/F connector to the corresponding motherboard header, ensuring correct pin alignment. Attach the D-Sub9/M connector to the external serial device or bracket port. Secure the bracket to the case and verify the connection in the operating system or device settings to confirm RS-232 communication.

Recommendations

Use the adapter for internal motherboard connections only and avoid stretching the 0.25 m cable. Check motherboard documentation for header pinout compatibility before installation.
