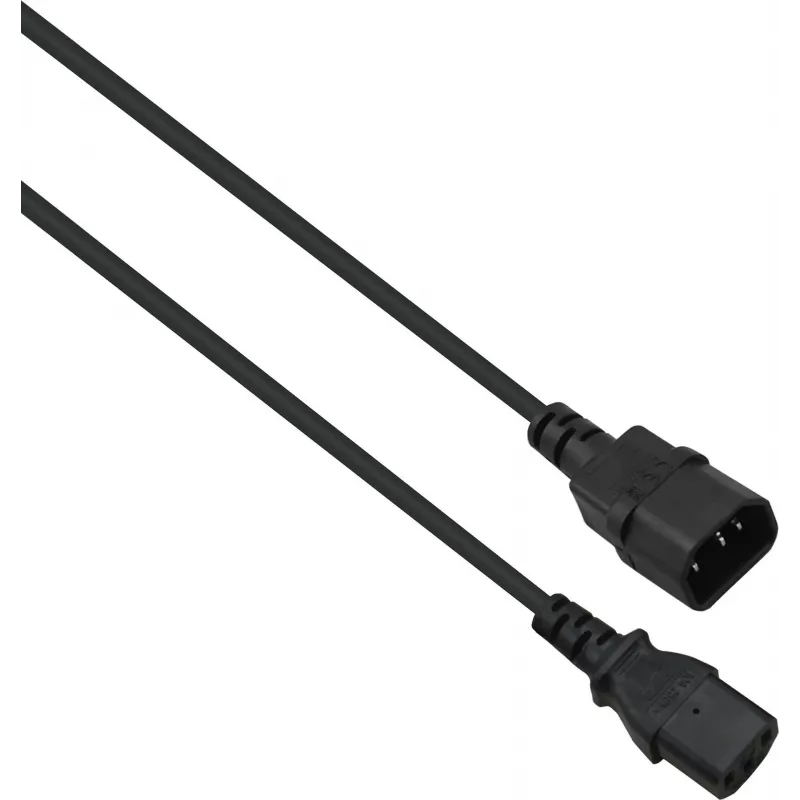

Cable alargador de corriente helos IEC 60320 C13 a C14 250 V 5 m

helos power extension cable with IEC 60320 C13 to C14 connectors, 5 m length, rated 250 V and 10 A. The cable uses an H05VV-F core with 3 x 0.75 mm² conductors and is supplied in black. It is intended to extend power connections between compatible equipment such as computers, servers, UPS units and power distribution devices for worldwide use.

Advantages

The extension cable provides a standardized IEC 60320 C13 to C14 connection for reliable power transmission up to 250 V/10 A. Its H05VV-F construction with 3 x 0.75 mm² conductors ensures consistent conductivity and mechanical flexibility for routing in office and data centre environments. The 5 m length offers extra reach without introducing additional connectors.

Suitable for

• Extending power between computer, server or UPS components
• Connecting devices to rack PDU or power distribution units
• Office workstations and small data centre setups
• Temporary cabling where additional length is required

Key specifications

• Connectors: IEC 60320 C13 (female) to IEC 60320 C14 (male)
• Rated voltage: 250 V
• Rated current: 10 A
• Cable type: H05VV-F, 3 x 0.75 mm²
• Length: 5 m
• Colour: Black
• Certifications/markings: VDE, RoHS2

How to use

Insert the IEC 60320 C14 male connector into the power inlet of the supplying device (for example a PDU or UPS) and plug the IEC 60320 C13 female connector into the equipment requiring power (for example a server or PC). Ensure connectors are fully seated and routed to avoid sharp bends or pinching. Do not exceed the rated voltage and current (250 V, 10 A).

Recommendations

Use the cable indoors in dry, well-ventilated environments. Inspect the cable and connectors before each use for damage. Do not use the cable in applications that require higher current or specialised grounding beyond the specified ratings.
