Cable de carga helos IEC 62196 Type 2 macho a Type 2 hembra 16A 415V 7,5 m

helos power cable IEC 62196 Type 2 M to Type 2 F 16A 415V 7.5 m is a tethered charging cable designed for connection between an electric vehicle and a Type 2 charging point. The cable follows the IEC 62196 standard and provides a fixed-length, flexible solution for AC charging at up to 16 amps and 415 volts. With a 7.5 meter length, it allows comfortable positioning between vehicle and charge point while maintaining a secure, standardized Type 2 connection on both ends.

Advantages

This Type 2 to Type 2 helos cable delivers standardized compatibility with widely used AC charging stations and electric vehicles that accept Type 2 connectors. Rated for 16A and 415V, it supports reliable single-phase or three-phase AC charging where applicable, and the 7.5 m length reduces the need for repositioning the vehicle. The fixed male-to-female configuration provides a ready-to-use tether between vehicle and charger and helps ensure a safe electrical connection that conforms to the IEC 62196 interface.

Suitable for

• Charging electric vehicles with Type 2 inlet or Type 2 charging stations
• Use as a fixed-length tether between vehicle and public or private charging points
• Residential and commercial AC charging setups compatible with 16A, 415V limits

Key specifications

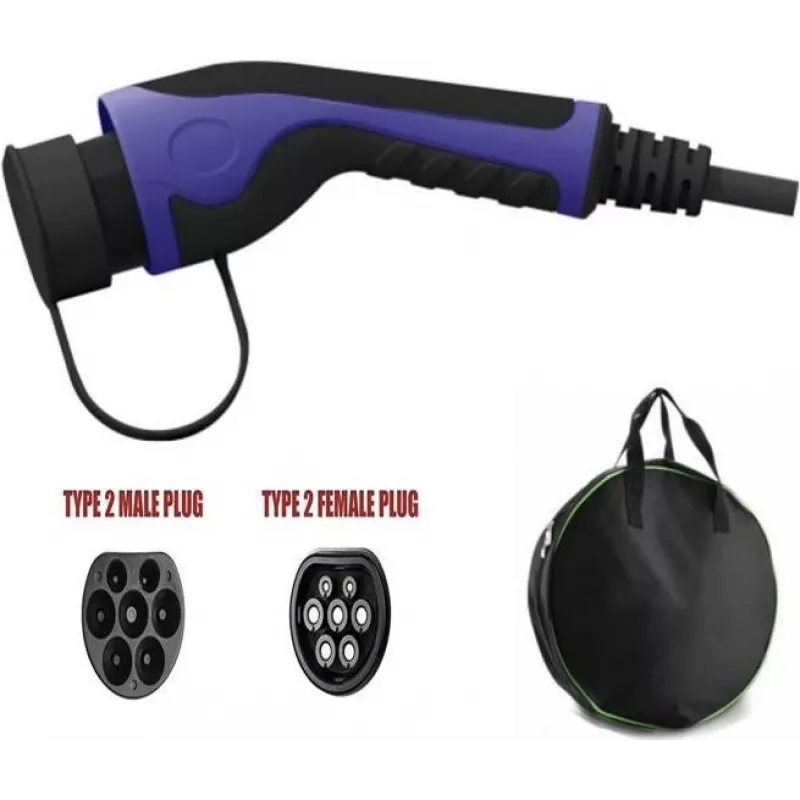

• Connector type: Type 2 male to Type 2 female on both ends
• Rated current: 16 A
• Rated voltage: 415 V
• Cable length: 7.5 m
• Standards: Designed to meet IEC 62196 mechanical and electrical interface requirements

How to use

Before use, visually inspect the cable and connectors for damage and ensure both vehicle and charging point are switched off or in a safe state for connection. Align the Type 2 male plug with the vehicle inlet or charging station socket and insert until it seats firmly; connect the female end to the opposite socket. After connection, start the charging session according to the vehicle or charging station instructions. When charging is complete, stop the session, power down if required, then unplug the connectors and store the cable away from direct sunlight and moisture.

Recommendations

For safe and long-lasting operation, avoid running the cable across sharp edges or high-traffic areas, protect connectors from prolonged exposure to harsh weather, and do not attempt repairs if the cable or connector is damaged; consult qualified service personnel.
