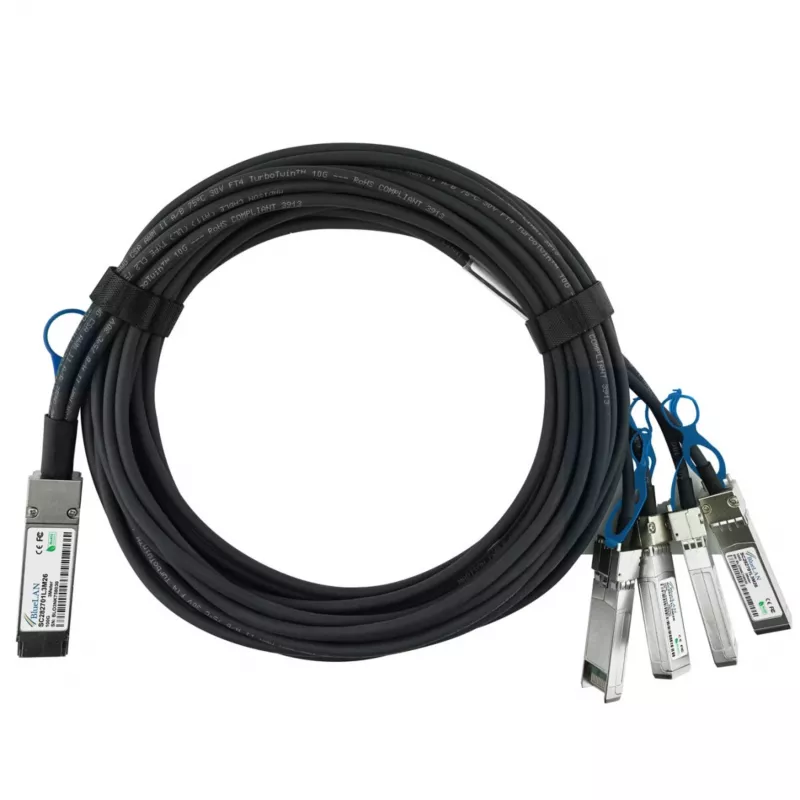

Cable breakout Direct Attach pasivo 100GBASE-CR4 QSFP28 a 4x25GBASE-CR SFP28 BlueOptics NVIDIA 980-9I48T-00C02A BlueLAN SC282701L3M26, 3 metros

The BlueOptics NVIDIA 980-9I48T-00C02A BlueLAN SC282701L3M26 is a high-performance passive Direct Attach Copper (DAC) breakout cable designed for data center and enterprise networking environments. It provides a cost-effective and low-latency solution for connecting 100GbE QSFP28 ports to four 25GbE SFP28 ports, enabling seamless migration to higher bandwidths.

Advantages

This breakout cable offers significant advantages over traditional transceivers and fiber cabling. It consumes zero power (passive design), reduces cable clutter, and provides reliable, low-latency connectivity for high-density deployments. The cable is hot-pluggable and fully compliant with IEEE 802.3bj and 802.3by standards, ensuring interoperability with NVIDIA (formerly Mellanox) equipment and other compatible switches, routers, and servers.

Suitable for

• Data center top-of-rack (ToR) and end-of-row (EoR) switch interconnects
• Server-to-switch connections requiring 100G to 4x25G breakout
• High-performance computing (HPC) clusters
• Storage area networks (SAN) and cloud infrastructure

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector A: 1x QSFP28 (100GBASE-CR4)
• Connector B: 4x SFP28 (25GBASE-CR)
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Length: 3 meters (9.8 feet)
• Passive design – no power consumption
• Hot-pluggable
• Operating Temperature: 0°C to 70°C
• RoHS compliant

Recommendations

For optimal performance, ensure that both the QSFP28 and SFP28 ports support the respective standards (100GBASE-CR4 and 25GBASE-CR). This cable is specifically designed for use with NVIDIA 980-9I48T-00C02A compatible equipment. Always verify compatibility with your hardware before installation.
