Cable coaxial Axing SAK02501 0,25 m negro amarillo

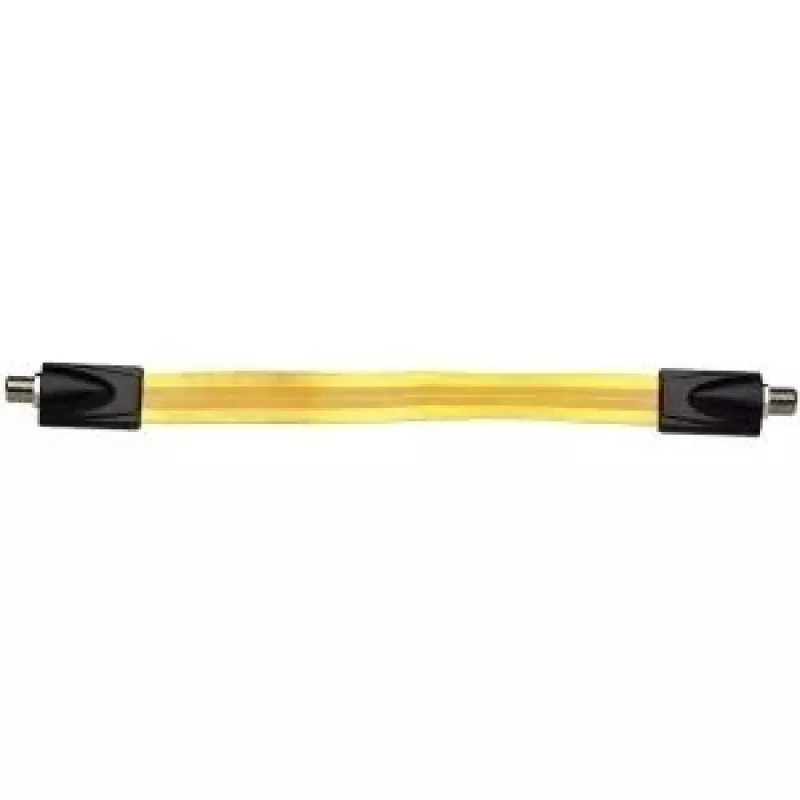

Window leading with F connector female made from a transparent printed-circuit membrane provides a simple way to route a coaxial cable indoors through a closed window or door frame without drilling. The part is 0.25 m long and intended to be used with coaxial leads such as the Axing SAK02501 0.25 m coaxial cable for signal connections in audio and video systems.

Advantages

The transparent printed-circuit membrane fits into window or door frame gaps and keeps the connection weather-protected without permanent modification to the building. Its female F connector allows direct connection to standard male coaxial plugs. The short 0.25 m length minimises exposed cable and is suitable for tight installations where a short indoor feed is required.

Suitable for

Key specifications

How to use

Place the transparent membrane into the gap of a closed window or door frame, ensuring the membrane lies flat and seals the opening around the cable. Connect the male end of the coaxial cable (for example Axing SAK02501) to the female F connector on the membrane and close the window or door to secure the membrane in place. Verify the connector seating and route the remaining cable indoors as needed.

Recommendations

Use the membrane with short, flexible coaxial cables to minimise strain on the connector. Ensure the membrane is positioned so the frame compresses it evenly; avoid sharp bends near the connector. For long-term outdoor exposure, check the seal periodically and replace if the membrane shows signs of wear.
