Cable coaxial DeLOCK 88812 0,2 m MHF III (I-PEX) SMA gris

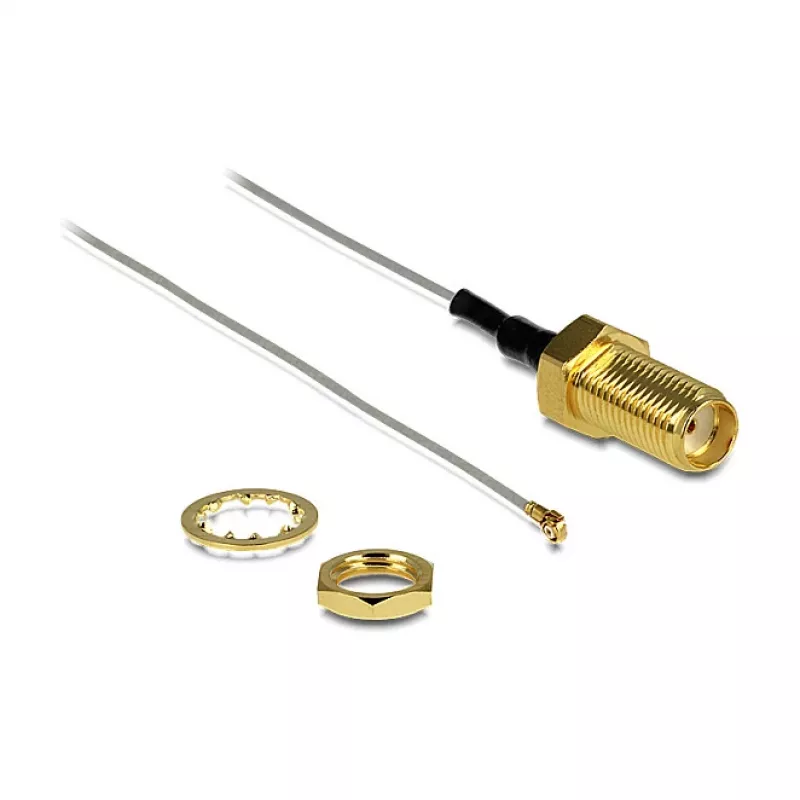

Use this coaxial cable to connect radio frequency components. The DeLOCK 88812 is a 0.2 m grey coax cable with an SMA jack bulkhead and an MHF III (I-PEX) plug compatible with U.FL-LP-040 (Hirose), offering a 50 Ohm impedance and a compact 0.81 mm diameter suitable for tight installations.

Advantages

The cable combines an SMA jack bulkhead with an MHF III (I-PEX) plug for compatibility with common RF connectors, while its 0.2 m length and 10 mm winding length make it convenient for short runs and internal connections. Its 50 Ohm impedance and coaxial construction support stable signal transmission with minimal loss in small electronic and telecommunication setups.

Suitable for

Key specifications

How to use

Align the MHF III (I-PEX) plug with the matching board or module receptacle and press gently until it clicks into place; secure the SMA jack bulkhead to the panel or enclosure and fasten with the appropriate nut. Route the 0.2 m coaxial cable to avoid sharp bends that can damage the 0.81 mm diameter cable and ensure connectors are fully seated before powering the system.

Recommendations

For best performance, use the cable for short internal RF connections and avoid repeated mating cycles of the MHF III plug. Keep the cable free from kinks and protect exposed connectors from dust and mechanical stress.
