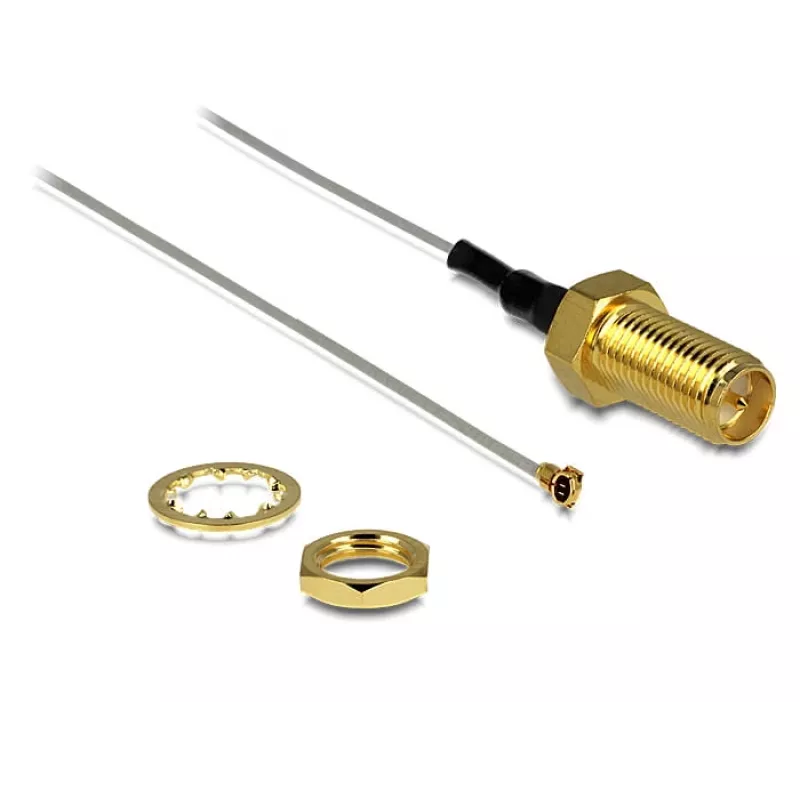

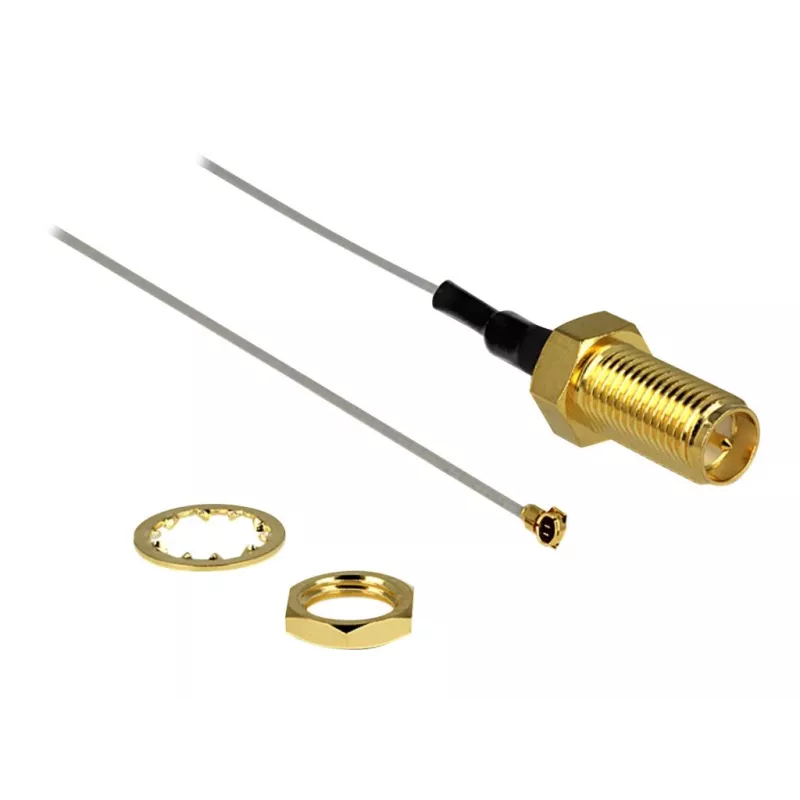

Cable coaxial DeLOCK 88815 0,2 m MHF IV (I-PEX) RP-SMA gris

The DeLOCK 88815 coaxial cable is a 0.2 m connection cable with an RP-SMA jack bulkhead on one end and an MHF IV (I-PEX) compatible plug (HSC MXHP32 / Murata) on the other. It is a 50 Ohm coax cable with a 0.81 mm diameter and grey insulation, intended for RF connections where space is limited and reliable signal transmission is required.

Advantages

The cable combines a compact MHF IV (I-PEX) plug with a standard RP-SMA jack bulkhead, enabling connections between miniature RF modules and devices with RP-SMA interfaces. Its 50 Ohm impedance and coaxial construction support stable high-frequency signal transfer. The short 200 mm length and thin 0.81 mm diameter make it suitable for tight installations while the grey jacket provides a neutral appearance.

Suitable for

• Connecting miniature RF modules (with MHF IV / I-PEX sockets) to external RP-SMA antenna ports
• Internal or compact device installations where space is restricted
• Wi‑Fi, Bluetooth and other RF applications requiring 50 Ohm connections

Key specifications

• Connectors: MHF IV (I-PEX) plug (HSC MXHP32 / Murata) to RP-SMA jack bulkhead
• Cable type: coaxial
• Cable length: 200 mm
• Cable diameter: 0.81 mm
• Winding length: 10 mm
• Impedance: 50 Ohm
• Colour: grey

How to use

Attach the MHF IV (I-PEX) plug to the corresponding socket on the RF module or board, then mount the RP-SMA jack bulkhead to the device panel or connect it to an RP-SMA male connector. Ensure connectors are aligned and push gently until seated; do not apply excessive force. Route the coax carefully to avoid sharp bends and maintain the specified bending radius for reliable performance.

Recommendations

For optimal signal integrity, avoid repeated flexing near the connector ends and keep cable runs as short as practical. Verify connector compatibility (MHF IV / I-PEX and RP-SMA) before installation.
